Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63LSQ15000MEFC36X98CAP ALUM 15000UF 20% 63V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 15000 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 6.05 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 3.976" (101.00mm) | - | Chassis Mount | |
|
|
80LSQ10000MEFC36X98CAP ALUM 10000UF 20% 80V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 10000 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 A @ 120 Hz | 5.5 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 3.976" (101.00mm) | - | Chassis Mount | |
|
25LSQ56000MEFC36X118CAP ALUM 56000UF 20% 25V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 56000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.4 A @ 120 Hz | 9.072 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
|
80LSQ12000MEFC36X118CAP ALUM 12000UF 20% 80V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 12000 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | 5.94 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
|
100LSQ10000MEFC36X118CAP ALUM 10000UF 20% 100V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 10000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.3 A @ 120 Hz | 6.93 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
100LSQ15000MEFC51X83CAP ALUM 15000UF 20% 100V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 15000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.5 A @ 120 Hz | 9.35 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.386" (86.00mm) | - | Chassis Mount | |
|
|
450LSQ1000MEFC51X83CAP ALUM 1000UF 20% 450V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 1000 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.72 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.386" (86.00mm) | - | Chassis Mount | |
|
50LSQ47000MEFC51X98CAP ALUM 47000UF 20% 50V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 47000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.7 A @ 120 Hz | 9.396 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.976" (101.00mm) | - | Chassis Mount | |
|
|
63LSQ33000MEFC51X98CAP ALUM 33000UF 20% 63V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 33000 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.8 A @ 120 Hz | 9.68 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|
80LSQ33000MEFC51X118CAP ALUM 33000UF 20% 80V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 33000 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 120 Hz | 11.55 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
|
100LSQ22000MEFC51X118CAP ALUM 22000UF 20% 100V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 22000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.2 A @ 120 Hz | 11.22 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
100LSQ27000MEFC64X99CAP ALUM 27000UF 20% 100V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 27000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 120 Hz | 12.1 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|
|
450LSQ2200MEFC64X99CAP ALUM 2200UF 20% 450V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 2200 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | 8.496 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|
|
35LSQ150000MEFC64X99CAP ALUM 150000UF 20% 35V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 150000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 120 Hz | 15.768 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|
|
160LSQ10000MEFC64X99CAP ALUM 10000UF 20% 160V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 10000 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.9 A @ 120 Hz | 11.682 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|
|
100LSQ33000MEFC64X119CAP ALUM 33000UF 20% 100V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 33000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.7 A @ 120 Hz | 12.87 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
400LSQ3900MEFC77X101CAP ALUM 3900UF 20% 400V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 3900 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.7 A @ 120 Hz | 12.626 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 4.094" (104.00mm) | - | Chassis Mount | |
|

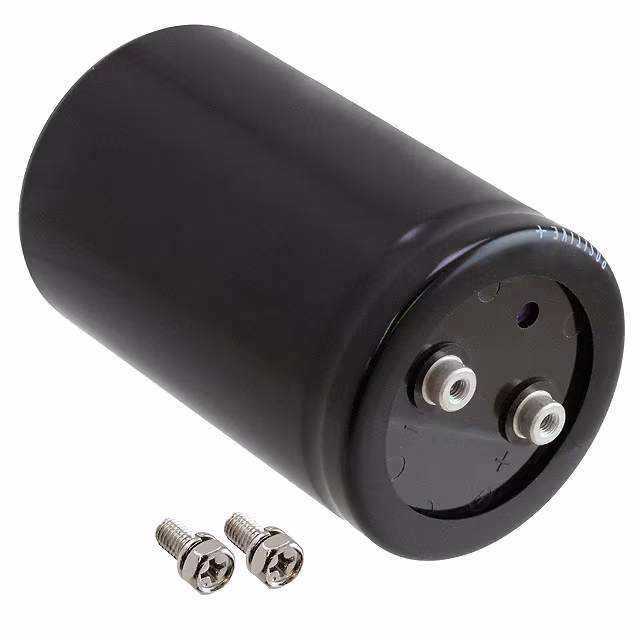

400LSG4700MEFC77X121CAP ALUM 4700UF 20% 400V SCREW |
0 |
|
Datasheet |
LSG | Bulk | Obsolete | 4700 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 12 A @ 120 Hz | 16.8 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
450LSQ3300MEFC77X121CAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 3300 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 120 Hz | 12.39 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
250LSQ10000MEFC77X121CAP ALUM 10000UF 20% 250V SCREW |
0 |
|
Datasheet |
LSQ | Bulk | Obsolete | 10000 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.8 A @ 120 Hz | 13.924 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 4.843" (123.00mm) | - | Chassis Mount |
