Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41560A8688M000CAP ALUM 6800UF 20% 63V SCREW CH |
0 |
|
Datasheet |
B41560 | Bulk | Obsolete | 6800 µF | ±20% | 63 V | 44mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6 A @ 100 Hz | - | 46 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
B41560A9158M000CAP ALUM 1500UF 20% 100V SCREW |
0 |
|
Datasheet |
B41560 | Bulk | Obsolete | 1500 µF | ±20% | 100 V | 104mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.4 A @ 100 Hz | - | 90 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
B41560A9228M000CAP ALUM 2200UF 20% 100V SCREW |
0 |
|
Datasheet |
B41560 | Bulk | Obsolete | 2200 µF | ±20% | 100 V | 70mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.7 A @ 100 Hz | - | 77 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41560A9338M000CAP ALUM 3300UF 20% 100V SCREW |
0 |
|
Datasheet |
B41560 | Bulk | Obsolete | 3300 µF | ±20% | 100 V | 48mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.7 A @ 100 Hz | - | 53 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|

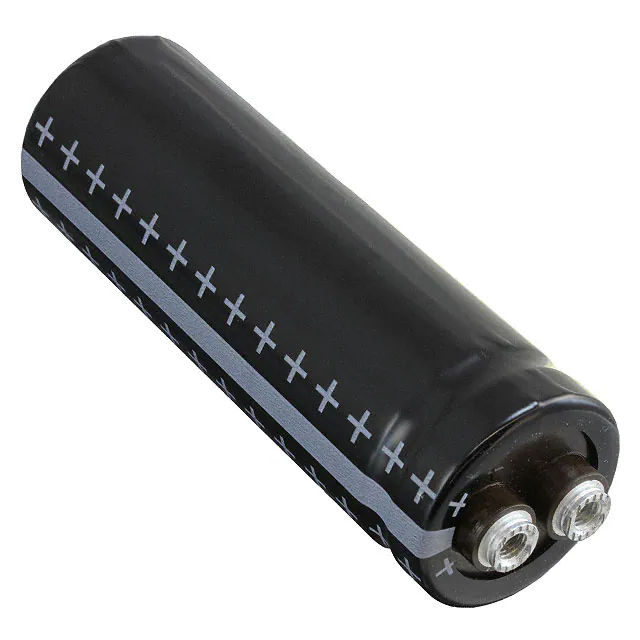

B41560A9478M000CAP ALUM 4700UF 20% 100V SCREW |
0 |
|
Datasheet |
B41560 | Bulk | Obsolete | 4700 µF | ±20% | 100 V | 35mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.5 A @ 100 Hz | - | 39 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
B41570A5688Q000CAP ALUM 6800UF 25V SCREW CHAS M |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 6800 µF | -10%, +30% | 25 V | 32mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 6.4 A @ 100 Hz | - | 27 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
B41570A7688Q000CAP ALUM 6800UF 40V SCREW CHAS M |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 6800 µF | -10%, +30% | 40 V | 28mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 8.4 A @ 100 Hz | - | 17 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570A9158Q000CAP ALUM 1500UF 100V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 1500 µF | -10%, +30% | 100 V | 83mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 4.2 A @ 100 Hz | - | 34 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
|
B41570E4109Q000CAP ALUM 10000UF 16V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 10000 µF | -10%, +30% | 16 V | 38mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 6.2 A @ 100 Hz | - | 26 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
|
B41570E4159Q000CAP ALUM 15000UF 16V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 15000 µF | -10%, +30% | 16 V | 26mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 8.1 A @ 100 Hz | - | 21 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E4229Q000CAP ALUM 22000UF 16V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 22000 µF | -10%, +30% | 16 V | 21mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 10 A @ 100 Hz | - | 18 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E5109Q000CAP ALUM 10000UF 25V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 10000 µF | -10%, +30% | 25 V | 28mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 7.5 A @ 100 Hz | - | 21 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E5159Q000CAP ALUM 15000UF 25V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 15000 µF | -10%, +30% | 25 V | 24mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 9.4 A @ 100 Hz | - | 17 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E5229Q000CAP ALUM 22000UF 25V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 22000 µF | -10%, +30% | 25 V | 20mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 11 A @ 100 Hz | - | 15 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570E5339Q000CAP ALUM 33000UF 25V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 33000 µF | -10%, +30% | 25 V | 13mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 15 A @ 100 Hz | - | 12 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E7109Q000CAP ALUM 10000UF 40V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 10000 µF | -10%, +30% | 40 V | 27mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 9.4 A @ 100 Hz | - | 14 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41570E7159Q000CAP ALUM 15000UF 40V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 15000 µF | -10%, +30% | 40 V | 15mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 11 A @ 100 Hz | - | 15 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570E7229Q000CAP ALUM 22000UF 40V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 22000 µF | -10%, +30% | 40 V | 13mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 15 A @ 100 Hz | - | 13 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
B41570E7478Q000CAP ALUM 4700UF 40V SCREW CHAS M |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 4700 µF | -10%, +30% | 40 V | 33mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 7.2 A @ 100 Hz | - | 24 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
B41570E8109Q000CAP ALUM 10000UF 63V SCREW CHAS |
0 |
|
Datasheet |
B41570 | Bulk | Obsolete | 10000 µF | -10%, +30% | 63 V | 18mOhm @ 100Hz | 10000 Hrs @ 105°C | - | Polar | - | General Purpose | 13 A @ 100 Hz | - | 14 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount |
