Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41456B4229M000CAP ALUM 22000UF 20% 16V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 22000 µF | ±20% | 16 V | 28mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 100 Hz | - | 28 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
|
B41456B4339M000CAP ALUM 33000UF 20% 16V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 33000 µF | ±20% | 16 V | 21mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.3 A @ 100 Hz | - | 17 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
B41456B4689M000CAP ALUM 68000UF 20% 16V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 68000 µF | ±20% | 16 V | 13mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 10 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41456B5229M000CAP ALUM 22000UF 20% 25V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 22000 µF | ±20% | 25 V | 25mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.7 A @ 100 Hz | - | 20 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
B41456B5339M000CAP ALUM 33000UF 20% 25V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 33000 µF | ±20% | 25 V | 19mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 15 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
B41456B5479M000CAP ALUM 47000UF 20% 25V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 47000 µF | ±20% | 25 V | 15mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 12 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|

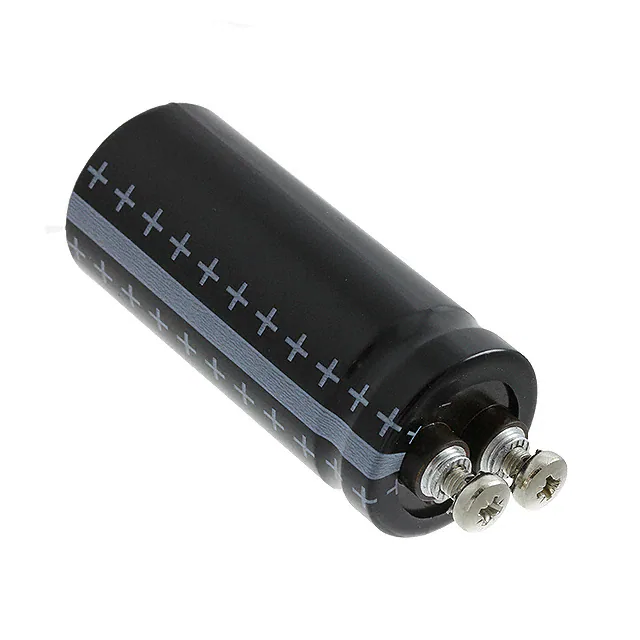

B41456B7159M000CAP ALUM 15000UF 20% 40V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 15000 µF | ±20% | 40 V | 27mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.3 A @ 100 Hz | - | 24 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41456B7339M000CAP ALUM 33000UF 20% 40V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 33000 µF | ±20% | 40 V | 15mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 13 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41456B8159M000CAP ALUM 15000UF 20% 63V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 15000 µF | ±20% | 63 V | 22mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 21 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41456B8478M000CAP ALUM 4700UF 20% 63V SCREW CH |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 4700 µF | ±20% | 63 V | 60mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.9 A @ 100 Hz | - | 58 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
|
B41456B8688M000CAP ALUM 6800UF 20% 63V SCREW CH |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 6800 µF | ±20% | 63 V | 43mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.9 A @ 100 Hz | - | 42 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|

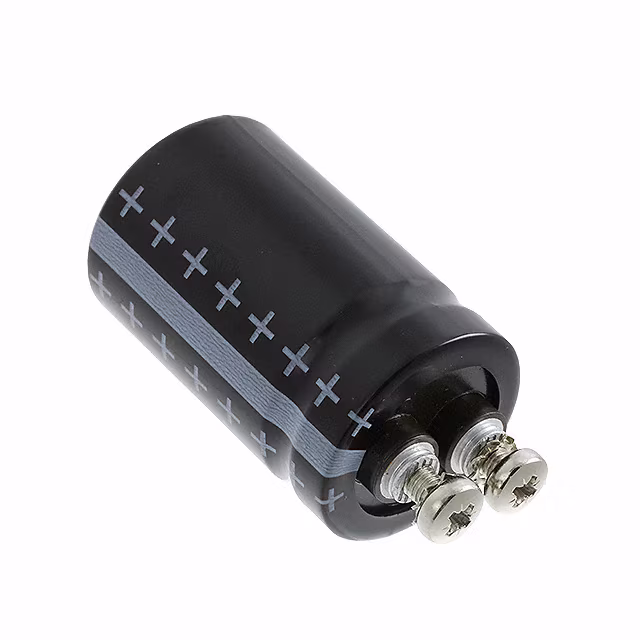

B41456B9228M000CAP ALUM 2200UF 20% 100V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 2200 µF | ±20% | 100 V | 80mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 100 Hz | - | 70 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
|
B41456B9338M000CAP ALUM 3300UF 20% 100V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 3300 µF | ±20% | 100 V | 55mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 100 Hz | - | 48 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41456B9688M000CAP ALUM 6800UF 20% 100V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Obsolete | 6800 µF | ±20% | 100 V | 29mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.7 A @ 100 Hz | - | 25 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
B41458B4229M000CAP ALUM 22000UF 20% 16V SCREW |
0 |
|
Datasheet |
B41458 | Bulk | Obsolete | 22000 µF | ±20% | 16 V | 28mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 100 Hz | - | 23 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
|
B41458B4339M000CAP ALUM 33000UF 20% 16V SCREW |
0 |
|
Datasheet |
B41458 | Bulk | Obsolete | 33000 µF | ±20% | 16 V | 21mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.3 A @ 100 Hz | - | 17 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
|
B41458B4479M000CAP ALUM 47000UF 20% 16V SCREW |
0 |
|
Datasheet |
B41458 | Bulk | Obsolete | 47000 µF | ±20% | 16 V | 16mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 13 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
B41458B4689M000CAP ALUM 68000UF 20% 16V SCREW |
0 |
|
Datasheet |
B41458 | Bulk | Obsolete | 68000 µF | ±20% | 16 V | 13mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 10 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41458B5229M000CAP ALUM 22000UF 20% 25V SCREW |
0 |
|
Datasheet |
B41458 | Bulk | Obsolete | 22000 µF | ±20% | 25 V | 25mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.7 A @ 100 Hz | - | 20 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 2.232" (56.70mm) | - | Chassis Mount | |
|
|
B41458B5339M000CAP ALUM 33000UF 20% 25V SCREW |
0 |
|
Datasheet |
B41458 | Bulk | Obsolete | 33000 µF | ±20% | 25 V | 19mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 15 mOhms | 0.500" (12.70mm) | 1.406" Dia (35.70mm) | 3.217" (81.70mm) | - | Chassis Mount |
