Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UWZ1A470MCL1GSCAP ALUM 47UF 20% 10V SMD |
0 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 46 mA @ 120 Hz | 69 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UWZ1C101MCL1GSCAP ALUM 100UF 20% 16V SMD |
0 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 60 mA @ 120 Hz | 90 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UWZ1C330MCL1GSCAP ALUM 33UF 20% 16V SMD |
0 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 33 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 40 mA @ 120 Hz | 60 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UWZ1E330MCL1GSCAP ALUM 33UF 20% 25V SMD |
0 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 48 mA @ 120 Hz | 72 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

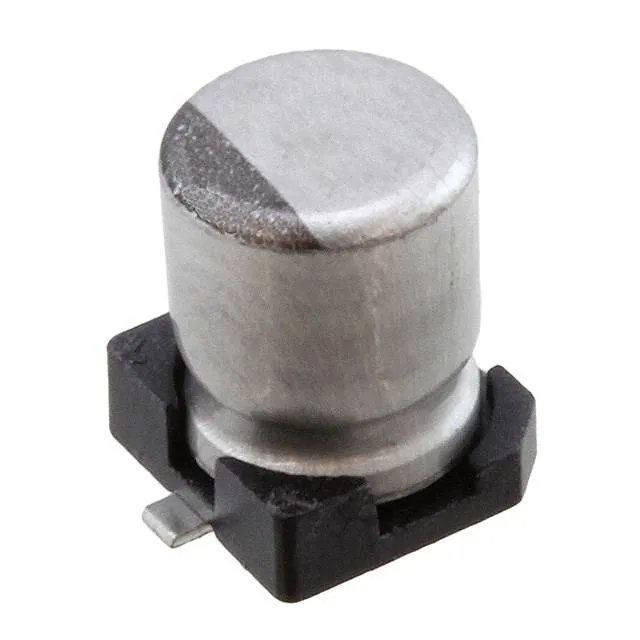

UWZ1H0R1MCL1GBCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | - | 1.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UWZ1H100MCL1GSCAP ALUM 10UF 20% 50V SMD |
0 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UWZ1HR22MCL1GBCAP ALUM 0.22UF 20% 50V SMD |
0 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | - | 3.9 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UWZ1HR33MCL1GBCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | - | 4.8 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UWZ1V220MCL1GSCAP ALUM 22UF 20% 35V SMD |
0 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 42 mA @ 120 Hz | 63 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

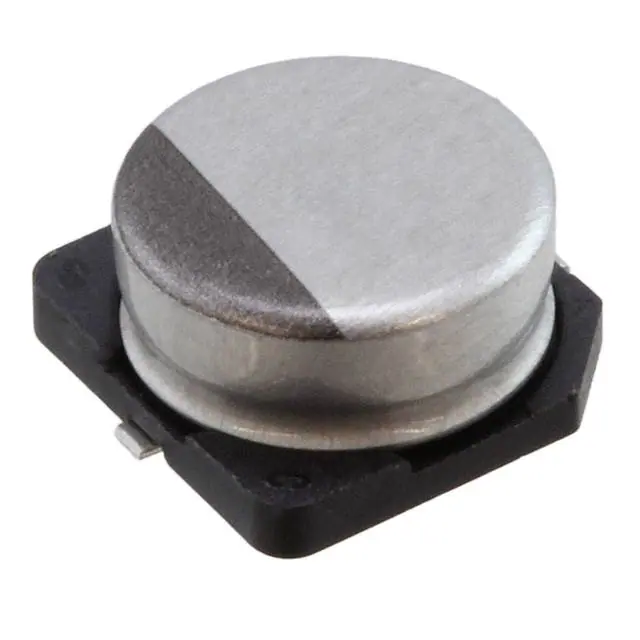

UZD0G101MCL1GBCAP ALUM 100UF 20% 4V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 56 mA @ 120 Hz | 84 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.126" (3.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UZD0G220MCL1GBCAP ALUM 22UF 20% 4V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 20 mA @ 120 Hz | 30 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.126" (3.20mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UZD0G470MCL1GBCAP ALUM 47UF 20% 4V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 33 mA @ 120 Hz | 49.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.126" (3.20mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
UZD0J101MCL1GBCAP ALUM 100UF 20% 6.3V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 70 mA @ 120 Hz | 105 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.126" (3.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UZD0J470MCL1GBCAP ALUM 47UF 20% 6.3V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 45 mA @ 120 Hz | 67.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.126" (3.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UZD1A330MCL1GBCAP ALUM 33UF 20% 10V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 41 mA @ 120 Hz | 61.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.126" (3.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UZD1C100MCL1GBCAP ALUM 10UF 20% 16V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 23 mA @ 120 Hz | 34.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.126" (3.20mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
UZD1C220MCL1GBCAP ALUM 22UF 20% 16V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 37 mA @ 120 Hz | 55.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.126" (3.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UZD1E100MCL1GBCAP ALUM 10UF 20% 25V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 27 mA @ 120 Hz | 40.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.126" (3.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UZD1E2R2MCL1GBCAP ALUM 2.2UF 20% 25V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 7 mA @ 120 Hz | 10.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.126" (3.20mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UZD1E4R7MCL1GBCAP ALUM 4.7UF 20% 25V SMD |
0 |
|
Datasheet |
UZD | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 16 mA @ 120 Hz | 24 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.126" (3.20mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
