Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGY2W560MELZCAP ALUM 56UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LGY | Bulk | Obsolete | 56 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LNX2J272MSEJCAP ALUM 2700UF 20% 630V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Obsolete | 2700 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.6 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.024" (153.00mm) | - | Chassis Mount | |
|
LNX2J332MSEJCAP ALUM 3300UF 20% 630V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Obsolete | 3300 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.7 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
LNX2J392MSEJCAP ALUM 3900UF 20% 630V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Obsolete | 3900 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.3 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
LNX2J472MSEKCAP ALUM 4700UF 20% 630V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Obsolete | 4700 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21.4 A @ 120 Hz | - | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
UBC1A222MNS1MSCAP ALUM 2200UF 20% 10V SMD |
0 |
|
Datasheet |
UBC | Tape & Reel (TR) | Obsolete | 2200 µF | ±20% | 10 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 904.5 mA @ 120 Hz | 1.35 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
UBC1A681MNS1MSCAP ALUM 680UF 20% 10V SMD |
0 |
|
Datasheet |
UBC | Tape & Reel (TR) | Obsolete | 680 µF | ±20% | 10 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 536 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.571" (14.50mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
UCW0J470MNL1GSCAP ALUM 47UF 20% 6.3V SMD |
0 |
|
Datasheet |
UCW | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.287" (7.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

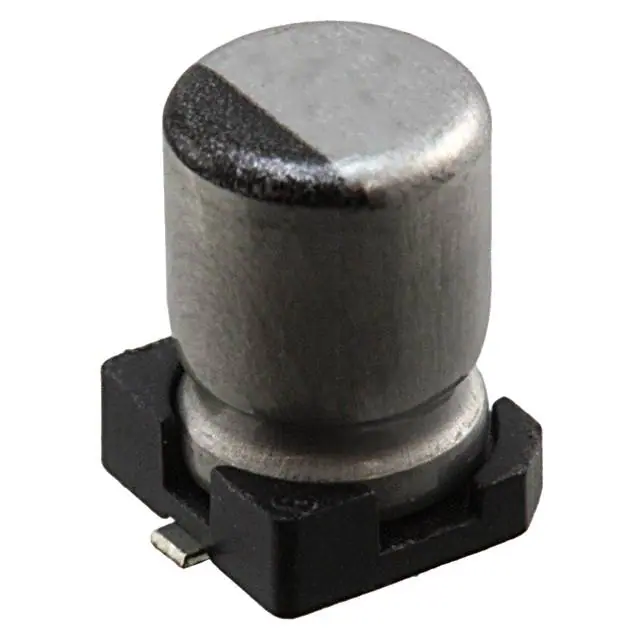

UUA1H0R1MCL1GSCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
UUA | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UUA1HR33MCL1GSCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
UUA | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UUA1HR47MCL1GSCAP ALUM 0.47UF 20% 50V SMD |
0 |
|
Datasheet |
UUA | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|

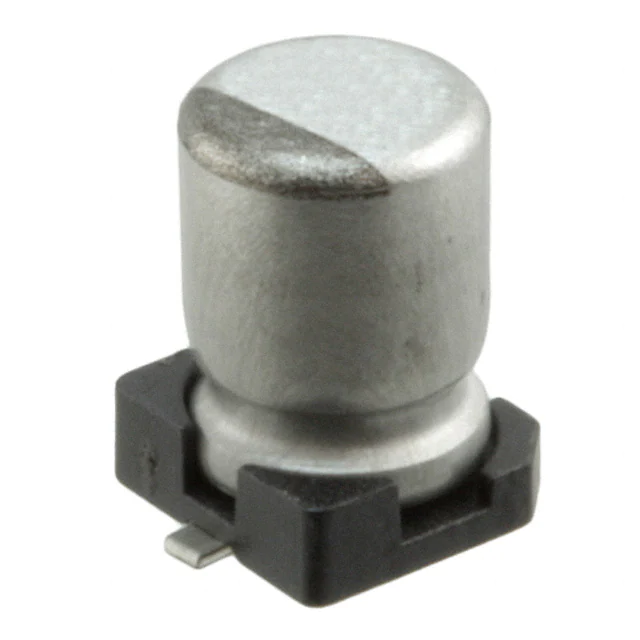

UUL1H0R1MCL1GSCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
UUL | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UUL1HR47MCL1GSCAP ALUM 0.47UF 20% 50V SMD |
0 |
|
Datasheet |
UUL | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UUT1H0R1MCL1GSCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
UUT | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UUT1HR22MCL1GSCAP ALUM 0.22UF 20% 50V SMD |
0 |
|
Datasheet |
UUT | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.9 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UUT1HR33MCL1GSCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
UUT | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 4.8 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UUT1HR47MCL1GSCAP ALUM 0.47UF 20% 50V SMD |
0 |
|
Datasheet |
UUT | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 5.7 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UUX1J470MNL6GSCAP ALUM 47UF 20% 63V SMD |
0 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 47 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 367.4 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UWJ1H0R1MCL1GBCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
UWJ | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 1.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UWJ1HR33MCL1GBCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
UWJ | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 4.2 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
