Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

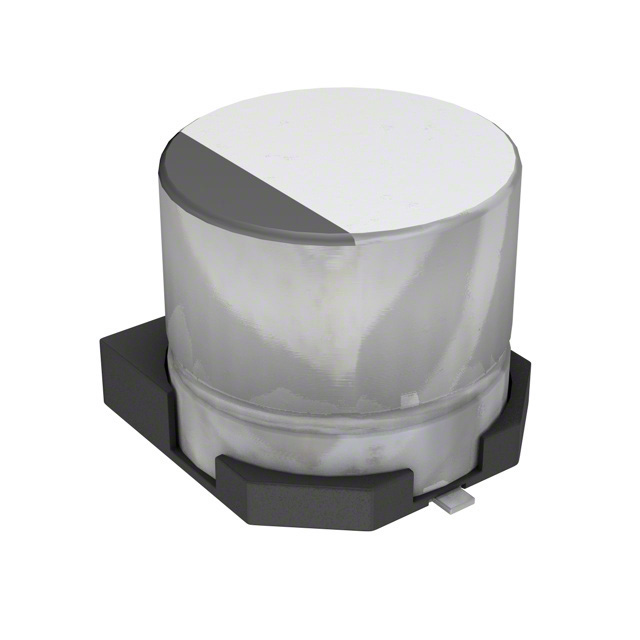

AVS476M16D16B-FCAP ALUM 47UF 20% 16V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 47 µF | ±20% | 16 V | 5.6Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
AVS476M50F24B-FCAP ALUM 47UF 20% 50V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 47 µF | ±20% | 50 V | 4.2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 150 mA @ 120 Hz | 255 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
AVS477M06F24B-FCAP ALUM 470UF 20% 6.3V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 470 µF | ±20% | 6.3 V | 1.2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 380 mA @ 120 Hz | 646 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
AVS477M10F24B-FCAP ALUM 470UF 20% 10V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 470 µF | ±20% | 10 V | 900mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 330 mA @ 120 Hz | 561 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
AVS477M16F24B-FCAP ALUM 470UF 20% 16V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 470 µF | ±20% | 16 V | 700mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 320 mA @ 120 Hz | 544 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UHN0J182MPDCAP ALUM 1800UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UHN | Bulk | Obsolete | 1800 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | 11 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
UHN1C102MPD6CAP ALUM 1000UF 20% 16V RADIAL |
0 |
|
Datasheet |
UHN | Bulk | Obsolete | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | 12 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
556152M050FR2CAP ALUM 1500UF 20% 50V AXIAL TH |
0 |
|
- |
556 | Bulk | Obsolete | 1500 µF | ±20% | 50 V | 180mOhm | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 1.92 A @ 10 kHz | - | - | 0.630" Dia x 1.752" L (16.00mm x 44.50mm) | - | - | Through Hole | |
|
URZ1H470MDD1TACAP ALUM 47UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
URZ | Tape & Box (TB) | Obsolete | 47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 200 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole | |
|
UFW1A333MRDCAP ALUM 33000UF 20% 10V RADIAL |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 33000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.5 A @ 120 Hz | 5.175 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
UFW1C223MRDCAP ALUM 22000UF 20% 16V RADIAL |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 22000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.2 A @ 120 Hz | 4.83 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
UFW1E103MRDCAP ALUM 10000UF 20% 25V RADIAL |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 10000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
UFW1E153MRDCAP ALUM 15000UF 20% 25V RADIAL |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 15000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.8 A @ 120 Hz | 4.37 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
UFW1V153MRDCAP ALUM 15000UF 20% 35V RADIAL |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 15000 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.3 A @ 120 Hz | 4.945 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
UFW1H0R1MDDCAP ALUM 0.1UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.1 mA @ 120 Hz | 2.2 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
UFW1HR22MDDCAP ALUM 0.22UF 20% 50V RADIAL |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.4 mA @ 120 Hz | 4.8 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
UFW1HR33MDDCAP ALUM 0.33UF 20% 50V RADIAL |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.5 mA @ 120 Hz | 7 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
UFW1HR47MDDCAP ALUM 0.47UF 20% 50V RADIAL |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 5 mA @ 120 Hz | 10 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
UFW1H010MDDCAP ALUM 1UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 10 mA @ 120 Hz | 20 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
UFW1H2R2MDDCAP ALUM 2.2UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 23 mA @ 120 Hz | 46 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole |
