Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHA477M25G24B-FCAP ALUM 470UF 20% 25V SMD |
0 |
|
Datasheet |
AHA | Bulk | Discontinued at Digi-Key | 470 µF | ±20% | 25 V | 600mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 360 mA @ 120 Hz | 612 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

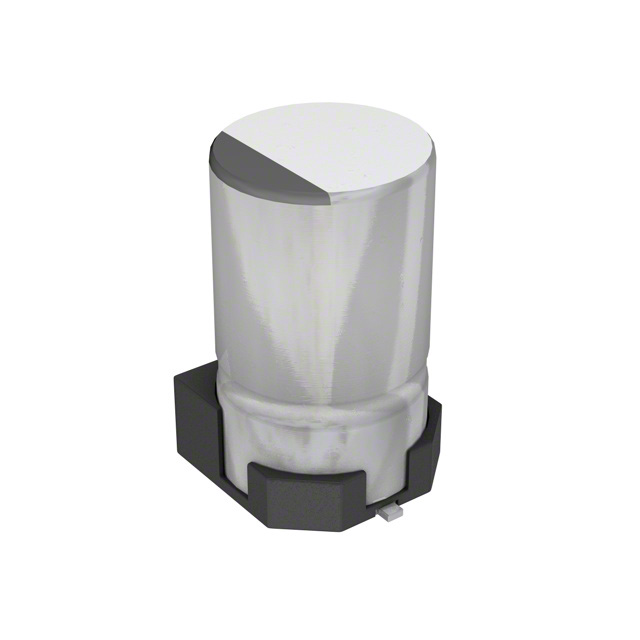

AVS105M50A12T-FCAP ALUM 1UF 20% 50V SMD |
0 |
|
Datasheet |
AVS | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 50 V | 232Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 8 mA @ 120 Hz | 13.6 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
AVS106M16A12T-FCAP ALUM 10UF 20% 16V SMD |
0 |
|
Datasheet |
AVS | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 16 V | 29.9Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 20 mA @ 120 Hz | 34 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
AVS106M16B12B-FCAP ALUM 10UF 20% 16V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 10 µF | ±20% | 16 V | 26.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|

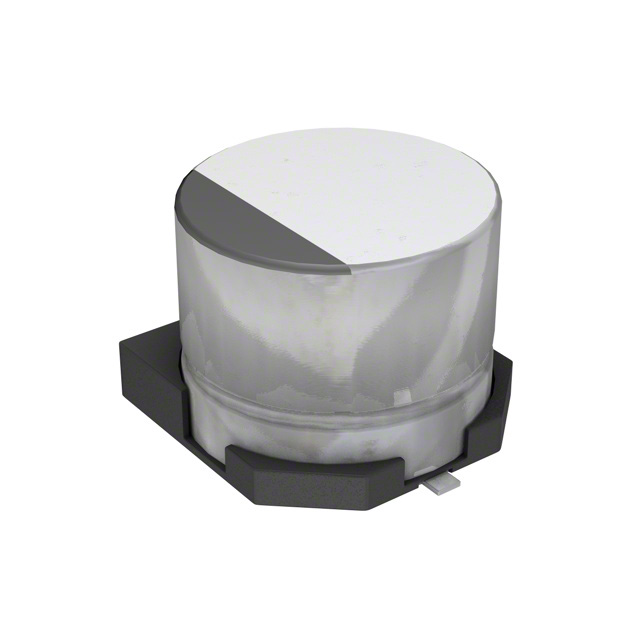

AVS106M2AE16B-FCAP ALUM 10UF 20% 100V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 10 µF | ±20% | 100 V | 29.8Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 50 mA @ 120 Hz | 85 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
AVS106M50C12B-FCAP ALUM 10UF 20% 50V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 10 µF | ±20% | 50 V | 23.2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 27 mA @ 120 Hz | 45.9 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
AVS107M16D16B-FCAP ALUM 100UF 20% 16V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 100 µF | ±20% | 16 V | 4.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | - | 119 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
AVS107M25E16B-FCAP ALUM 100UF 20% 25V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 100 µF | ±20% | 25 V | 2.7Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 91 mA @ 120 Hz | 154.7 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
AVS107M35G24B-FCAP ALUM 100UF 20% 35V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 100 µF | ±20% | 35 V | 2.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 210 mA @ 120 Hz | 357 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
AVS107M50F24B-FCAP ALUM 100UF 20% 50V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 100 µF | ±20% | 50 V | 2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 200 mA @ 120 Hz | 340 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
AVS107M50G24B-FCAP ALUM 100UF 20% 50V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 100 µF | ±20% | 50 V | 2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 250 mA @ 120 Hz | 425 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
AVS107M63G24B-FCAP ALUM 100UF 20% 63V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 100 µF | ±20% | 63 V | 3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 60 mA @ 120 Hz | 102 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
AVS225M50B12B-FCAP ALUM 2.2UF 20% 50V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 2.2 µF | ±20% | 50 V | 90.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
AVS226M35D16B-FCAP ALUM 22UF 20% 35V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 22 µF | ±20% | 35 V | 9.1Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 60 mA @ 120 Hz | 102 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
AVS227M25G24B-FCAP ALUM 220UF 20% 25V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 220 µF | ±20% | 25 V | 1.2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 310 mA @ 120 Hz | 527 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
AVS227M50G24B-FCAP ALUM 220UF 20% 50V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 220 µF | ±20% | 50 V | 900mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 300 mA @ 120 Hz | 510 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
AVS334M50B12B-FCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 0.33 µF | ±20% | 50 V | 603Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 3 mA @ 120 Hz | 5.1 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
AVS337M16G24B-FCAP ALUM 330UF 20% 16V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 330 µF | ±20% | 16 V | 1Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 380 mA @ 120 Hz | 646 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
AVS475M25A12T-FCAP ALUM 4.7UF 20% 25V SMD |
0 |
|
Datasheet |
AVS | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 25 V | 56.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 12 mA @ 120 Hz | 20.4 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
AVS475M35B12B-FCAP ALUM 4.7UF 20% 35V SMD |
0 |
|
Datasheet |
AVS | Bulk | Discontinued at Digi-Key | 4.7 µF | ±20% | 35 V | 42.4Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 22 mA @ 120 Hz | 37.4 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
