Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECE-P2HP122HXCAP ALUM 1200UF 20% 500V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 1200 µF | ±20% | 500 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.35 A @ 120 Hz | 7.49 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
|
ECE-P2HP152HACAP ALUM 1500UF 20% 500V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 1500 µF | ±20% | 500 V | 144mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.65 A @ 120 Hz | 9.31 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.134" (105.00mm) | - | Through Hole | |
|
EET-UQ2E681DFCAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 680 µF | ±20% | 250 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | - | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EET-UQ2G181BFCAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 180 µF | ±20% | 400 V | 1.105Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 10 kHz | - | - | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2G221BFCAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 220 µF | ±20% | 400 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | - | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-UQ2G681EFCAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 680 µF | ±20% | 400 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-UQ2G821EFCAP ALUM 820UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 820 µF | ±20% | 400 V | 243mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.144 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
EET-UQ2S151BACAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 150 µF | ±20% | 420 V | 1.326Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | 1.652 A @ 10 kHz | - | - | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-UQ2S151CACAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 150 µF | ±20% | 420 V | 1.326Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | 1.652 A @ 10 kHz | - | - | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
EET-UQ2S181BACAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 180 µF | ±20% | 420 V | 1.105Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | - | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
EET-UQ2S221DACAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 220 µF | ±20% | 420 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 2.128 A @ 10 kHz | - | - | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
EET-UQ2S271BFCAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | - | - | - | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
EET-UQ2S271CACAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.73 A @ 120 Hz | 2.422 A @ 10 kHz | - | - | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-UQ2S331CACAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 420 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.73 A @ 10 kHz | - | - | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

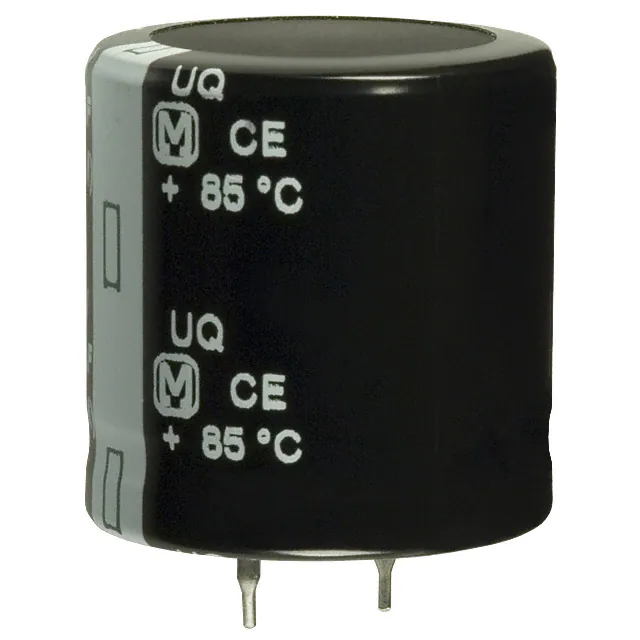

EET-UQ2S331DFCAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | - | - | - | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2S391CACAP ALUM 390UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | - | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EET-UQ2S391DACAP ALUM 390UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | - | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
EET-UQ2S391EACAP ALUM 390UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-UQ2S471DACAP ALUM 470UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 420 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.44 A @ 120 Hz | 3.416 A @ 10 kHz | - | - | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-UQ2S471EACAP ALUM 470UF 20% 420V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 420 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.44 A @ 120 Hz | 3.416 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole |
