Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-HC2W221BACAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 220 µF | ±20% | 450 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

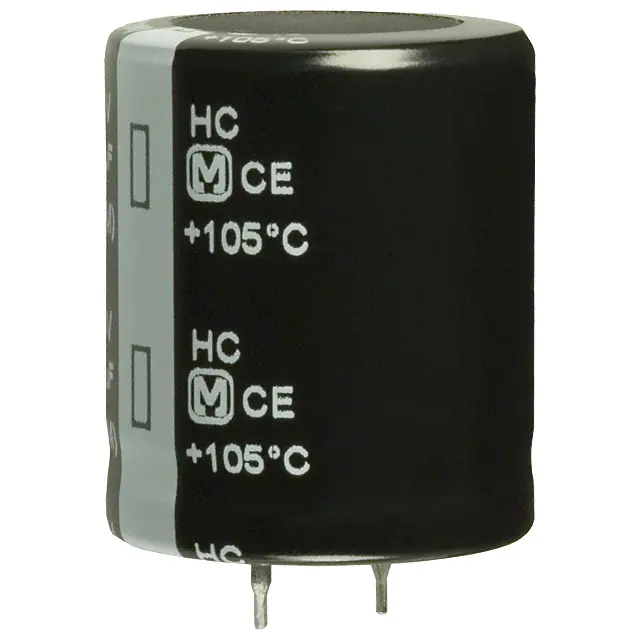

EET-HC2W271DFCAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 270 µF | ±20% | 450 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EET-HC2W331DFCAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EET-HC2W391DFCAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 390 µF | ±20% | 450 V | 425mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.39 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ECE-P1HP333HACAP ALUM 33000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 33000 µF | ±20% | 50 V | 18mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.48 A @ 120 Hz | 12.05 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ECE-P1HP473HACAP ALUM 47000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 47000 µF | ±20% | 50 V | 13mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.54 A @ 120 Hz | 13.27 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 2.480" (63.00mm) | - | Through Hole | |
|
|
ECE-P1HP563HACAP ALUM 56000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 56000 µF | ±20% | 50 V | 12mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.46 A @ 120 Hz | 14.33 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
|
ECE-P1HP683HACAP ALUM 68000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 68000 µF | ±20% | 50 V | 11mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.17 A @ 120 Hz | 15.15 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.622" (92.00mm) | - | Through Hole | |
|
|
ECE-P1HP823HACAP ALUM 82000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 82000 µF | ±20% | 50 V | 11mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.87 A @ 120 Hz | 15.95 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.134" (105.00mm) | - | Through Hole | |
|
|
ECE-P1KP183HACAP ALUM 18000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 18000 µF | ±20% | 80 V | 23mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 A @ 120 Hz | 11.5 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ECE-P1KP223HACAP ALUM 22000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 22000 µF | ±20% | 80 V | 19mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.08 A @ 120 Hz | 12.74 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 2.480" (63.00mm) | - | Through Hole | |
|
|
ECE-P1KP273HACAP ALUM 27000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 27000 µF | ±20% | 80 V | 15mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.33 A @ 120 Hz | 14.18 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
|
ECE-P1KP333HACAP ALUM 33000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 33000 µF | ±20% | 80 V | 14mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.37 A @ 120 Hz | 15.38 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.622" (92.00mm) | - | Through Hole | |
|
|
ECE-P1KP393HACAP ALUM 39000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 39000 µF | ±20% | 80 V | 13mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.34 A @ 120 Hz | 16.49 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.134" (105.00mm) | - | Through Hole | |
|
|
ECE-P2AP103HACAP ALUM 10000UF 20% 100V SNAP |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 10000 µF | ±20% | 100 V | 33mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.82 A @ 120 Hz | 10.14 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ECE-P2AP153HACAP ALUM 15000UF 20% 100V SNAP |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 15000 µF | ±20% | 100 V | 22mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.07 A @ 120 Hz | 11.58 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 2.480" (63.00mm) | - | Through Hole | |
|
|
ECE-P2AP183HACAP ALUM 18000UF 20% 100V SNAP |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 18000 µF | ±20% | 100 V | 18mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 120 Hz | 12.65 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
|
ECE-P2AP223HACAP ALUM 22000UF 20% 100V SNAP |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 22000 µF | ±20% | 100 V | 15mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.76 A @ 120 Hz | 13.52 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.622" (92.00mm) | - | Through Hole | |
|
|
ECE-P2AP273HACAP ALUM 27000UF 20% 100V SNAP |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 27000 µF | ±20% | 100 V | 14mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.53 A @ 120 Hz | 14.41 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.134" (105.00mm) | - | Through Hole | |
|
|
ECE-P2DP562HACAP ALUM 5600UF 20% 200V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 5600 µF | ±20% | 200 V | 38mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.57 A @ 120 Hz | 13.4 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 2.480" (63.00mm) | - | Through Hole |
