Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECE-T2WP681FACAP ALUM 680UF 20% 450V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 680 µF | ±20% | 450 V | 293mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.15 A @ 120 Hz | 4.41 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ECE-T2WP821FACAP ALUM 820UF 20% 450V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 820 µF | ±20% | 450 V | 243mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 5.18 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.480" (63.00mm) | - | Through Hole | |
|
|
ECE-T2WP122FACAP ALUM 1200UF 20% 450V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 1200 µF | ±20% | 450 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.84 A @ 120 Hz | 6.776 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
ECO-S2DB122DACAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 1200 µF | ±20% | 200 V | 193mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 2.622 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
ECO-S2DB391BACAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 390 µF | ±20% | 200 V | 510mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.482 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2DB391CACAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 390 µF | ±20% | 200 V | 510mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.482 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S2DB471BACAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 470 µF | ±20% | 200 V | 423mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.596 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
ECO-S2DB471CACAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 470 µF | ±20% | 200 V | 423mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.596 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
ECO-S2DB561DACAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 560 µF | ±20% | 200 V | 355mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.71 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S2DB821CACAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 820 µF | ±20% | 200 V | 263mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.28 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

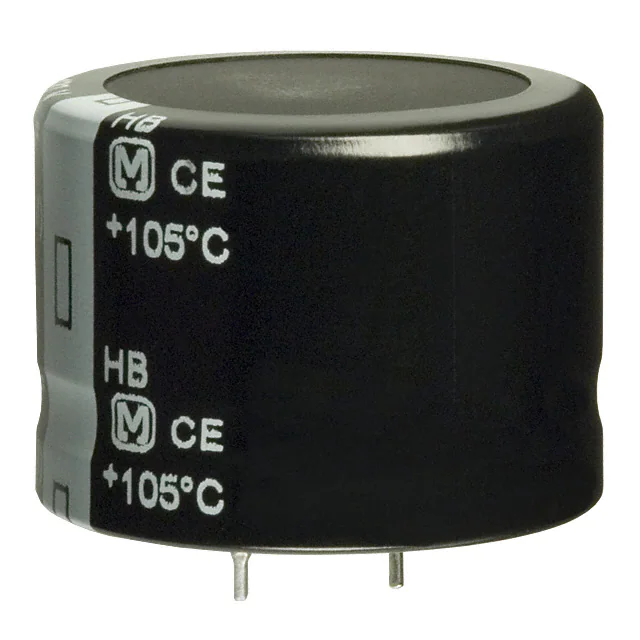

ECO-S2DB821EACAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 820 µF | ±20% | 200 V | 263mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.28 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S2DB102CACAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 1000 µF | ±20% | 200 V | 216mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.508 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ECO-S2DB102EACAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 1000 µF | ±20% | 200 V | 216mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.508 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2DB122EACAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 1200 µF | ±20% | 200 V | 193mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 2.622 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
ECO-S2DB152DACAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 1500 µF | ±20% | 200 V | 155mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.85 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ECO-S2DB152EACAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 1500 µF | ±20% | 200 V | 155mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.85 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
ECO-S2DB182EACAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 1800 µF | ±20% | 200 V | 129mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.078 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2DB222EACAP ALUM 2200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 2200 µF | ±20% | 200 V | 105mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.306 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ECO-S2EB331CACAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 330 µF | ±20% | 250 V | 502mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.368 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
ECO-S2EB391DACAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
TS-HB | Bulk | Obsolete | 390 µF | ±20% | 250 V | 425mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.482 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole |
