Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEG-A2E122FCECAP ALUM 1200UF 20% 250V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 1200 µF | ±20% | 250 V | 184mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.18 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|

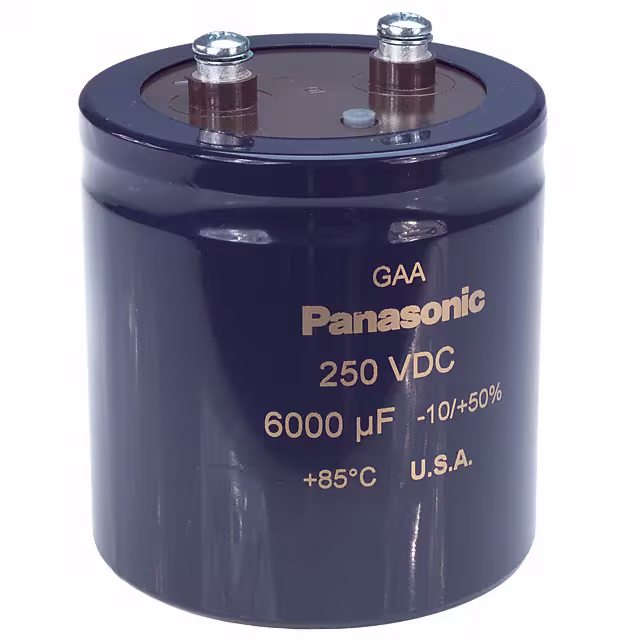

EEG-A2E602HGECAP ALUM 6000UF 20% 250V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 6000 µF | ±20% | 250 V | 36mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.2 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
EEG-A2E103HLECAP ALUM 10000UF 20% 250V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 10000 µF | ±20% | 250 V | 22mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.75 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.625" (117.48mm) | - | Chassis Mount | |
|
EEG-A2V102FEECAP ALUM 1000UF 20% 350V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 1000 µF | ±20% | 350 V | 221mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.11 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 2.625" (66.68mm) | - | Chassis Mount | |
|
EEG-A2V562HLECAP ALUM 5600UF 20% 350V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 5600 µF | ±20% | 350 V | 39mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.06 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.625" (117.48mm) | - | Chassis Mount | |
|
EEG-A2W451FGECAP ALUM 450UF 20% 450V SCREW CH |
0 |
|
- |
AA | Bulk | Obsolete | 450 µF | ±20% | 450 V | 491mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.93 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|

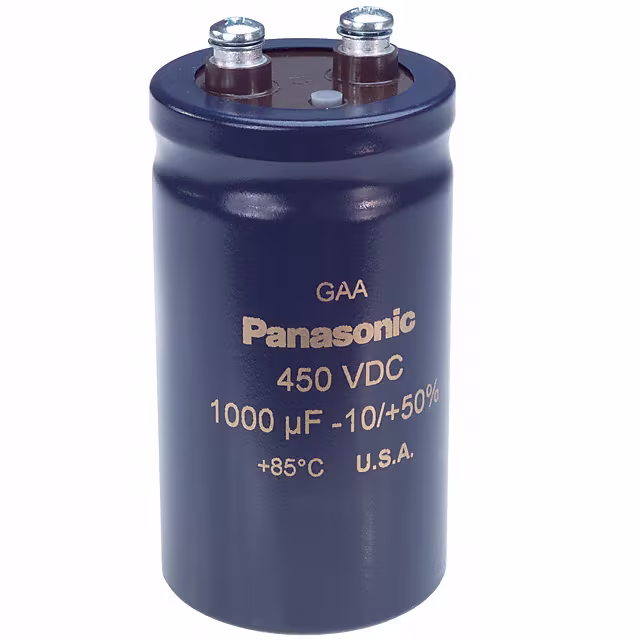

EEG-A2W102FHECAP ALUM 1000UF 20% 450V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 1000 µF | ±20% | 450 V | 221mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.85 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
EEG-A2W182FPECAP ALUM 1800UF 20% 450V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 1800 µF | ±20% | 450 V | 122mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.47 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
EEG-A2W182HPECAP ALUM 1800UF 20% 450V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 1800 µF | ±20% | 450 V | 122mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.46 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
EEG-A2W222GKECAP ALUM 2200UF 20% 450V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 2200 µF | ±20% | 450 V | 100mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.27 A @ 120 Hz | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
EEG-A2W242HNECAP ALUM 2400UF 20% 450V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 2400 µF | ±20% | 450 V | 92mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.74 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.125" (130.18mm) | - | Chassis Mount | |
|
|
EEG-A2W312GPECAP ALUM 3100UF 20% 450V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 3100 µF | ±20% | 450 V | 71mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.18 A @ 120 Hz | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
EEG-A2W362HLECAP ALUM 3600UF 20% 450V SCREW |
0 |
|
- |
AA | Bulk | Obsolete | 3600 µF | ±20% | 450 V | 61mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.07 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.625" (117.48mm) | - | Chassis Mount | |
|
ECE-T1CP683EACAP ALUM 68000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 68000 µF | ±20% | 16 V | 18mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.05 A @ 120 Hz | 10.41 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ECE-T1CP823EACAP ALUM 82000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 82000 µF | ±20% | 16 V | 16mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.02 A @ 120 Hz | 11.52 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.480" (63.00mm) | - | Through Hole | |
|
|
ECE-T1CP104EACAP ALUM 100000UF 20% 16V SNAP |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 100000 µF | ±20% | 16 V | 15mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 120 Hz | 12.65 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
ECE-T1CP104FACAP ALUM 100000UF 20% 16V SNAP |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 100000 µF | ±20% | 16 V | 18mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.36 A @ 120 Hz | 13.06 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.480" (63.00mm) | - | Through Hole | |
|
|
ECE-T1CP124FACAP ALUM 120000UF 20% 16V SNAP |
0 |
|
Datasheet |
T-UP | Bulk | Active | 120000 µF | ±20% | 16 V | 17mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.42 A @ 120 Hz | 14.28 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
|
ECE-T1EP473EACAP ALUM 47000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 47000 µF | ±20% | 25 V | 14mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 120 Hz | 9.2 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ECE-T1EP563EACAP ALUM 56000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 56000 µF | ±20% | 25 V | 15mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.85 A @ 120 Hz | 10.18 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.480" (63.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
