Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210156333E3CAP ALUM 33000UF 20% 25V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 33000 µF | ±20% | 25 V | 19mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | - | 17 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 3.413" (86.70mm) | - | Chassis Mount | |
|
MAL210413102E3CAP ALUM 1000UF 20% 250V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 1000 µF | ±20% | 250 V | 123mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.7 A @ 100 Hz | - | 70 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 3.413" (86.70mm) | - | Chassis Mount | |
|
|
MAL210423102E3CAP ALUM 1000UF 20% 250V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 1000 µF | ±20% | 250 V | 116mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 100 Hz | - | 63 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 4.280" (108.70mm) | - | Chassis Mount | |
|
|
MAL210453102E3CAP ALUM 1000UF 20% 250V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 1000 µF | ±20% | 250 V | 123mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.7 A @ 100 Hz | - | 70 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 3.413" (86.70mm) | - | Chassis Mount | |
|
|
MAL210463102E3CAP ALUM 1000UF 20% 250V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 1000 µF | ±20% | 250 V | 116mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 100 Hz | - | 63 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 4.280" (108.70mm) | - | Chassis Mount | |
|
MAL210616103E3CAP ALUM 10000UF 25V SCREW CHAS |
0 |
|
Datasheet |
106 PED-ST | Bulk | Active | 10000 µF | -10%, +30% | 25 V | 40mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.7 A @ 100 Hz | - | 31 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 3.535" (89.80mm) | - | Chassis Mount | |
|
|
MAL210656103E3CAP ALUM 10000UF 25V SCREW CHAS |
0 |
|
Datasheet |
106 PED-ST | Bulk | Active | 10000 µF | -10%, +30% | 25 V | 40mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.7 A @ 100 Hz | - | 31 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 3.535" (89.80mm) | - | Chassis Mount | |
|
|
DCMC232T400BD2BCAP ALUM 2300UF 400V SCREW CHAS |
0 |
|
Datasheet |
DCMC | Bulk | Active | 2300 µF | -10%, +50% | 400 V | 59.3mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | 9.144 A @ 10 kHz | - | 0.875" (22.23mm) | 2.000" Dia (50.80mm) | 4.687" (119.05mm) | - | Chassis Mount | |
|
|
E32D350HPN154MCE3UCAP ALUM 150MF 20% 35V SCREW CHA |
0 |
|
- |
U32D | Bulk | Active | 150 mF | ±20% | 35 V | 5.2mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 33.12 A @ 120 Hz | 37.0944 A @ 50 kHz | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
ALF20C122FP550CAP ALUM 1200UF 20% 550V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 1200 µF | ±20% | 550 V | 296mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 100 Hz | 8.59 A @ 10 kHz | 258 mOhms | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit | |
|

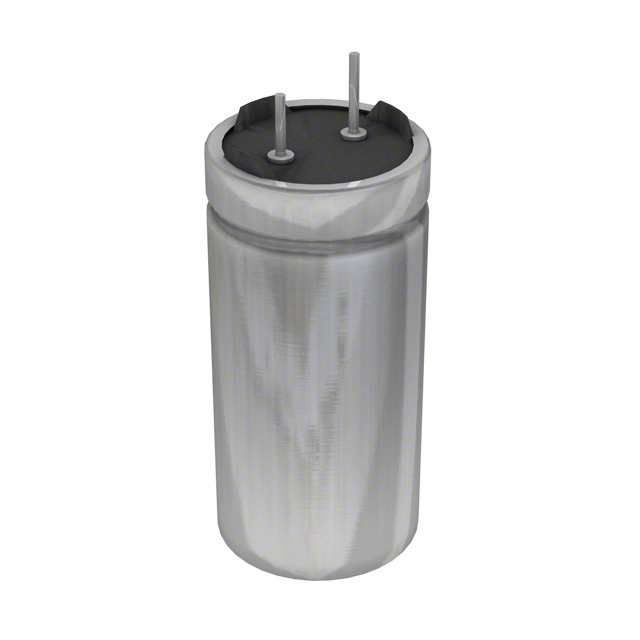

VPR681U075N2CCAP ALUM 680UF 75V RADIAL TH |
0 |
|
Datasheet |
VPR | Bulk | Active | 680 µF | -10%, +75% | 75 V | 69mOhm @ 10kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.42 A @ 10 kHz | - | 0.402" (10.20mm) | 1.000" Dia (25.40mm) | 2.126" (54.00mm) | - | Through Hole | |
|
|
DCM273U015AB2BCAP ALUM 27000UF 15V SCREW CHAS |
0 |
|
Datasheet |
DCM | Bulk | Active | 27000 µF | -10%, +75% | 15 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 3.187" (80.95mm) | - | Chassis Mount | |
|
|
E36D401CJN182MC79UCAP ALUM 1.8MF 20% 400V SCREW CH |
0 |
|
- |
U36D | Bulk | Active | 1.8 mF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.110" (79.00mm) | - | Chassis Mount | |
|
|
E37L401CJS152MC79UCAP ALUM 1.5MF 20% 400V SCREW |
0 |
|
- |
U37L | Bulk | Active | 1.5 mF | ±20% | 400 V | - | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.150" (80.00mm) | - | Chassis, Stud Mount | |
|
672D786H100DT5JCAP ALUM 78UF 100V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 78 µF | - | 100 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.417" (36.00mm) | - | Through Hole | |
|
|
600D226F050DD4E3CAP ALUM 22UF 50V AXIAL TH |
0 |
|
Datasheet |
600D | Tray | Active | 22 µF | -10%, +50% | 50 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.375" Dia x 0.937" L (9.52mm x 23.80mm) | - | - | Through Hole | |
|
MAL205017223E3CAP ALUM 22000UF 40V SOLDER LUG |
0 |
|
Datasheet |
050 PED-PW | Tape & Box (TB) | Active | 22000 µF | -10%, +30% | 40 V | 18mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | - | 16 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|
MAL205057223E3CAP ALUM 22000UF 40V RADIAL TH |
0 |
|
Datasheet |
050 PED-PW | Tape & Box (TB) | Active | 22000 µF | -10%, +30% | 40 V | 18mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | - | 16 mOhms | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 4.134" (105.00mm) | - | Through Hole | |
|
THA232M040AA0CCAP ALUM 2300UF 20% 40V FLTPCK |
0 |
|
Datasheet |
THA | Bulk | Active | 2300 µF | ±20% | 40 V | 120mOhm @ 120Hz | 5000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.04 A @ 20 kHz | - | 0.394" (10.00mm) | 1.433" L x 0.953" W (36.40mm x 24.20mm) | 0.335" (8.50mm) | - | Through Hole | |
|
|
ST800V360J032CAP ALUM 360V POLAR |
0 |
|
- |
ST | Bulk | Active | 80 µF | -10%, +20% | 360 V | 1.15Ohm @ 120Hz | - | -40°C ~ 55°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
