Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS112U150R2CCAP ALUM 1100UF 150V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 1100 µF | -10%, +75% | 150 V | 102mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.16 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
|
CGS133U025R4CCAP ALUM 13000UF 25V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 13000 µF | -10%, +75% | 25 V | 82mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 5.07 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
CGS163U025R4CCAP ALUM 16000UF 25V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 16000 µF | -10%, +75% | 25 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.5 A @ 120 Hz | 11.05 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
MAL210126473E3CAP ALUM 47000UF 20% 25V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 47000 µF | ±20% | 25 V | 12mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.8 A @ 100 Hz | - | 10 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 3.496" (88.80mm) | - | Chassis Mount | |
|
|
MAL210166473E3CAP ALUM 47000UF 20% 25V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 47000 µF | ±20% | 25 V | 12mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.8 A @ 100 Hz | - | 10 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 3.496" (88.80mm) | - | Chassis Mount | |
|
E32D800LPN183MD79UCAP ALUM 18MF 20% 80V SCREW CHAS |
0 |
|
- |
U32D | Bulk | Active | 18 mF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.150" (80.00mm) | - | Chassis Mount | |
|
|
E36D451HPN162MC79UCAP ALUM 1.6MF 20% 450V SCREW CH |
0 |
|
- |
U36D | Bulk | Active | 1.6 mF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.110" (79.00mm) | - | Chassis Mount | |
|

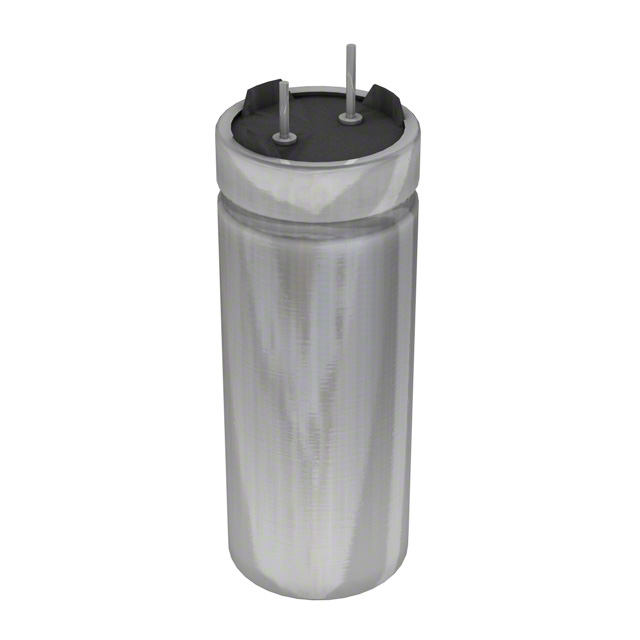

VPR222U040N2LCAP ALUM 2200UF 40V RADIAL TH |
0 |
|
Datasheet |
VPR | Bulk | Active | 2200 µF | -10%, +75% | 40 V | 17mOhm @ 10kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 4.732 A @ 10 kHz | - | 0.402" (10.20mm) | 1.000" Dia (25.40mm) | 2.626" (66.70mm) | - | Through Hole | |
|
MAL205014683E3CAP ALUM 68000UF 10V SOLDER LUG |
0 |
|
Datasheet |
050 PED-PW | Tape & Box (TB) | Active | 68000 µF | -10%, +30% | 10 V | 15mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.2 A @ 100 Hz | - | 14 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 4.016" (102.00mm) | - | Chassis Mount | |
|
MAL205054683E3CAP ALUM 68000UF 10V RADIAL TH |
0 |
|
Datasheet |
050 PED-PW | Tape & Box (TB) | Active | 68000 µF | -10%, +30% | 10 V | 15mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.2 A @ 100 Hz | - | 14 mOhms | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 4.134" (105.00mm) | - | Through Hole | |
|
|
MAL205157333E3CAP ALUM 33000UF 20% 40V RADIAL |
0 |
|
Datasheet |
051 PEC-PW | Tape & Box (TB) | Active | 33000 µF | ±20% | 40 V | 28mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.8 A @ 100 Hz | - | 21 mOhms | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 2.953" (75.00mm) | - | Through Hole | |
|
MAL209624102E3CAP ALUM 1000UF 20% 420V SNAP TH |
0 |
|
Datasheet |
096 PLL-4TSI | Tape & Box (TB) | Active | 1000 µF | ±20% | 420 V | 214mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.1 A @ 100 Hz | - | 64 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
|
MAL209674102E3CAP ALUM 1000UF 20% 420V RADIAL |
0 |
|
Datasheet |
096 PLL-4TSI | Tape & Box (TB) | Active | 1000 µF | ±20% | 420 V | 213mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.1 A @ 100 Hz | - | 64 mOhms | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 2.559" (65.00mm) | - | Through Hole | |
|
|
E36D250LPN543UDB7UCAP ALUM 54MF 25V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 54 mF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|
|
E32D750HPN243MDB7UCAP ALUM 24MF 20% 75V SCREW CHAS |
0 |
|
- |
U32D | Bulk | Active | 24 mF | ±20% | 75 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|
|
E36D201LPN292TCE3UCAP ALUM 2.9MF 200V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 2.9 mF | -10%, +50% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
MAL210213102E3CAP ALUM 1000UF 20% 250V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 1000 µF | ±20% | 250 V | 128mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.4 A @ 100 Hz | - | 82 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 3.413" (86.70mm) | - | Chassis Mount | |
|
|
MAL210253102E3CAP ALUM 1000UF 20% 250V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 1000 µF | ±20% | 250 V | 128mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.4 A @ 100 Hz | - | 82 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 3.413" (86.70mm) | - | Chassis Mount | |
|
ALF40C122KP500CAP ALUM 1200UF 20% 500V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 1200 µF | ±20% | 500 V | 190mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.27 A @ 100 Hz | 11 A @ 10 kHz | 160 mOhms | 0.886" (22.50mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit | |
|
|
ALS41A152KF350CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
ALS41 | Box | Active | 1.5 mF | ±20% | 350 V | 75mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.8 A @ 100 Hz | 12.5 A @ 10 kHz | 52 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
