Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEA1213101M063RCAP ALUM 100UF 20% 63V SMD |
196 |
|
Datasheet |
AEA | Tape & Reel (TR) | Active | 100 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 800 mA @ 100 kHz | 160 mOhms | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
UCD1K331MNS1MSCAP ALUM 80V POLAR |
125 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 330 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 396.5 mA @ 120 Hz | 793 mA @ 100 kHz | 170 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
MAL215097502E3CAP ALUM 680UF 20% 16V SMD |
1,250 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 680 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 100 Hz | - | 100 mOhms | - | 0.394" Dia (10.00mm) | 0.563" (14.30mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount | |
|
|
MAL215097402E3CAP ALUM 1000UF 20% 10V SMD |
1,195 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 100 Hz | - | 100 mOhms | - | 0.394" Dia (10.00mm) | 0.563" (14.30mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount | |
|
EGXF350ELL302MU35SCAP ALUM 3000UF 20% 35V RADIAL |
1,000 |
|
Datasheet |
GXF | Bulk | Active | 3000 µF | ±20% | 35 V | 18mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.573 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.437" (36.50mm) | - | Through Hole | |
|
|
REF1625682M006BCAP ALUM 6.8MF 20% 6.3V RADIAL |
500 |
|
Datasheet |
REF | Bulk | Active | 6.8 mF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9835 A @ 120 Hz | 3.51 A @ 100 kHz | 15 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKZN350ELL392ML40SCAP ALUM 3900UF 20% 35V RADIAL |
480 |
|
Datasheet |
KZN | Bulk | Active | 3900 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.435 A @ 120 Hz | 4.58 A @ 100 kHz | 13 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
UEP1H221MHD1TOCAP ALUM 220UF 20% 50V RADIAL TH |
475 |
|
Datasheet |
UEP | Cut Tape (CT) | Not For New Designs | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UHW1C562MHD1TNCAP ALUM 5600UF 20% 16V RADIAL |
249 |
|
Datasheet |
UHW | Cut Tape (CT) | Active | 5600 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.238 A @ 120 Hz | 3.81 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
860131178006CAP ALUM 22UF 20% 250V RADIAL TH |
141 |
|
Datasheet |
WCAP-ATET | Cut Tape (CT) | Active | 22 µF | ±20% | 250 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 221.85 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
UUN1J101MNJ1MSCAP ALUM 100UF 20% 63V SMD |
125 |
|
Datasheet |
UUN | Tape & Reel (TR) | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 270 mA @ 120 Hz | 405 mA @ 10 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
|
UEP2A101MHD1TNCAP ALUM 100UF 20% 100V RADIAL |
123 |
|
Datasheet |
UEP | Cut Tape (CT) | Not For New Designs | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 300 mA @ 120 Hz | 450 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EKHF451ELL390MJ35SCAP ALUM 39UF 20% 450V RADIAL TH |
2,000 |
|
Datasheet |
KHF | Bulk | Active | 39 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 385 mA @ 120 Hz | 693 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

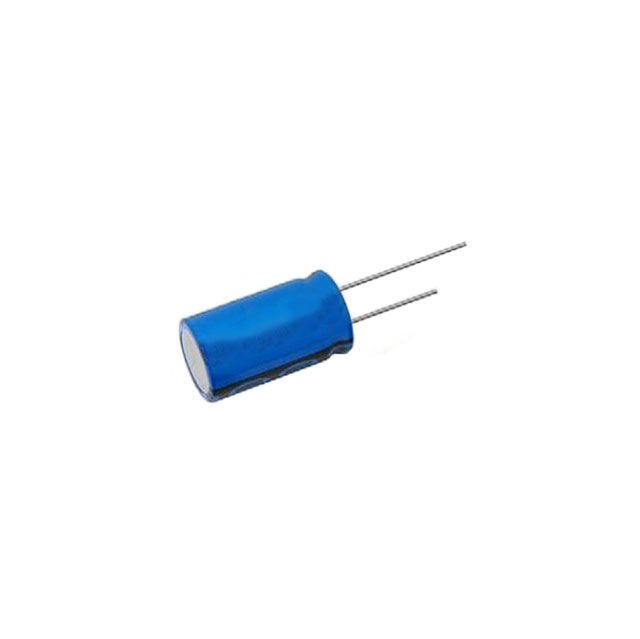

MAL219056102E3CAP ALUM 1000UF 20% 25V RADIAL |
1,296 |
|
Datasheet |
190 RTL | Bulk | Active | 1000 µF | ±20% | 25 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.232 A @ 100 Hz | 1.76 A @ 100 kHz | 38 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EGXF351ELL470MK30SCAP ALUM 47UF 20% 350V RADIAL TH |
1,000 |
|
Datasheet |
GXF | Bulk | Active | 47 µF | ±20% | 350 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 423.5 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
|
|
EGXF250ELL512MU35SCAP ALUM 5100UF 20% 25V RADIAL |
950 |
|
Datasheet |
GXF | Bulk | Active | 5100 µF | ±20% | 25 V | 18mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.372 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.437" (36.50mm) | - | Through Hole | |
|
|
EGXF500ELL152MU35SCAP ALUM 1500UF 20% 50V RADIAL |
815 |
|
Datasheet |
GXF | Bulk | Active | 1500 µF | ±20% | 50 V | 23mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.896 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.437" (36.50mm) | - | Through Hole | |
|
|
200BXG150MEFC16X25CAP ALUM 200V POLAR |
600 |
|
Datasheet |
BXG | Bulk | Active | 150 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 855 mA @ 120 Hz | 1.9 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EGXF201ELL750MU20SCAP ALUM 75UF 20% 200V RADIAL TH |
498 |
|
Datasheet |
GXF | Bulk | Active | 75 µF | ±20% | 200 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 469 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EKMQ161ELL471MM40SCAP ALUM 470UF 20% 160V RADIAL |
376 |
|
Datasheet |
KMQ | Bulk | Active | 470 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 855 mA @ 120 Hz | 1.2825 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
