Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

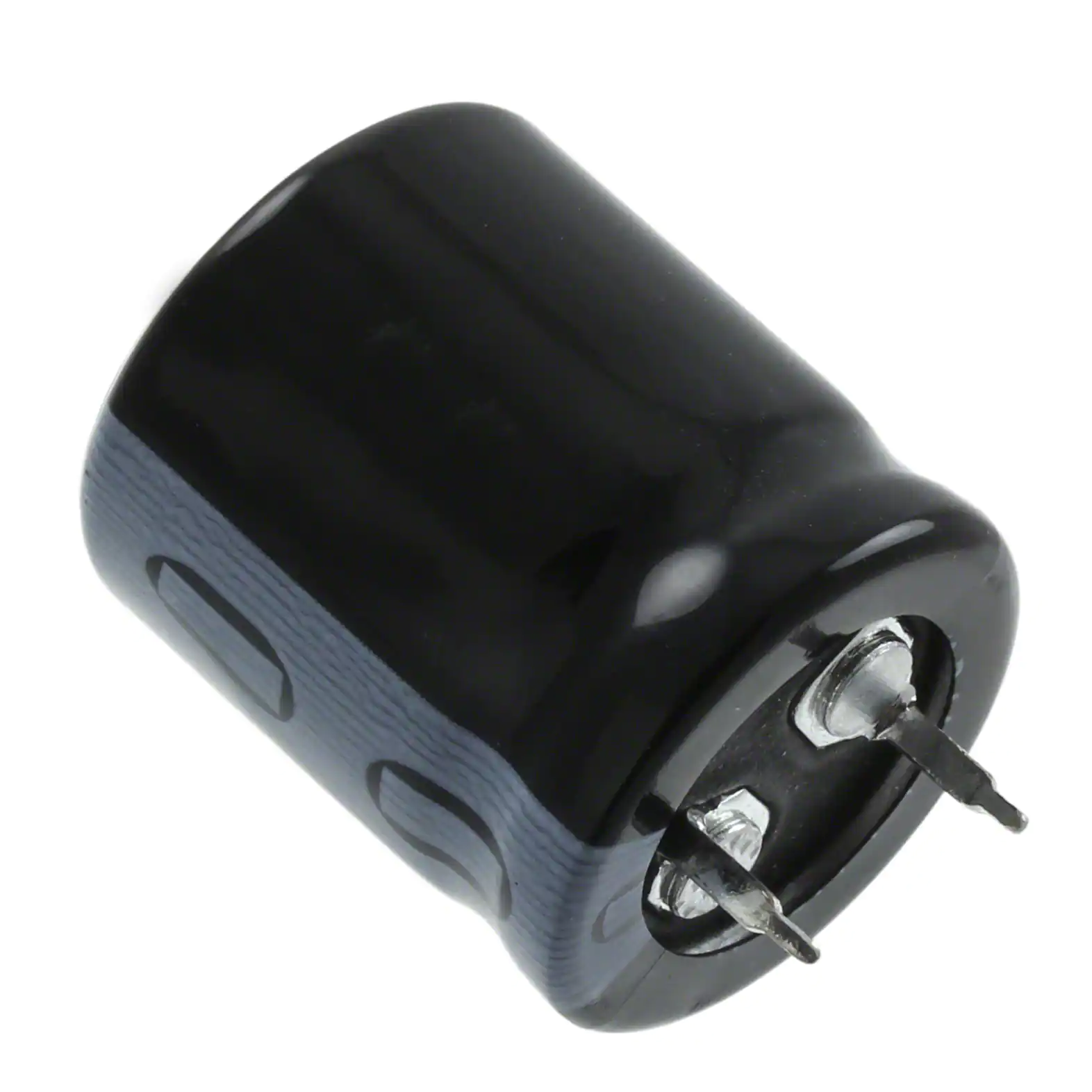

B41231A128MCAP ALUM 1200UF 20% 80V SNAP TH |
615 |
|
Datasheet |
B41231 | Bulk | Active | 1200 µF | ±20% | 80 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
250BXG100MEFC16X25CAP ALUM 250V POLAR |
600 |
|
Datasheet |
BXG | Bulk | Active | 100 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.6 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
70RXA430MEFC12.5X30CAP ALUM 430UF 20% 70V RADIAL TH |
598 |
|
Datasheet |
RXA | Bulk | Active | 430 µF | ±20% | 70 V | 61mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.0175 A @ 120 Hz | 1.85 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
25RXA2700MEFC12.5X30CAP ALUM 2700UF 20% 25V RADIAL |
595 |
|
Datasheet |
RXA | Bulk | Active | 2700 µF | ±20% | 25 V | 46mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.491 A @ 120 Hz | 2.13 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
UHW0J472MHD1TOCAP ALUM 4700UF 20% 6.3V RADIAL |
490 |
|
Datasheet |
UHW | Cut Tape (CT) | Active | 4700 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.72 A @ 120 Hz | 3.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKMQ160ELL153MM40SCAP ALUM 15000UF 20% 16V RADIAL |
460 |
|
Datasheet |
KMQ | Bulk | Active | 15000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.21 A @ 120 Hz | 2.3868 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
|
UHW1E222MHD6TNCAP ALUM 2200UF 20% 25V RADIAL |
248 |
|
Datasheet |
UHW | Cut Tape (CT) | Active | 2200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.681 A @ 120 Hz | 3.575 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-EE2W220SBCAP ALUM 22UF 20% 450V RADIAL TH |
240 |
|
Datasheet |
EE-A | Cut Tape (CT) | Active | 22 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 330 mA @ 120 Hz | 945 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EKZN250ELL222ML20SCAP ALUM 2200UF 20% 25V RADIAL |
135 |
|
Datasheet |
KZN | Bulk | Active | 2200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4975 A @ 120 Hz | 3.33 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
EKHF401ELL470MJ35SCAP ALUM 47UF 20% 400V RADIAL TH |
2,000 |
|
Datasheet |
KHF | Bulk | Active | 47 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 425 mA @ 120 Hz | 765 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EGXF201ELL131MM20SCAP ALUM 130UF 20% 200V RADIAL |
950 |
|
Datasheet |
GXF | Bulk | Active | 130 µF | ±20% | 200 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 605.5 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
ELBG350ELL362AM25SCAP ALUM 3600UF 35V RADIAL TH |
885 |
|
Datasheet |
LBG | Bulk | Active | 3600 µF | 0%, +30% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 120 Hz | 2.8 A @ 100 kHz | 30 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EGXF250ELL512MK40SCAP ALUM 5100UF 20% 25V RADIAL |
704 |
|
Datasheet |
GXF | Bulk | Active | 5100 µF | ±20% | 25 V | 19mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.444 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
400PX47MEFC16X25CAP ALUM 47UF 20% 400V RADIAL TH |
540 |
|
Datasheet |
PX | Bulk | Active | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 300 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UKL1E152KHDCAP ALUM 1500UF 10% 25V RADIAL |
300 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 1500 µF | ±10% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 1.4605 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
EMHB101ARA301MMN0SCAP ALUM 300UF 20% 100V SMD |
200 |
|
Datasheet |
MHB | Tape & Reel (TR) | Active | 300 µF | ±20% | 100 V | 91mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 845 mA @ 120 Hz | 1.69 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EKWB451ELL390MJ35SCAP ALUM 39UF 20% 450V RADIAL TH |
2,000 |
|
Datasheet |
KWB | Bulk | Active | 39 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 385 mA @ 120 Hz | 693 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EKXJ351ELL820MUN3SCAP ALUM 82UF 20% 350V RADIAL TH |
992 |
|
Datasheet |
KXJ | Bulk | Active | 82 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 645 mA @ 120 Hz | 1.6125 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
EGXF350ELL432ML35SCAP ALUM 4300UF 20% 35V RADIAL |
990 |
|
Datasheet |
GXF | Bulk | Active | 4300 µF | ±20% | 35 V | 16mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.723 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
|
EKXQ421ELL510ML20SCAP ALUM 420V POLAR |
981 |
|
Datasheet |
KXQ | Bulk | Active | 51 µF | ±20% | 420 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 400 mA @ 120 Hz | 800 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
