Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKXJ221ELL121MJ50SCAP ALUM 120UF 20% 220V RADIAL |
998 |
|
Datasheet |
KXJ | Bulk | Active | 120 µF | ±20% | 220 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 645 mA @ 120 Hz | 1.45125 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 2.028" (51.50mm) | - | Through Hole | |
|
EKMQ201ELL121MK25SCAP ALUM 120UF 20% 200V RADIAL |
994 |
|
Datasheet |
KMQ | Bulk | Active | 120 µF | ±20% | 200 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
ELBG250ELL422AL25SCAP ALUM 4200UF 25V RADIAL TH |
994 |
|
Datasheet |
LBG | Bulk | Active | 4200 µF | 0%, +30% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.21 A @ 120 Hz | 2.6 A @ 100 kHz | 33 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
UPW1H102MHD1CVCAP ALUM 50V POLAR |
624 |
|
Datasheet |
UPW | Bulk | Active | 1 mF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.6763 A @ 120 Hz | 2.235 A @ 100 kHz | 34 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EKMQ161ELL331MMP1SCAP ALUM 330UF 20% 160V RADIAL |
428 |
|
Datasheet |
KMQ | Bulk | Active | 330 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 705 mA @ 120 Hz | 1.0575 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEU-TA1H331BCAP ALUM 330UF 20% 50V RADIAL TH |
350 |
|
Datasheet |
TA | Cut Tape (CT) | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 864.5 mA @ 120 Hz | 1.33 A @ 100 kHz | 70 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
25RXA2200MEFC12.5X30CAP ALUM 2200UF 20% 25V RADIAL |
1,660 |
|
Datasheet |
RXA | Bulk | Active | 2200 µF | ±20% | 25 V | 43mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.533 A @ 120 Hz | 2.19 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|

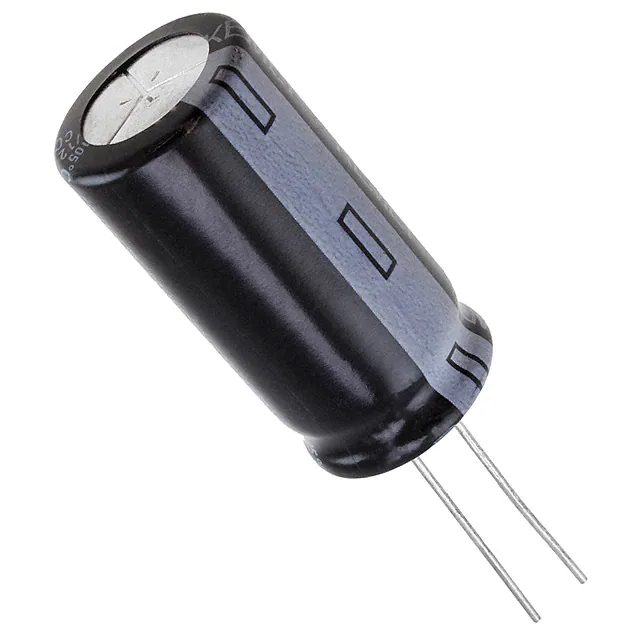

ESH228M050AN2AACAP ALUM 2200UF 20% 50V RADIAL |
1,500 |
|
Datasheet |
ESH | Bulk | Active | 2200 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 120 Hz | 1.7595 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
|
UYA2A900MNJ1MSCAP ALUM 90UF 20% 100V SMD |
1,195 |
|
Datasheet |
UYA | Tape & Reel (TR) | Active | 90 µF | ±20% | 100 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 325 mA @ 120 Hz | 650 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.492" (12.50mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
|
ELXZ250ELL332MM20SCAP ALUM 25V POLAR |
1,000 |
|
Datasheet |
LXZ | Bulk | Active | 3.3 mF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.8675 A @ 120 Hz | 2.49 A @ 100 kHz | 28 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
EKYA350ELL392MLP1SCAP ALUM 3900UF 20% 35V RADIAL |
997 |
|
Datasheet |
KYA | Bulk | Active | 3900 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7075 A @ 120 Hz | 3.61 A @ 100 kHz | 15 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EKXJ221ELL181MK40SCAP ALUM 180UF 20% 220V RADIAL |
980 |
|
Datasheet |
KXJ | Bulk | Active | 180 µF | ±20% | 220 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 975 mA @ 120 Hz | 2.19375 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
400WXA22MEFC16X20CAP ALUM 22UF 20% 400V RADIAL TH |
599 |
|
Datasheet |
WXA | Bulk | Active | 22 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 187 mA @ 120 Hz | 280.5 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ELXV500ELL821MK40SCAP ALUM 820UF 20% 50V RADIAL TH |
500 |
|
Datasheet |
LXV | Bulk | Active | 820 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.06 A @ 120 Hz | 2.12 A @ 100 kHz | 29 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
|
EMHB250ARA332MMN0SCAP ALUM 3.3MF 20% 25V SMD |
200 |
|
Datasheet |
MHB | Tape & Reel (TR) | Active | 3.3 mF | ±20% | 25 V | 32mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.8675 A @ 120 Hz | 2.49 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EKHE421ELL470MJ40SCAP ALUM 47UF 20% 420V RADIAL TH |
2,000 |
|
Datasheet |
KHE | Bulk | Active | 47 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 445 mA @ 120 Hz | 801 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EKXJ451ELL680MLP1SCAP ALUM 68UF 20% 450V RADIAL TH |
950 |
|
Datasheet |
KXJ | Bulk | Active | 68 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 660 mA @ 120 Hz | 1.65 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EGXF351ELL470MU25SCAP ALUM 47UF 20% 350V RADIAL TH |
946 |
|
Datasheet |
GXF | Bulk | Active | 47 µF | ±20% | 350 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 423.5 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EKZM350ELL272MM25SCAP ALUM 35V POLAR |
935 |
|
Datasheet |
KZM | Bulk | Active | 2.7 mF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.738 A @ 120 Hz | 3.65 A @ 100 kHz | 12 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EGXF800ELL561MK35SCAP ALUM 560UF 20% 80V RADIAL TH |
899 |
|
Datasheet |
GXF | Bulk | Active | 560 µF | ±20% | 80 V | 44mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.38 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.437" (36.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
