Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REA1632472M016BCAP ALUM 4.7MF 20% 16V RADIAL TH |
296 |
|
Datasheet |
REA | Bulk | Active | 4.7 mF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 2.198 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.339" (34.00mm) | - | Through Hole | |
|
860040578015CAP ALUM 1200UF 20% 35V RADIAL |
276 |
|
Datasheet |
WCAP-ATUL | Cut Tape (CT) | Active | 1200 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.296 A @ 120 Hz | 2.8 A @ 100 kHz | 24 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
860020680027CAP ALUM 1200UF 20% 50V RADIAL |
198 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 1200 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.472 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
16PX6800MEFCGC16X25CAP ALUM 6800UF 20% 16V RADIAL |
168 |
|
Datasheet |
PX | Cut Tape (CT) | Active | 6800 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.185 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
860241478003CAP ALUM 10UF 20% 450V RADIAL TH |
147 |
|
Datasheet |
WCAP-AT1H | Cut Tape (CT) | Active | 10 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 390 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
335TMA250MCAP ALUM 3.3UF 20% 250V AXIAL TH |
5,628 |
|
Datasheet |
TMA | Bulk | Active | 3.3 µF | ±20% | 250 V | 100.477Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24 mA @ 120 Hz | 48 mA @ 50 kHz | - | - | 0.315" Dia x 0.630" L (8.00mm x 16.00mm) | - | - | Through Hole | |
|
|
UCD1E102MNJ1MSCAP ALUM 1000UF 20% 25V SMD |
1,284 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 1000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 550 mA @ 120 Hz | 1.1 A @ 100 kHz | 80 mOhms | - | 0.492" Dia (12.50mm) | 0.571" (14.50mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
|
UBT2W100MHD8TOCAP ALUM 10UF 20% 450V RADIAL TH |
997 |
|
Datasheet |
UBT | Cut Tape (CT) | Active | 10 µF | ±20% | 450 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 86 mA @ 120 Hz | 154.8 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EGXF250ELL432MK35SCAP ALUM 4300UF 20% 25V RADIAL |
976 |
|
Datasheet |
GXF | Bulk | Active | 4300 µF | ±20% | 25 V | 22mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.34 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.437" (36.50mm) | - | Through Hole | |
|
|
EGXF630ELL821MK35SCAP ALUM 820UF 20% 63V RADIAL TH |
967 |
|
Datasheet |
GXF | Bulk | Active | 820 µF | ±20% | 63 V | 44mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.656 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.437" (36.50mm) | - | Through Hole | |
|
EKXJ401ELL560MU25SCAP ALUM 56UF 20% 400V RADIAL TH |
940 |
|
Datasheet |
KXJ | Bulk | Active | 56 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 495 mA @ 120 Hz | 1.2375 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
REH1620471M080BSERIES: REH/ CASE: 1620/ CAP: 47 |
500 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ELXV500ELL681ML20SCAP ALUM 680UF 20% 50V RADIAL TH |
496 |
|
Datasheet |
LXV | Bulk | Active | 680 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 900 mA @ 120 Hz | 1.5 A @ 100 kHz | 43 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
EKXL451ELL330MU20SCAP ALUM 33UF 20% 450V RADIAL TH |
488 |
|
Datasheet |
KXL | Bulk | Active | 33 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 837.5 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UHV1C332MHD6TNCAP ALUM 3300UF 20% 16V RADIAL |
450 |
|
Datasheet |
UHV | Cut Tape (CT) | Not For New Designs | 3300 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8463 A @ 120 Hz | 3.795 A @ 100 kHz | 14 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

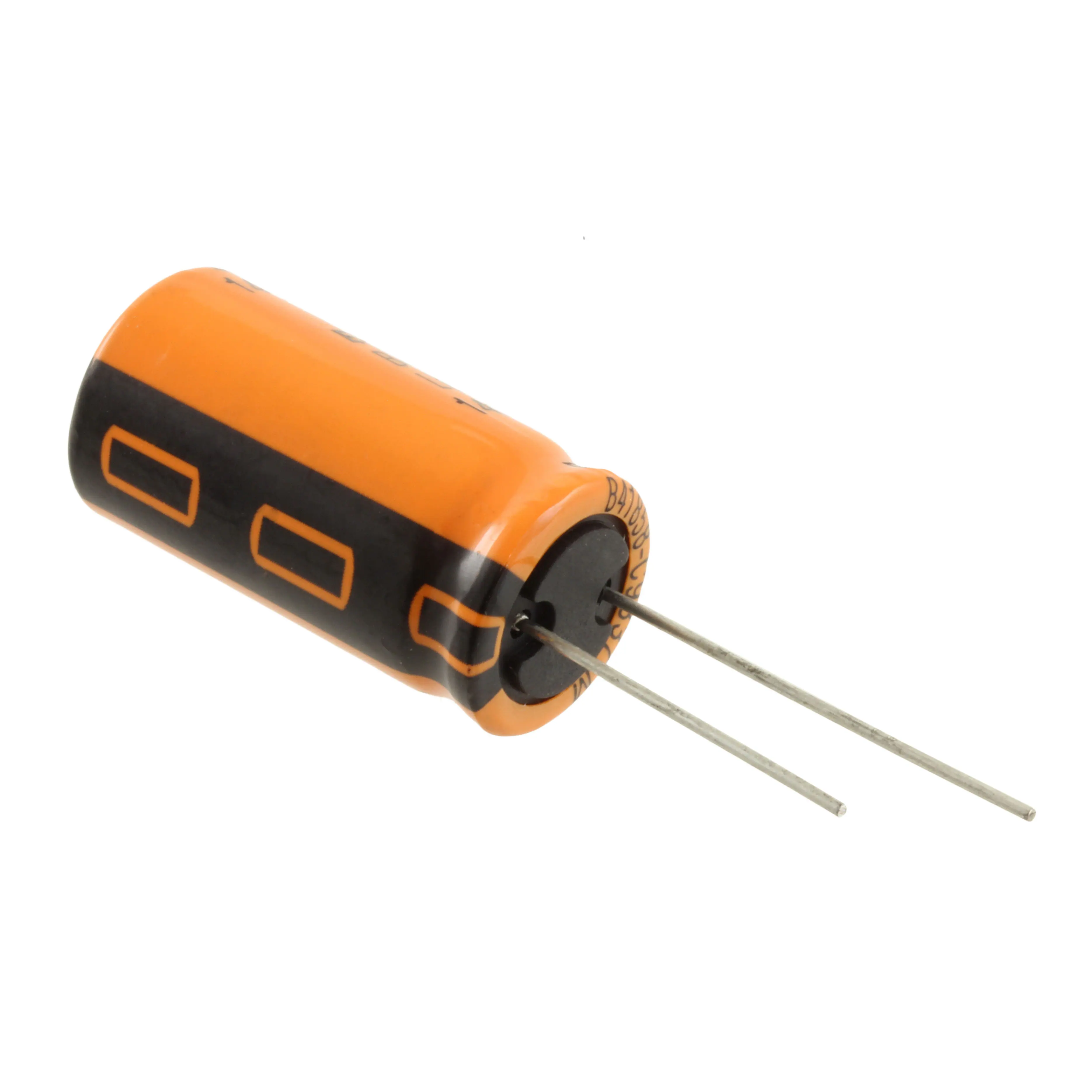

B41858C9397M000CAP ALUM 390UF 20% 100V RADIAL |
344 |
|
Datasheet |
B41858 | Bulk | Active | 390 µF | ±20% | 100 V | 72mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 1.907 A @ 100 kHz | 68 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
EKXJ201ELL101MU20SCAP ALUM 100UF 20% 200V RADIAL |
335 |
|
Datasheet |
KXJ | Bulk | Active | 100 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 615 mA @ 120 Hz | 1.38375 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
860080780025CAP ALUM 560UF 20% 63V RADIAL TH |
188 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 560 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.35 A @ 100 kHz | 39 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
UBT2D680MHD8TNCAP ALUM 68UF 20% 200V RADIAL TH |
5,687 |
|
Datasheet |
UBT | Cut Tape (CT) | Active | 68 µF | ±20% | 200 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 250 mA @ 120 Hz | 375 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
MAL217055102E3CAP ALUM 1000UF 20% 16V RADIAL |
1,486 |
|
Datasheet |
170 RVZ | Bulk | Active | 1000 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 819 mA @ 100 Hz | 1.26 A @ 100 kHz | 46 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
