Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKY-101ELL331MM20SCAP ALUM 100V POLAR |
418 |
|
Datasheet |
KY | Bulk | Active | 330 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.5 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
106KFM400MCAP ALUM 10UF 20% 400V RADIAL TH |
11,798 |
|
Datasheet |
KFM | Bulk | Active | 10 µF | ±20% | 400 V | 33.16Ohm @ 120Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 144 mA @ 120 Hz | 288 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-EB2E330CAP ALUM 33UF 20% 250V RADIAL TH |
4,784 |
|
Datasheet |
EB-A | Bulk | Active | 33 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 308 mA @ 120 Hz | 560 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
ELBG350ELL102AK20SCAP ALUM 1000UF 35V RADIAL TH |
1,934 |
|
Datasheet |
LBG | Bulk | Active | 1000 µF | 0%, +30% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.02 A @ 120 Hz | 1.7 A @ 100 kHz | 57 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
EKZM100ELL472MK30SCAP ALUM 10V POLAR |
1,915 |
|
Datasheet |
KZM | Bulk | Active | 4.7 mF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.933 A @ 120 Hz | 3.45 A @ 100 kHz | 13 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
|
|
UBT2W4R7MPD8CAP ALUM 4.7UF 20% 450V RADIAL |
1,199 |
|
Datasheet |
UBT | Bulk | Active | 4.7 µF | ±20% | 450 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 58 mA @ 120 Hz | 104.4 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELXZ160ELL392MK40SCAP ALUM 3900UF 20% 16V RADIAL |
1,000 |
|
Datasheet |
LXZ | Bulk | Active | 3900 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.1525 A @ 120 Hz | 2.87 A @ 100 kHz | 17 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
|
35RXA1100MEFC12.5X20CAP ALUM 1100UF 20% 35V RADIAL |
998 |
|
Datasheet |
RXA | Bulk | Active | 1100 µF | ±20% | 35 V | 72mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 882 mA @ 120 Hz | 1.47 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EKXJ451ELL270MU20SCAP ALUM 27UF 20% 450V RADIAL TH |
928 |
|
Datasheet |
KXJ | Bulk | Active | 27 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 335 mA @ 120 Hz | 837.5 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
URZ0J332MHD1TNCAP ALUM 3300UF 20% 6.3V RADIAL |
498 |
|
Datasheet |
URZ | Cut Tape (CT) | Active | 3300 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 989 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
REH1225152M035KCAP ALUM 1.5MF 20% 35V RADIAL TH |
250 |
|
Datasheet |
REH | Cut Tape (CT) | Active | 1.5 mF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 1.6725 A @ 120 Hz | 2.23 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|

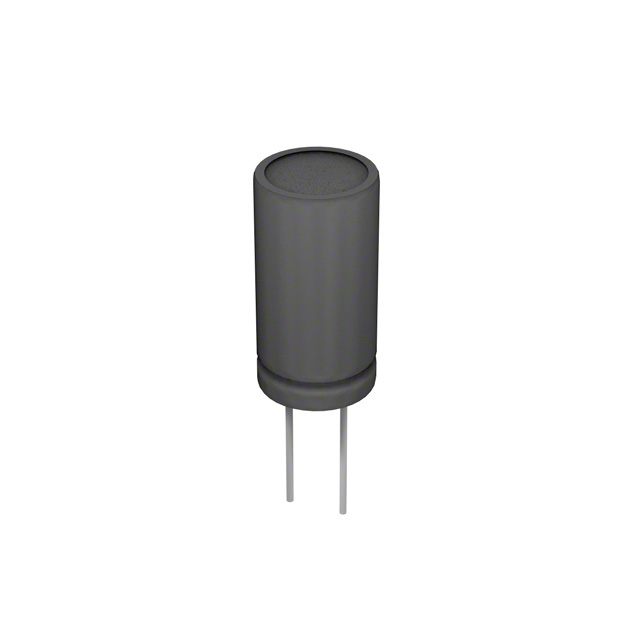

SEK332M010STCAP ALUM 3300UF 20% 10V RADIAL |
8,000 |
|
Datasheet |
SEK | Bulk | Active | 3300 µF | ±20% | 10 V | 100mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.464 A @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
B41888D4158M000CAP ALUM 1500UF 20% 16V RADIAL |
4,197 |
|
Datasheet |
B41888 | Bulk | Active | 1500 µF | ±20% | 16 V | 41mOhm @ 10kHz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 2 A @ 100 kHz | 39 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
ESL687M063AK3AACAP ALUM RAD 105C |
3,814 |
|
Datasheet |
ESL | Bulk | Active | 680 µF | ±20% | 63 V | 36mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.125 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|

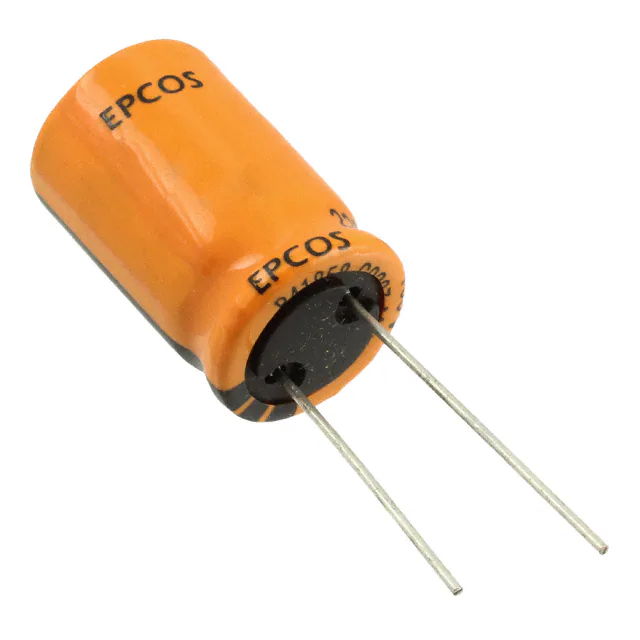

B41858C4228M000CAP ALUM 2200UF 20% 16V RADIAL |
2,967 |
|
Datasheet |
B41858 | Bulk | Not For New Designs | 2200 µF | ±20% | 16 V | 41mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 2.028 A @ 100 kHz | 34 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EKXJ351ELL270MJ30SCAP ALUM 27UF 20% 350V RADIAL TH |
1,997 |
|
Datasheet |
KXJ | Bulk | Active | 27 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 255 mA @ 120 Hz | 637.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
|
EKZM250ELL222MK30SCAP ALUM 25V POLAR |
1,959 |
|
Datasheet |
KZM | Bulk | Active | 2.2 mF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.588 A @ 120 Hz | 3.45 A @ 100 kHz | 13 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
|
|
EKYB6R3ELL822MM20SCAP ALUM 8200UF 20% 6.3V RADIAL |
1,000 |
|
Datasheet |
KYB | Bulk | Active | 8200 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 3 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EKY-6R3ELL392MM15SCAP ALUM 3900UF 20% 6.3V RADIAL |
995 |
|
Datasheet |
KY | Bulk | Active | 3900 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6575 A @ 120 Hz | 2.21 A @ 100 kHz | 43 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
EKY-630ELL561MK35SCAP ALUM 63V POLAR |
990 |
|
Datasheet |
KY | Bulk | Active | 560 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 2.5 A @ 100 kHz | 24 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.437" (36.50mm) | - | Through Hole |
