Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-FH1A561LCAP ALUM 560UF 20% 10V SMD |
886 |
|
Datasheet |
FH, Halogen Free | Tape & Reel (TR) | Active | 560 µF | ±20% | 10 V | 200mOhm @ 100kHz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

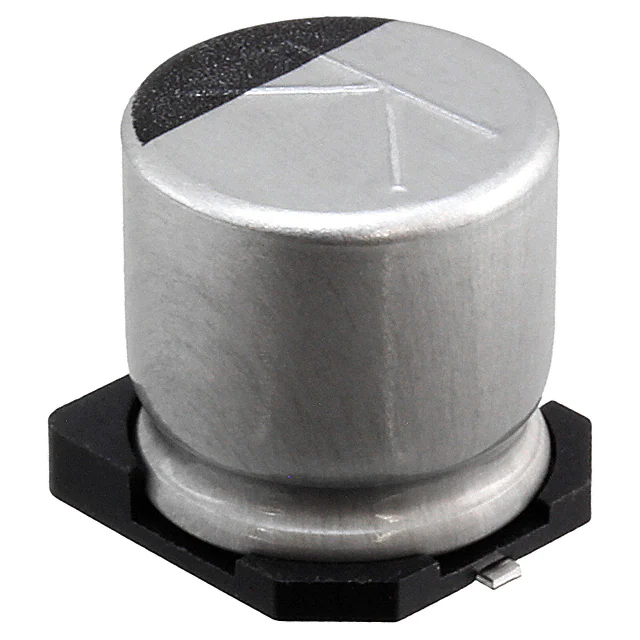

35THV100M10X10.5CAP ALUM 100UF 20% 35V SMD |
483 |
|
Datasheet |
THV | Tape & Reel (TR) | Active | 100 µF | ±20% | 35 V | 200mOhm @ 100Hz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EKZE500ETD471MK20SCAP ALUM 470UF 20% 50V RADIAL TH |
445 |
|
Datasheet |
KZE | Cut Tape (CT) | Active | 470 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.025 A @ 120 Hz | 2.05 A @ 100 kHz | 27 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
860080578020CAP ALUM 820UF 20% 35V RADIAL TH |
215 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 820 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.63 A @ 100 kHz | 21 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EKYA6R3ELL562MK25SCAP ALUM 5600UF 20% 6.3V RADIAL |
2,000 |
|
Datasheet |
KYA | Bulk | Active | 5600 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8955 A @ 120 Hz | 2.23 A @ 100 kHz | 27 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKZM250ELL681MJ16SCAP ALUM 680UF 20% 25V RADIAL TH |
1,898 |
|
Datasheet |
KZM | Bulk | Active | 680 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.056 A @ 120 Hz | 1.76 A @ 100 kHz | 28 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EKY-630ELL471MK25SCAP ALUM 470UF 20% 63V RADIAL TH |
996 |
|
Datasheet |
KY | Bulk | Active | 470 µF | ±20% | 63 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EKYA630ELL331MJ25SCAP ALUM 330UF 20% 63V RADIAL TH |
975 |
|
Datasheet |
KYA | Bulk | Active | 330 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 675 mA @ 120 Hz | 1.35 A @ 100 kHz | 46 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EMHB500ATR471MKN0SCAP ALUM 50V POLAR |
676 |
|
- |
MHB | Tray | Active | 470 µF | ±20% | 50 V | 76mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 600 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
350PX22MEFC12.5X20CAP ALUM 22UF 20% 350V RADIAL TH |
600 |
|
Datasheet |
PX | Bulk | Active | 22 µF | ±20% | 350 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 262.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
860160375036CAP ALUM 1800UF 20% 16V RADIAL |
490 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 1800 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.776 A @ 100 kHz | 97 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EEU-TA1E221BCAP ALUM 220UF 20% 25V RADIAL TH |
483 |
|
Datasheet |
TA | Cut Tape (CT) | Active | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 442 mA @ 120 Hz | 680 mA @ 100 kHz | 100 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
EEU-TA1V101BCAP ALUM 100UF 20% 35V RADIAL TH |
453 |
|
Datasheet |
TA | Cut Tape (CT) | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 360.8 mA @ 120 Hz | 555 mA @ 100 kHz | 180 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
EEU-TA1C331CAP ALUM 330UF 20% 16V RADIAL TH |
185 |
|
Datasheet |
TA | Bulk | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 442 mA @ 120 Hz | 680 mA @ 100 kHz | 100 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
UBT2D220MPD8CAP ALUM 22UF 20% 200V RADIAL TH |
2,298 |
|
Datasheet |
UBT | Bulk | Active | 22 µF | ±20% | 200 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 126 mA @ 120 Hz | 226.8 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EKZM160ELL332MK30SCAP ALUM 16V POLAR |
1,990 |
|
Datasheet |
KZM | Bulk | Active | 3.3 mF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.588 A @ 120 Hz | 3.45 A @ 100 kHz | 13 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
|
ELXY100ELL152MJ30SCAP ALUM 1500UF 20% 10V RADIAL |
998 |
|
Datasheet |
LXY | Bulk | Active | 1500 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 864 mA @ 120 Hz | 1.44 A @ 100 kHz | 44 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EKXJ201ELL560MJ25SCAP ALUM 56UF 20% 200V RADIAL TH |
932 |
|
Datasheet |
KXJ | Bulk | Active | 56 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 345 mA @ 120 Hz | 862.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EKY-800ELL331ML20SCAP ALUM 330UF 20% 80V RADIAL TH |
848 |
|
Datasheet |
KY | Bulk | Active | 330 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 675 mA @ 120 Hz | 1.35 A @ 100 kHz | 48 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
25ZLG1000MEFCGA12.5X20CAP ALUM 1000UF 20% 25V RADIAL |
500 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
