Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM1A222MHD1AACAP ALUM 10V POLAR |
0 |
|
- |
UPM | Bulk | Active | 2.2 mF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.53 A @ 120 Hz | 1.71 A @ 10 kHz | 34 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UKW1J100MDDCAP ALUM 10UF 20% 63V RADIAL TH |
50 |
|
Datasheet |
UKW | Bulk | Obsolete | 10 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 70 mA @ 120 Hz | 140 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
EEV-TG1K330PCAP ALUM 33UF 20% 80V SMD |
5 |
|
Datasheet |
TG | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 80 V | 1Ohm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPW1A221MEDCAP ALUM 220UF 20% 10V RADIAL TH |
1 |
|
Datasheet |
UPW | Bulk | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 188.5 mA @ 120 Hz | 290 mA @ 100 kHz | 250 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
EEV-TA1H330PCAP ALUM 33UF 20% 50V SMD |
0 |
|
Datasheet |
TA | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 48.1 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

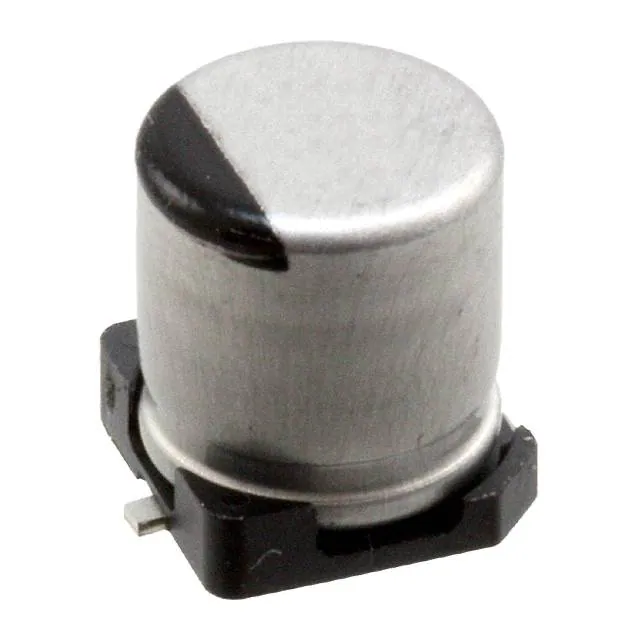

EEV-HD1C220RCAP ALUM 22UF 20% 16V SMD |
0 |
|
Datasheet |
HD | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 33 mA @ 120 Hz | 56.1 mA @ 10 kHz | 7.2 Ohms | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EEV-HD1V100RCAP ALUM 10UF 20% 35V SMD |
0 |
|
Datasheet |
HD | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | 7.2 Ohms | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EEV-HD1H4R7RCAP ALUM 4.7UF 20% 50V SMD |
0 |
|
Datasheet |
HD | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21 mA @ 120 Hz | 35.7 mA @ 100 kHz | 7.2 Ohms | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UWT1V2R2MCL2GBCAP ALUM 2.2UF 20% 35V SMD |
0 |
|
Datasheet |
UWT | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 7.5 mA @ 120 Hz | 11.25 mA @ 10 kHz | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
EEV-TG1A331PCAP ALUM 330UF 20% 10V SMD |
0 |
|
Datasheet |
TG | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 10 V | 300mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEV-TG1J330PCAP ALUM 33UF 20% 63V SMD |
0 |
|
Datasheet |
TG | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 63 V | 800mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 97.5 mA @ 120 Hz | 150 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EMVA160ARA220MD55GCAP ALUM 22UF 20% 16V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26 mA @ 120 Hz | 28.08 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.205" (5.20mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EMVA630ARA1R0MD55GCAP ALUM 1UF 20% 63V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 mA @ 120 Hz | 14.4 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.205" (5.20mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EMVK6R3ADA101MF55GCAP ALUM 100UF 20% 6.3V SMD |
0 |
|
Datasheet |
Alchip™- MVK | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EMVK160ADA220ME55GCAP ALUM 22UF 20% 16V SMD |
0 |
|
Datasheet |
Alchip™- MVK | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.205" (5.20mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EMVK250ADA330MF55GCAP ALUM 33UF 20% 25V SMD |
0 |
|
Datasheet |
Alchip™- MVK | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EMVK350ADA220MF55GCAP ALUM 22UF 20% 35V SMD |
0 |
|
Datasheet |
Alchip™- MVK | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EMVY6R3ARA330ME55GCAP ALUM 33UF 20% 6.3V SMD |
0 |
|
Datasheet |
Alchip™- MVY | Tape & Reel (TR) | Not For New Designs | 33 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 95 mA @ 100 kHz | 1.8 Ohms | - | 0.197" Dia (5.00mm) | 0.205" (5.20mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
EEE-HA1C220ARCAP ALUM 22UF 20% 16V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Not For New Designs | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 39 mA @ 120 Hz | 66.3 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UUR1H470MCL6GSCAP ALUM 47UF 20% 50V SMD |
0 |
|
Datasheet |
UUR | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 105 mA @ 120 Hz | 175.35 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.335" (8.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
