Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESY277M063AL3AACAP ALUM 270UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
ESY | Bulk | Active | 270 µF | ±20% | 63 V | 810mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.2 A @ 100 kHz | 810 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPM1E102MHD1AACAP ALUM 25V POLAR |
0 |
|
- |
UPM | Bulk | Active | 1 mF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.47 A @ 120 Hz | 1.7 A @ 10 kHz | 36 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
35WA1000MEFC16X16CAP ALUM 1000UF 20% 35V RADIAL |
0 |
|
Datasheet |
WA | Bulk | Not For New Designs | 1000 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
35WA1000MEFCGC16X16CAP ALUM 1000UF 20% 35V RADIAL |
0 |
|
Datasheet |
WA | Tape & Box (TB) | Not For New Designs | 1000 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
KY16VB472M18X25LLCAP ALUM 4700UF 20% 16V RADIAL |
0 |
|
- |
KY | Bulk | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.669 A @ 120 Hz | 3.14 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EKMG201ELL330MK20SCAP ALUM 33UF 20% 200V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Active | 33 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 288 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
ELXZ6R3ELL392MK25SCAP ALUM 3900UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
LXZ | Bulk | Active | 3900 µF | ±20% | 6.3 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.4625 A @ 120 Hz | 1.95 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UKL1H221MHDCAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 735 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
ELXZ250ELL122MK25SCAP ALUM 1200UF 20% 25V RADIAL |
0 |
|
Datasheet |
LXZ | Bulk | Active | 1200 µF | ±20% | 25 V | - | - | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
UHD1V681MHD1CVCAP ALUM 35V POLAR |
0 |
|
- |
UHD | Bulk | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.36 A @ 100 kHz | 21 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
UVZ1E222MHD1CVCAP ALUM 25V POLAR |
0 |
|
- |
UVZ | Bulk | Active | 2.2 mF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.2535 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UFG1E331MPMCAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
UFG | Bulk | Obsolete | 330 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 351 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
RLD101M2CBK-1035SCAP ALUM 160V POLAR |
0 |
|
- |
RLD | Active | 100 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 1.17 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
|
UPJ1V561MHD1TDCAP ALUM 35V POLAR |
0 |
|
- |
UPJ | Tape & Box (TB) | Active | 560 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.16 A @ 120 Hz | 1.43 A @ 10 kHz | 59 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
50YXG560MEFC12.5X25CAP ALUM 560UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
YXG | Bulk | Last Time Buy | 560 µF | ±20% | 50 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.073 A @ 120 Hz | 1.95 A @ 100 kHz | 34 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
SK3R3M450STCAP ALUM 3.3UF 20% 450V RADIAL |
0 |
|
Datasheet |
SK | Bulk | Active | 3.3 µF | ±20% | 450 V | 80.42Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|

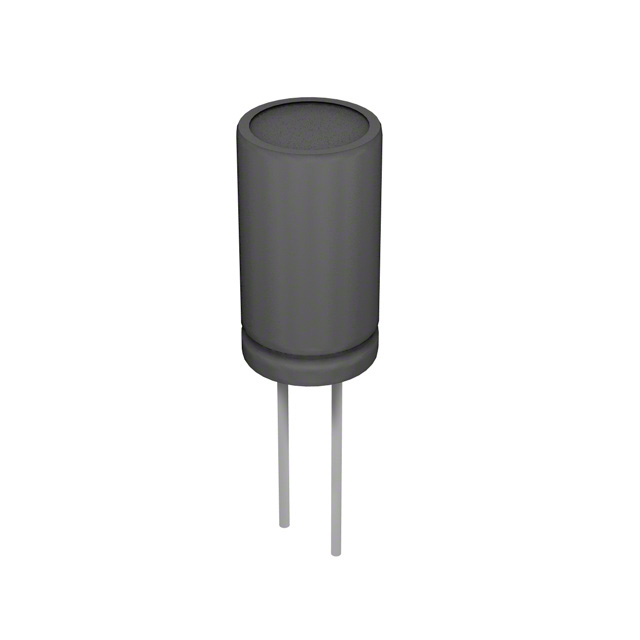

SK4R7M450STCAP ALUM 4.7UF 20% 450V RADIAL |
0 |
|
Datasheet |
SK | Bulk | Active | 4.7 µF | ±20% | 450 V | 56.47Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
UCY2V220MHD3CAP ALUM 22UF 20% 350V RADIAL TH |
0 |
|
Datasheet |
UCY | Bulk | Active | 22 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 325 mA @ 120 Hz | 650 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
UVZ1V152MHD1CACAPACITOR |
0 |
|
- |
- | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
UPM1A222MHD1CACAP ALUM 10V POLAR |
0 |
|
- |
UPM | Cut Tape (CT) | Active | 2.2 mF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.53 A @ 120 Hz | 1.71 A @ 10 kHz | 34 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
