Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

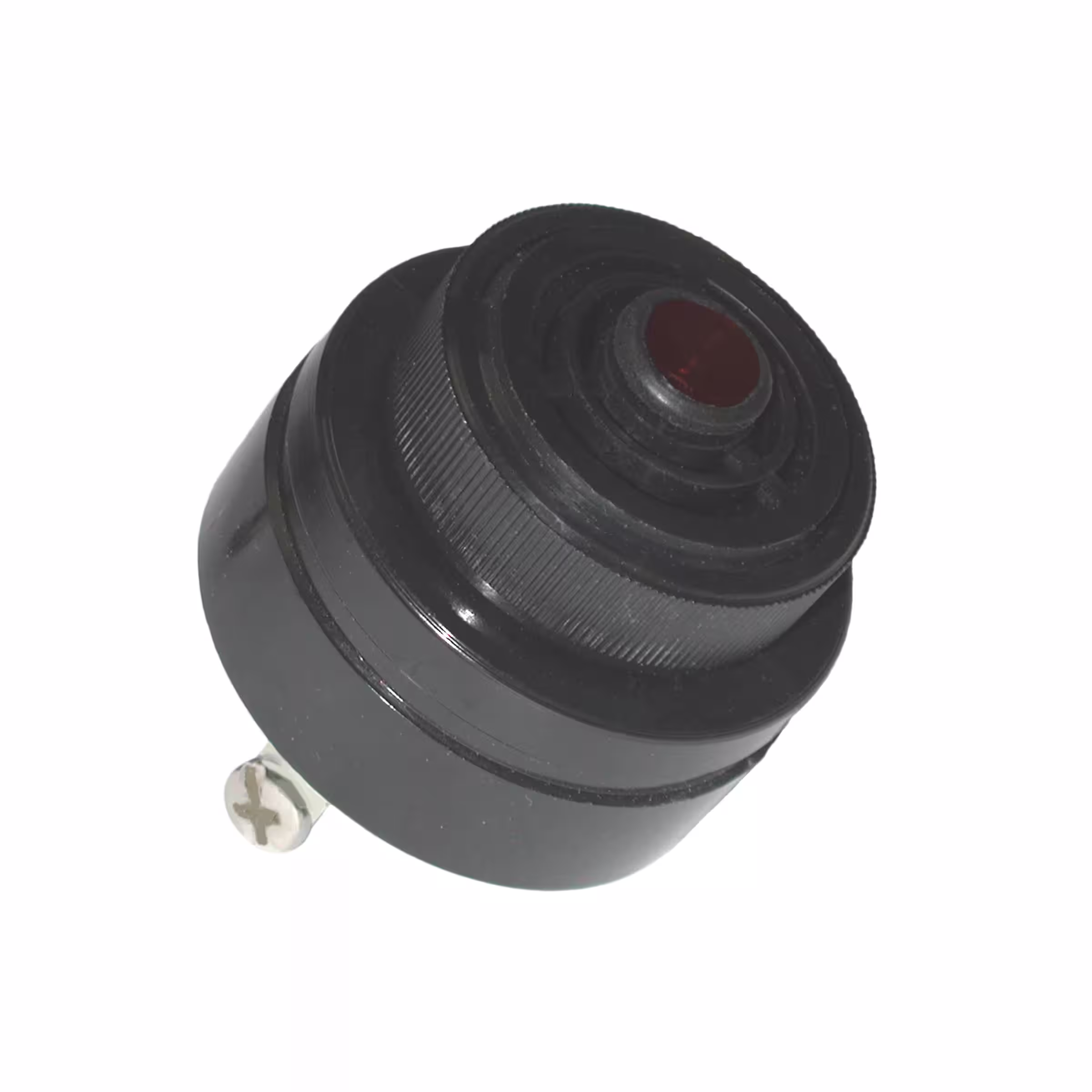

LSC628ANRBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
LSC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 9 ~ 28V | 2.9kHz | Piezo | Single Tone, Visual Indicator | 2 PPS | 80dB @ 9V, 61cm | 65mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminals | 1.687" Dia (42.85mm) |
|
SCE048MD2DT6SBUZZER 42.85MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | - | DC | - | 28 ~ 48V | 1.75kHz ~ 2.9kHz | - | Dual Tone | - | 75dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminals | 1.687" Dia (42.85mm) |
|
|
HW1Z-P1F2PQ4RILLUMINATED BUZZER (RED) |
0 |
|
- |
HW | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 2.2kHz ~ 2.45kHz | - | - | - | 70dB @ 24V, 100cm | 18mA | Top | -20°C ~ 50°C | CE, UR | - | IP40, IP54, IP65 | Panel Mount | Screw Terminal | 1.311" Dia (33.30mm) |
|
|
HW1Z-P1F2PQ4YILLUMINATED BUZZER (YELLOW) |
0 |
|
- |
HW | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 2.2kHz ~ 2.45kHz | - | - | - | 70dB @ 24V, 100cm | 18mA | Top | -20°C ~ 50°C | CE, UR | - | IP40, IP54, IP65 | Panel Mount | Screw Terminal | 1.311" Dia (33.30mm) |
|
M2BJ-B06ABUZZER PIEZO 6V 24X18MM PNL MNT |
0 |
|
Datasheet |
M2BJ | Bulk | Active | Indicator, Internally Driven | AC, DC | 6 V | - | 2kHz | Piezo | Pin Selectable | Variable | 80dB @ 6V, 100cm | 7mA | Top | -10°C ~ 55°C | - | - | - | Panel Mount | Connector | 0.945" L x 0.709" W (24.00mm x 18.00mm) |
|
|
ZA028SACTBUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.9kHz | Piezo | Single Tone | - | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SCE120LA2CT1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | AC | - | 48 ~ 120V | 2kHz | Piezo | Single Tone | - | 85dB @ 48V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE016SD3SR3BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Siren, Fast | 5 SPS | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SCE016SD3SR4BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Siren, Slow | 2 SPS | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SCE028SD3SR3BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Siren, Fast | 5 SPS | 65dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028SD3SR4BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Siren, Slow | 2 SPS | 65dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE016SD3CM4BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Chime | 1 Sec On-Time | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SCE016SD3CM1SBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Chime | Repeating every 3 Sec | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SCE028LD3SR3BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Siren, Fast | 5 SPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SCE028MD3SR3BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Siren, Fast | 5 SPS | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028MD3SR4BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Siren, Slow | 2 SPS | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048LD3CM1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Chime | Repeating every 3 Sec | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048LD3CM1FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Chime | Repeating every 3 Sec | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048LD3SR3BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Siren, Fast | 5 SPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048LD3SR4BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Siren, Slow | 2 SPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
