Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCL120LA3CTBBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCL | Bulk | Active | Indicator, Internally Driven | AC | - | 48 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 48V, 61cm | 20mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SC628AEBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 50dB @ 7.5V, 61cm | 2 ~ 10mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SCE048XD3FP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Pulse, Fast | 10 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028XD3FP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 10 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE016LD3MG3BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.95kHz | Piezo | Pin Selectable | Variable | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.692" Dia (42.98mm) |
|
|
SCE016MD3MG4BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.95kHz | Piezo | Pin Selectable | Variable | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.692" Dia (42.98mm) |
|
|
SCE016LD3MG3SBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.95kHz | Piezo | Pin Selectable | Variable | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SCE016LD3MG5BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pin Selectable | Variable | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.692" Dia (42.98mm) |
|
|
SCE016MD3MG5BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pin Selectable | Variable | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.692" Dia (42.98mm) |
|
|
SCE016SD3MG5BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pin Selectable | Variable | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.692" Dia (42.98mm) |
|
|
SCL028SA3CTBBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCL | Bulk | Active | Indicator, Internally Driven | AC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 65dB @ 16V, 61cm | 20mA | Top | -40°C ~ 85°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|

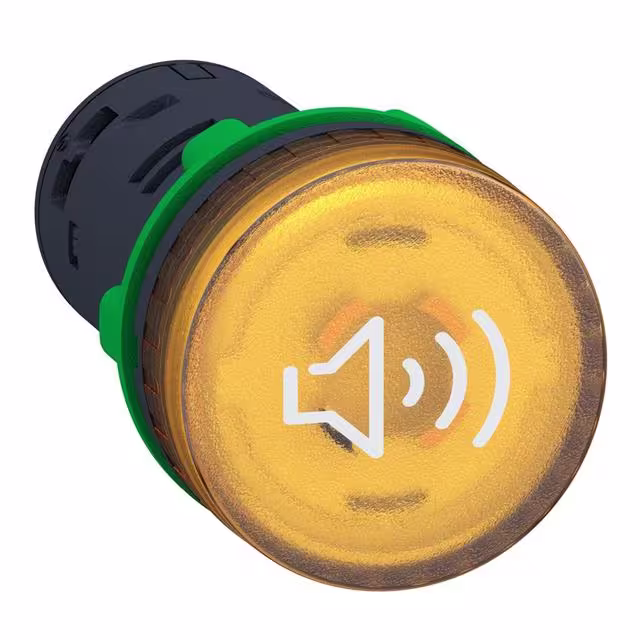

XB5KS2B8BUZZER HARMONY XB5 ILLUM |
0 |
|
Datasheet |
Harmony XB5 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XB5KS2G8BUZZER HARMONY XB5 ILLUM |
0 |
|
Datasheet |
Harmony XB5 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC648AHBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|

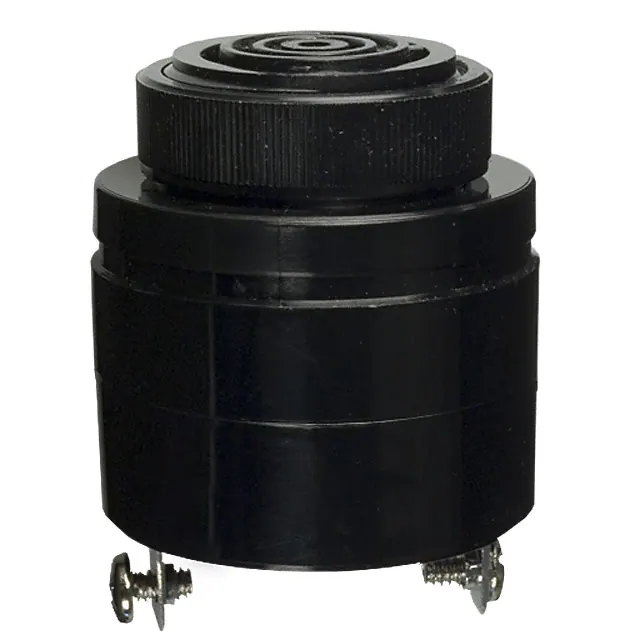

SC648AEBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 1.9kHz | Piezo | Single Tone | - | 55dB @ 10V, 61cm | 3 ~ 11mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SCE028XD3DL1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | 10 Sec On-Delay | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028XD3SS1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | 1 Min On-Time | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028XD3SU2BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Speed Up, Fast | 0.5 ~ 8 PPS in 30 Sec | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048XD3DL1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Single Tone | 10 Sec On-Delay | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048XD3DP2BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Double Pulse, Fast | 2 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
