Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMTB-0940-T-3V-RBUZZER PIEZO 3V 9X9MM W SMD |
8,647 |
|
Datasheet |
SMTB | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 4kHz | Piezo | - | - | 65dB @ 3V, 10cm | 3mA | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
|
|
CMI-9605-1280TBUZZER MAGNETIC 12V 9.6MM TH |
2,161 |
|
Datasheet |
CMI | Box | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 15V | 2.7kHz | Magnetic | - | - | 80dB @ 12V, 10cm | 30mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.378" Dia (9.60mm) |
|
|
PT-2040PQBUZZER PIEZO 5V 22MM TH |
35,460 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 30V | 4kHz | Piezo | Single Tone | - | 90dB @ 5V, 10cm | 1.5mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) |
|
|
PT-2404BUZZER PIEZO 15V 24MM FLANGE |
14,135 |
|
Datasheet |
PT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 15 V | 1 ~ 12V | 4.8kHz | Piezo | Single Tone | - | 85dB @ 4.8V, 10cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
|
CMI-1295IC-1285TBUZZER MAGNETIC 12V 12MM TH |
582 |
|
Datasheet |
CMI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 8 ~ 15V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 30mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|

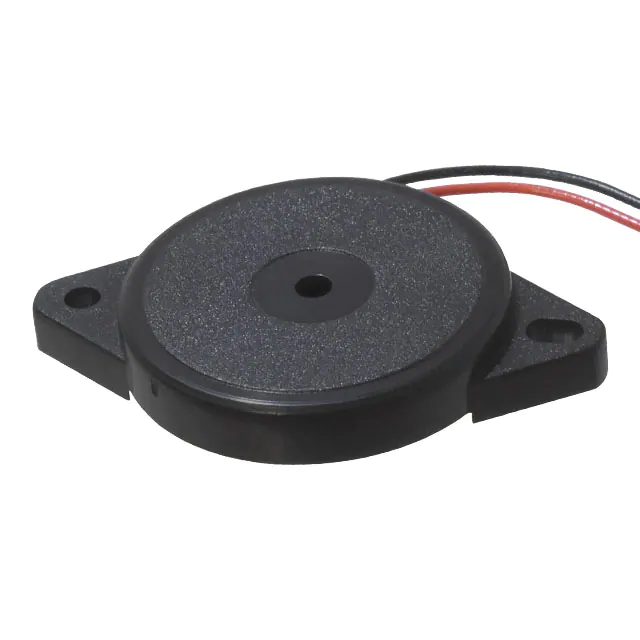

CPT-2305-90PMBUZZER PIEZO 12V 23MM FLANGE |
529 |
|
Datasheet |
CPT | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 3 ~ 30V | 4kHz | Piezo | - | - | 90dB @ 12V, 10cm | 5mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.906" Dia (23.00mm) |
|
|
TP094003-1BUZZER PIEZO 3V 9X9MM W SMD |
4,620 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 4kHz | Piezo | - | - | 65dB @ 3V, 10cm | 3mA | Top | -30°C ~ 75°C | - | - | - | Surface Mount | Solder Pads | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
|
CMI-1210-5-95TBUZZER MAGNETIC 5V 12MM TH |
1,662 |
|
Datasheet |
CMI | Box | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.3kHz | Magnetic | Single Tone | - | 95dB @ 5V, 10cm | 35mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
PT-2038WQBUZZER PIEZO 5V 24MM FLANGE |
161 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 30V | 3.8kHz | Piezo | Single Tone | - | 90dB @ 5V, 10cm | 5mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
|
CPT-1203-78-SMT-TRBUZZER PIEZO 5V 12X12MM SMD |
1,630 |
|
Datasheet |
CPT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4kHz | Piezo | - | - | 78dB @ 5V, 10cm | 5mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
|
|
SMT-1341-T-HT-RBUZZER PIEZO 5V 13X13MM SMD |
2,658 |
|
Datasheet |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4.1kHz | Piezo | - | - | 85dB @ 5V, 10cm | 5mA | Top | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
|
SMT-0827-T-HT-RBUZZER MAGNETIC 3.6V 0.3X0.3 SMD |
1,518 |
|
Datasheet |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 5V | 2.7kHz | Electromechanical/Magnetic | - | - | 95dB @ 3.6V, 10cm | 100mA | Top | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
|
|
CMI-9605-0580TBUZZER MAGNETIC 5V 9.6MM TH |
1,477 |
|
Datasheet |
CMI | Box | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.7kHz | Magnetic | - | - | 80dB @ 5V, 10cm | 30mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.378" Dia (9.60mm) |
|
|
AI-1440-TWT-24V-3-RBUZZER PIEZO 24V 13.8MM TH |
1,152 |
|
Datasheet |
AI | Tray | Active | Indicator, Internally Driven | DC | 24 V | 5 ~ 28V | 4kHz | Piezo | Single Tone | - | 88dB @ 24V, 10cm | 20mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) |
|
|
CMT-1032-85-SMT-TRBUZZER MAGN 5V 10X10MMW SMD |
2,543 |
|
Datasheet |
CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 4 ~ 6V | 2.7kHz | Magnetic | - | - | 85dB @ 5V, 10cm | 80mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
|
|
TP144009-1BUZZER PIEZO 9V 14MM TH |
1,220 |
|
Datasheet |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 1 ~ 20V | 4kHz | Piezo | - | - | 80dB @ 9V, 10cm | 7mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.551" Dia (14.00mm) |
|
SMTB-0827-TW-RBUZZER MAGNETIC 3.5V 0.3X0.3 SMD |
793 |
|
Datasheet |
SMTB | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.5 V | 2.5 ~ 4.5V | 2.7kHz | Electromechanical/Magnetic | - | - | 85dB @ 3.5V, 10cm | 100mA | Top | -40°C ~ 105°C | - | Washable | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
|

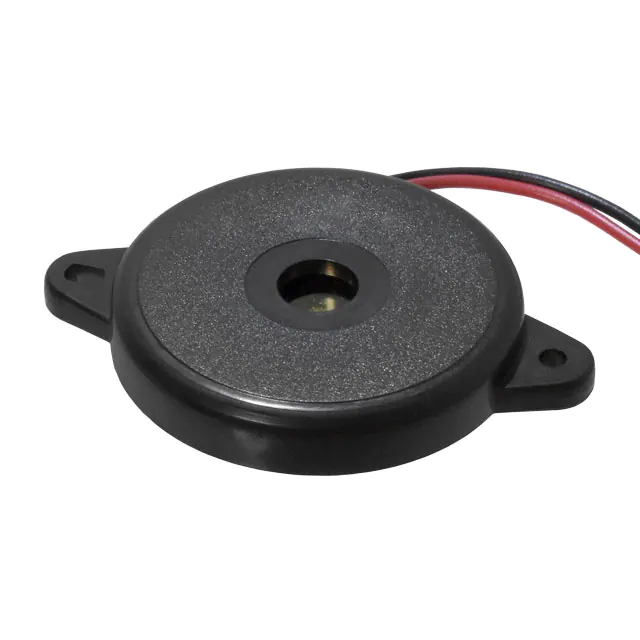

CPT-3055-90PMBUZZER PIEZO 12V 30MM FLANGE |
531 |
|
Datasheet |
CPT | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 30V | 2.5kHz | Piezo | - | - | 80dB @ 12V, 10cm | 15mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|
SMT-1027-S-HT-RBUZZER MAGNETIC 3V 9.2MM SMD |
3,987 |
|
Datasheet |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 5V | 2.7kHz | Electromechanical/Magnetic | - | - | 85dB @ 3V, 10cm | 80mA | Side | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.362" Dia (9.20mm) |
|
|
WST-1203SBUZZER MAGNETIC 3V 12MM TH |
1,238 |
|
Datasheet |
WST | Tray | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 4V | 2.3kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 35mA | Top | -20°C ~ 60°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
