Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS-983QBUZZER PIEZO 12V 51MM FLANGE |
467 |
|
Datasheet |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 1.5kHz | Piezo | Siren, Fast | - | 105dB @ 12V, 100cm | 150mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 2.008" Dia (51.00mm) |
|
|
CPI-4232-72FSTBUZZER PIEZO 12V 42.50MM PNL MNT |
400 |
|
Datasheet |
CPI | Box | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Pulse, Fast | - | 80dB @ 28V, 60cm | 2 ~ 15mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
|
AI-4328-P-C120D-RBUZZER PIEZO 110V 43MM PNL MNT |
341 |
|
Datasheet |
AI | Tray | Active | Indicator, Internally Driven | AC, DC | 110 V | 30 ~ 120V | 2.8kHz | Piezo | Single Tone | - | 98dB @ 110V, 10cm | 17mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.693" Dia (43.00mm) |
|

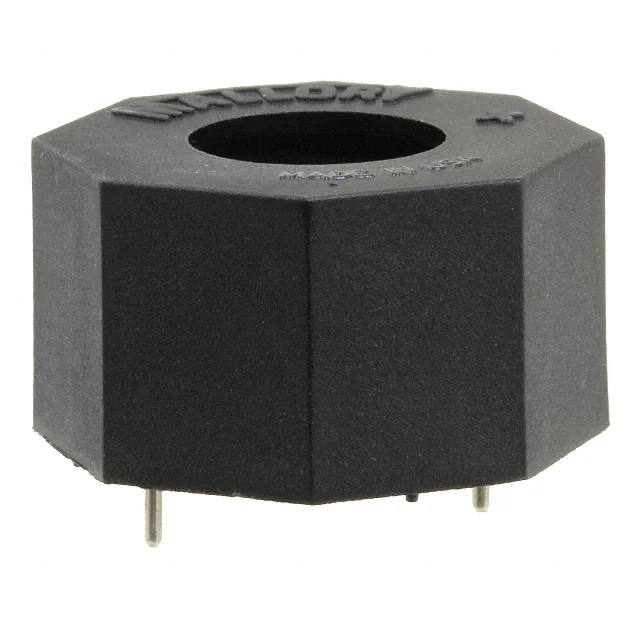

MSS5M0BUZZER PIEZO 5V 23X23MM TH |
920 |
|
Datasheet |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 325Hz | Piezo | Single Tone | - | 85dB @ 5V, 10cm | 200mA | Top | -30°C ~ 55°C | cUL, UL | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
SC628BUZZER PIEZO 42.85MM PNL MNT |
1,132 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 3 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC628RBUZZER PIEZO 42.98MM PNL MNT |
844 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 3 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC648RBUZZER PIEZO 42.98MM PNL MNT |
569 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
MSS5MMGBUZZER MAGN 5V 23X23MM TH |
1,170 |
|
Datasheet |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
SBM428RBUZZER PIEZO 42.85MM TH |
790 |
|
Datasheet |
SBM | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 64dB @ 4V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Through Hole | PC Pins | 1.687" Dia (42.85mm) |
|
|
API-4260-LW150-2-RBUZZER MAGNETIC 12V 42MM FLANGE |
382 |
|
Datasheet |
API | Box | Active | Indicator, Internally Driven | DC | 12 V | 7 ~ 24V | 100Hz ~ 20kHz | Electromechanical/Magnetic | Multiple Tone | - | 100dB @ 12V, 10cm | 50mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.654" Dia (42.00mm) |
|
|
SC628DRBUZZER PIEZO 42.98MM PNL MNT |
170 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 60dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC616NRBUZZER PIEZO 42.85MM PNL MNT |
477 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 26V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
XL-5530L-LW300-S-RBUZZER PIEZO 12V 54.5MM BRACKET |
310 |
|
Datasheet |
XL | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 16V | 3kHz | Piezo | Siren | 3 PPS | 123dB @ 12V, 10cm | 260mA | Top | -20°C ~ 60°C | - | - | - | Bracket Mount | Wire Leads | 2.146" Dia (54.50mm) |
|
|
XL-5530-LW300-S-RBUZZER PIEZO 12V 54.5MM BRACKET |
299 |
|
Datasheet |
XL | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 16V | 3kHz | Piezo | Siren | 3 PPS | 123dB @ 12V, 10cm | 260mA | Top | -20°C ~ 60°C | - | - | - | Bracket Mount | Wire Leads | 2.146" Dia (54.50mm) |
|
|
SBT5LM1PCBUZZER PIEZO 44.5MM TH |
2,127 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|
|
SBS12M1PCBUZZER MAGNETIC 44.45MM TH |
339 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
ZA120LACTBUZZER PIEZO 30.74MM PNL MNT |
166 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Single Tone | - | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
4112-RC000BUZZER PIEZO 12V 47.6X25.4MM PNL |
52 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | 12 V | - | - | Piezo | - | - | - | - | Side | - | - | - | - | Panel Mount | Screw Terminals | 1.874" L x 1.000" W (47.60mm x 25.40mm) |
|
|
14-810.002BUZZER PIEZO 24V 29MM TH |
38 |
|
Datasheet |
14 | Bulk | Active | Indicator, Internally Driven | DC | - | - | - | - | - | - | - | - | Top | - | - | - | IP65 - Dust Tight, Water Resistant | Through Hole | Solder Tabs | 1.142" Dia (29.00mm) |
|
|
SC628MNPBUZZER PIEZO 42.98MM PNL MNT |
33 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
