Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12605215BUZZER MAGNETIC 24V 70MM BRACKET |
1 |
|
Datasheet |
- | Box | Active | Indicator, Internally Driven | DC | 24 V | 12 ~ 24V | - | Magnetic | Multiple Tone | - | 105dB @ 24V, 100cm | 80mA | Side | -20°C ~ 50°C | CE | - | IP33 | Bracket Mount | Screw Terminals | 2.756" Dia (70.00mm) |
|
16170060BUZZER MIDI SOUNDER 115-230V |
1 |
|
Datasheet |
- | Box | Active | - | - | - | 115 ~ 230V | - | - | Siren, Multiple Tone | - | - | - | - | -30°C ~ 60°C | - | - | IP66 - Dust Tight, Water Resistant | - | Spring Terminal | - |
|
14095060BUZZER MULTI SOUNDER 110-24 |
1 |
|
Datasheet |
- | Box | Active | - | - | - | 115 ~ 230V | - | - | Multiple Tone | - | - | - | - | -40°C ~ 70°C | - | - | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|
15300055BUZZER 24V |
1 |
|
Datasheet |
- | Box | Active | - | - | 24 V | - | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 50°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|
XVS72BMWPBUZZER 24V 69.3MMX72MM DIN RAIL |
1 |
|
Datasheet |
Harmony XVS | Box | Active | - | DC | 24 V | - | - | - | - | - | - | 125mA | User Defined | -10°C ~ 50°C | CE, UR | - | IP54 - Dust Protected, Water Resistant | DIN Rail | - | 2.728" L x 2.835" W (69.30mm x 72.00mm) |
|
SCH628RBUZZER PIEZO 42.85MM PNL MNT |
1 |
|
Datasheet |
SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 18V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 3 ~ 18mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
14400075BUZZER 24V |
1 |
|
Datasheet |
- | Box | Active | - | - | 24 V | - | - | - | Multiple Tone | - | - | - | - | -30°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|

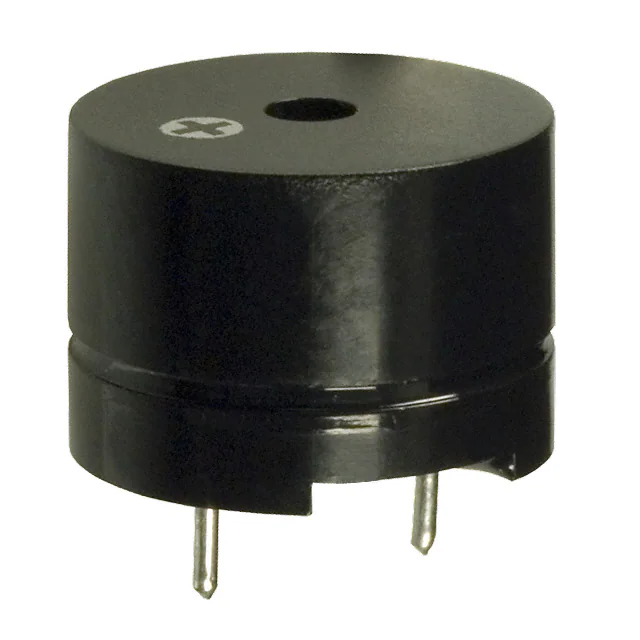

GT-11PBBUZZER MAGNETIC 1.5V 12MM TH |
0 |
|
- |
GT | Bulk | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.73kHz | Magnetic | Single Tone | - | 87dB @ 1.5V, 10cm | 35mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
CPE-120BUZZER PIEZO 10V 24.00MM FLANGE |
0 |
|
Datasheet |
CPE | Bag | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 30V (Max) | - | Piezo | Single Tone | - | 88dB @ 10V, 10cm | 8mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
AT-0927-TT-5-RBUZZER MAGNETIC 1.5V 9MM TH |
19 |
|
Datasheet |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 2V | 2.73kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 90mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) |
|
AT-3045-TF-LW110-2-RBUZZER PIEZO 10V 30MM FLANGE |
6 |
|
Datasheet |
AT | Bag | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 1 ~ 30V | 4kHz | Piezo | - | - | 90dB @ 10V, 10cm | 10mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|

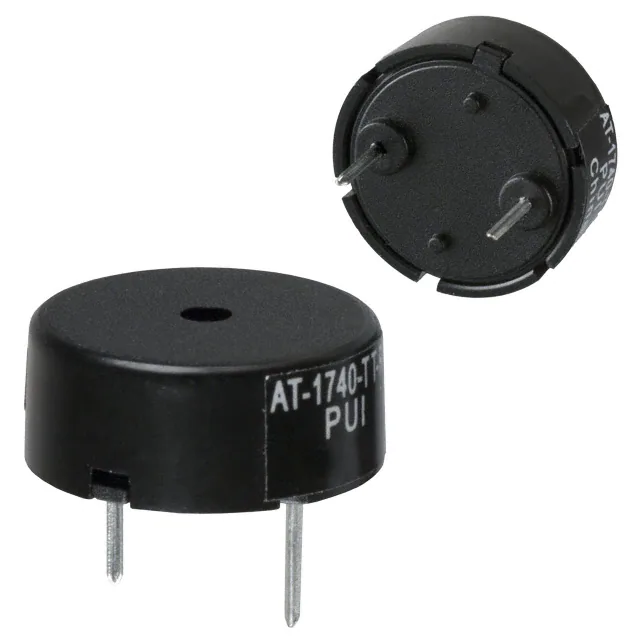

AT-1740-TT-RBUZZER PIEZO 5V 17MM TH |
0 |
|
Datasheet |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 30V | 4kHz | Piezo | Single Tone | - | 78dB @ 5V, 10cm | 1mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.669" Dia (17.00mm) |
|
PT-2045FWQBUZZER PIEZO 12V 24MM FLANGE |
7 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 4.5kHz | Piezo (with Feedback) | Single Tone | - | 85dB @ 12V, 30cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
AT-1228-TT-RBUZZER MAGNETIC 1.5V 12MM TH |
14 |
|
Datasheet |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 1.7V | 2.8kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 40mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
PT-1540PM-P3.5QBUZZER PIEZO 5V 17MM TH |
3 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4kHz | Piezo | Single Tone | - | 85dB @ 5V, 10cm | 1.5mA | Top | -20°C ~ 100°C | - | - | - | Through Hole | PC Pins | 0.669" Dia (17.00mm) |
|
PT-723B-76QBUZZER PIEZO 5V 30MM CUSTOM |
5 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 3 ~ 30V | 2.6kHz | Piezo | Single Tone | - | 90dB @ 5V, 10cm | 5mA | Top | -20°C ~ 70°C | - | - | - | Custom | Wire Leads | 1.181" Dia (30.00mm) |
|
MB 14 - 12 VBUZZER ELECTRO 12V 13.8MM TH |
7 |
|
Datasheet |
- | Bulk | Active | - | DC | 12 V | 9 ~ 16V | 4kHz | Electromechanical | - | - | 80dB @ 12V, 10cm | 7mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) |
|
PT-1625BUZZER PIEZO 3V16X16MM SMD |
4 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 4kHz | Piezo | Single Tone | - | 70dB @ 3V, 10cm | 1mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.630" L x 0.630" W (16.00mm x 16.00mm) |
|
WT-2506BUZZER MAGNETIC 6V 25MM TH |
0 |
|
Datasheet |
WT | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 6 V | 3 ~ 7V | 1.25kHz | Magnetic | Single Tone | - | 85dB @ 6V, 10cm | 70mA | Top | -25°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.984" Dia (25.00mm) |
|
AT-3046-TWT-2-RBUZZER PIEZO 10V 30MM TH |
6 |
|
Datasheet |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 1 ~ 30V | 4.6kHz | Piezo | Single Tone | - | 85dB @ 10V, 10cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
