Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPS-4318-105L085BUZZER PIEZO 12V 43.00MM |
17 |
|
Datasheet |
CPS | Tray | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.9kHz | Piezo | Single Tone, Pulse, Fast; Pulse, Slow | - | 100dB @ 12V, 30cm | 25mA | Top | -30°C ~ 70°C | - | - | - | Custom | Wire Leads | 1.693" Dia (43.00mm) |
|
AI-1450-TWT-WP-RBUZZER MAGNETIC 12V 14MM TH |
25 |
|
Datasheet |
AI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 16V | 5kHz | Electromechanical/Magnetic | Single Tone | - | 90dB @ 12V, 10cm | 35mA | Top | -30°C ~ 85°C | - | - | IP67 - Dust Tight, Waterproof | Through Hole | PC Pins | 0.551" Dia (14.00mm) |
|
PLD-21N30PQBUZZER PIEZO 12V 24MM TH |
16 |
|
Datasheet |
PLD | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 30V | 3kHz | Piezo | Dual Tone | - | 80dB @ 12V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) |
|
PK-26N04W-12VQBUZZER MAGNETIC 12V 26MM FLANGE |
5 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 8 ~ 16V | 400Hz | Magnetic | Single Tone | - | 87dB @ 12V, 30cm | 40mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.024" Dia (26.00mm) |
|
|
MSR516NJRBUZZER PIEZO 23MM TH |
7 |
|
Datasheet |
MSR | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 16V | 3.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 86dB @ 5V, 30cm | 3 ~ 12mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|
MSR205NSRBUZZER PIEZO 23MM TH |
1 |
|
Datasheet |
MSR | Bulk | Active | Indicator, Internally Driven | DC | - | 2 ~ 5V | 3.9kHz | Piezo | Single Tone | - | 85dB @ 2V, 30cm | 10mA | Top | -40°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|

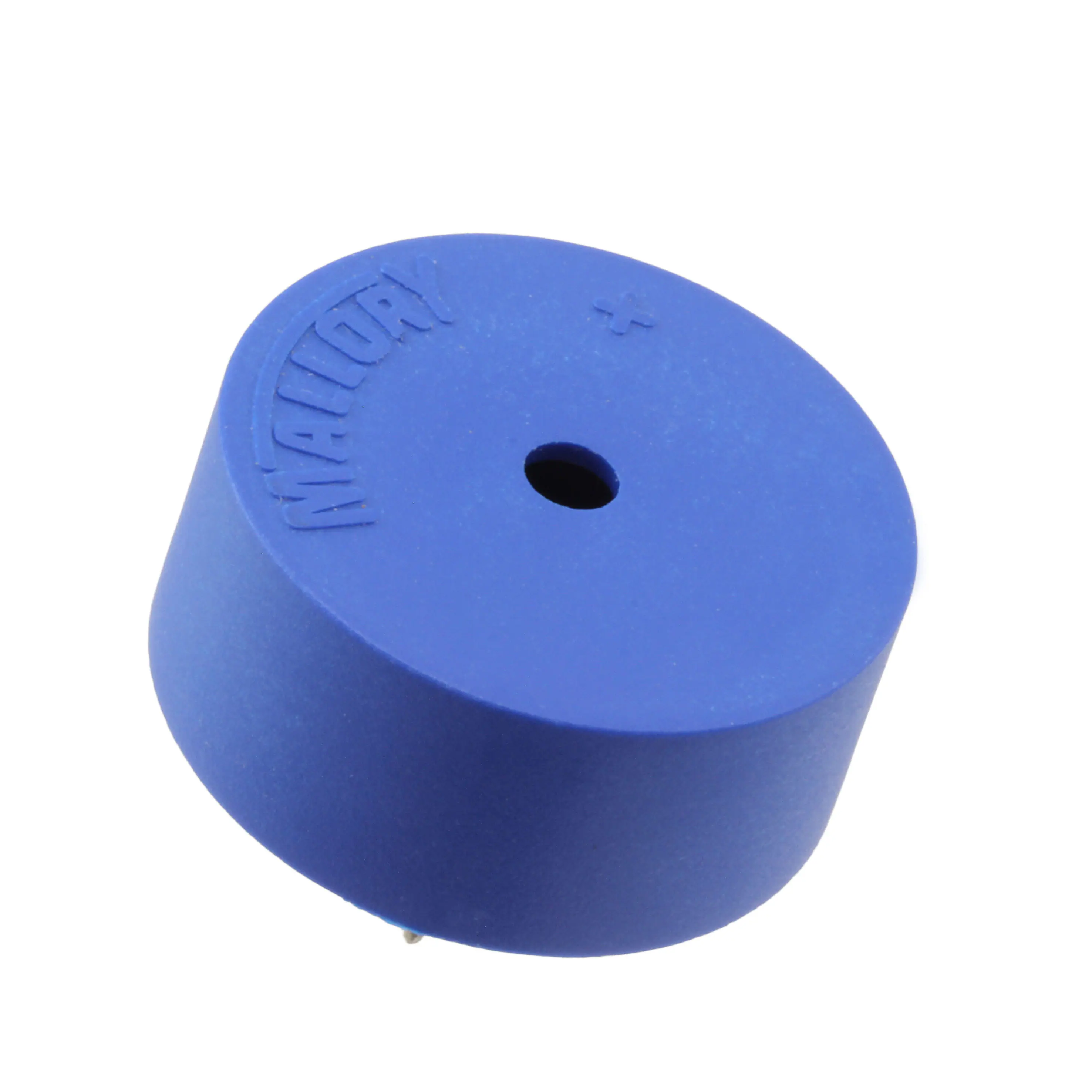

MSR205NPRBUZZER PIEZO 23MM TH |
5 |
|
Datasheet |
MSR | Bulk | Active | Indicator, Internally Driven | DC | - | 2 ~ 5V | 3.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 85dB @ 2V, 30cm | 10mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|
PS-522QBUZZER PIEZO 12V 57.5X44.5 BRKT |
3 |
|
Datasheet |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 3kHz | Piezo | Warble, Slow | - | 105dB @ 12V, 100cm | 200mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.263" L x 1.752" W (57.50mm x 44.50mm) |
|
SBT200FLBUZZER PIEZO 44.5MM FLANGE |
5 |
|
Datasheet |
- | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | - | 30V (Max) | 200Hz | Piezo | Single Tone | - | 85dB @ 5V, 10cm | 1.5mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.752" Dia (44.50mm) |
|

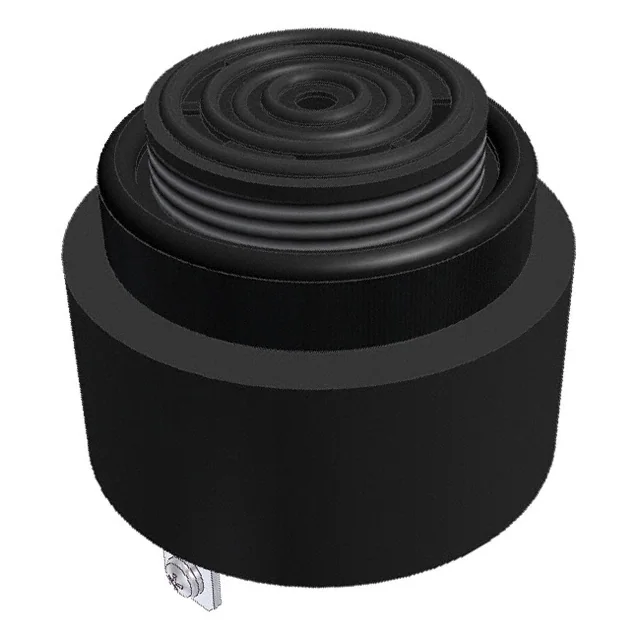

AI-4328-P-C120-RBUZZER PIEZO 110V 42.5MM PNL MNT |
0 |
|
Datasheet |
AI | Bulk | Active | Indicator, Internally Driven | AC, DC | 110 V | 30 ~ 120V | 2.8kHz | Piezo | Single Tone | - | 98dB @ 110V, 10cm | 17mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
SBT12GHPCBUZZER PIEZO 44.45MM TH |
3 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 150Hz ~ 4kHz | Piezo | - | Repeating every 2.5 Sec | 85dB @ 9V, 10cm | 25mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
SC628D-BTRBUZZER PIEZO 42.98MM PNL MNT |
1 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 60dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SCE016XD2DB3SBUZZER PIEZO 42.85MM PNL MNT |
2 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SC628NBUZZER PIEZO 42.98MM PNL MNT |
1 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SCE028LD3CTBBUZZER PIEZO 42.98MM PNL MNT |
2 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
SC628EBUZZER PIEZO 42.98MM PNL MNT |
4 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 1.9kHz | Piezo | Single Tone | - | 55dB @ 6V, 61cm | 3 ~ 11mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC616NJ-BTRBUZZER PIEZO 42.85MM PNL MNT |
2 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 3.5 PPS | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC628HBUZZER PIEZO 42.98MM PNL MNT |
4 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 4.5kHz | Piezo | Single Tone | - | 78dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
MSS5MMTBUZZER MAGN 5V 23X23MM TH |
5 |
|
Datasheet |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
MSS5MMXBUZZER MAGN 5V 23X23MM TH |
5 |
|
Datasheet |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
