Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMI-1295IC-0585TBUZZER MAGNETIC 5V 12MM TH |
42 |
|
Datasheet |
CMI | Box | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
CMT-0926-86-SMT-TRBUZZER MAGNETIC 3.6V 9MM SMD |
60 |
|
Datasheet |
CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 4V | 2.73kHz | Magnetic | - | - | 86dB @ 3.6V, 10cm | 100mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.354" Dia (9.00mm) |
|
CMT-85853-97-SMT-TRBUZZER MAGNETIC 3.6V 0.3X0.3 SMD |
1,075 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 3 ~ 5V | 2.73kHz | Magnetic | - | - | 90dB @ 3.6V, 5cm | 80mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
|
CPE-6080BUZZER PIEZO 10V 44.00MM FLANGE |
92 |
|
Datasheet |
CPE | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 40V (Max) | - | Piezo | Single Tone | - | 80dB @ 10V, 10cm | 10mA | Top | -30°C ~ 80°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.732" Dia (44.00mm) |
|
AT-2310-T-LW100-RBUZZER PIEZO 3V 22.5MM CUSTOM |
50 |
|
Datasheet |
AT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 12V | 2kHz | Piezo | Single Tone | - | 65dB @ 3V, 10cm | 3mA | Top | -30°C ~ 85°C | - | - | - | Custom | Wire Leads | 0.886" Dia (22.50mm) |
|
MB-2317BUZZER MAGNETIC 12V 23X17 FLANGE |
28 |
|
Datasheet |
MB | Tray | Active | - | DC | 12 V | 8 ~ 15V | 400Hz | Magnetic | Single Tone | - | - | 25mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.906" L x 0.669" W (23.00mm x 17.00mm) |
|
IE162306-2BUZZER ELECTRO 6V 16MM TH |
37 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 6 V | 4 ~ 8V | 2.3kHz | Electromechanical | Single Tone | - | 85dB @ 6V, 10cm | 30mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) |
|
|
CPS-4013-110PMBUZZER PIEZO 9V 40.00MM FLANGE |
50 |
|
Datasheet |
CPS | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 1 ~ 40V | 3.25kHz | Piezo | Single Tone | - | 110dB @ 9V, 10cm | 5mA | Top | -30°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.575" Dia (40.00mm) |
|
|
CPE-222HBUZZER PIEZO 12V 23.30MM TH |
57 |
|
Datasheet |
CPE | Tray | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 16V | 3.2kHz | Piezo | Single Tone | - | 85dB @ 12V, 30cm | 10mA | Top | -30°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.917" Dia (23.30mm) |
|
|
PK-35N29W-24VQBUZZER PIEZO 24V 42MM FLANGE |
79 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 22 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 90dB @ 24V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.654" Dia (42.00mm) |
|
|
CPI-4333-85L127BUZZER PIEZO 12V 43MM PNL MNT |
94 |
|
Datasheet |
CPI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 28V | 2.9kHz | Piezo | Pin Selectable | - | 85dB @ 12V, 30cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Wire Leads | 1.693" Dia (43.00mm) |
|
|
PK-26N04W-06VQBUZZER MAGNETIC 6V 26MM FLANGE |
30 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 6 V | 4 ~ 8V | 400Hz | Magnetic | Single Tone | - | 85dB @ 6V, 61cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.024" Dia (26.00mm) |
|
|
PK-26N04W-03VQBUZZER MAGNETIC 3V 26MM FLANGE |
78 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 4V | 400Hz | Magnetic | Single Tone | - | 80dB @ 3V, 30cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.024" Dia (26.00mm) |
|
|
X-4032-TF-LW105-RBUZZER PIEZO 90V 40MM FLANGE |
36 |
|
Datasheet |
X | Bulk | Active | Indicator, Internally Driven | AC, DC | 90 V | 15 ~ 130V | 3.2kHz | Piezo | Single Tone | - | 97dB @ 90V, 10cm | 9mA | Top | -30°C ~ 80°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.575" Dia (40.00mm) |
|
|
CPI-4233C-120BUZZER PIEZO 12V 42.50MM PNL MNT |
83 |
|
Datasheet |
CPI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Single Tone | - | 94dB @ 12V, 30cm | 12mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|

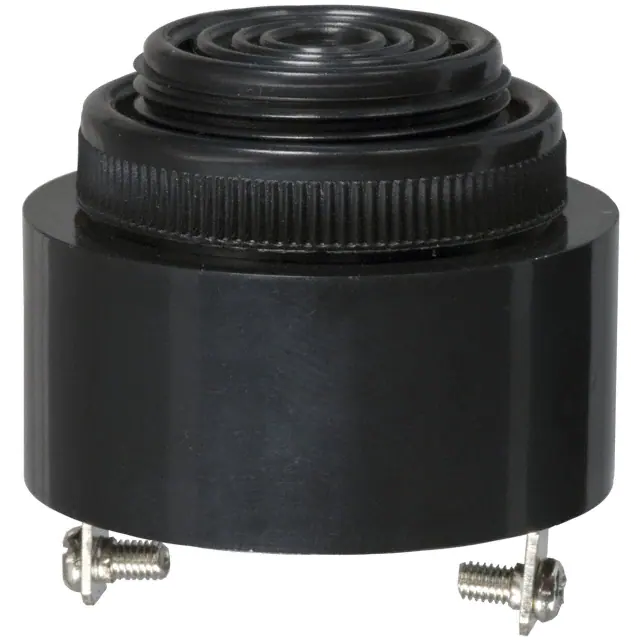

AI-4329-P-SP28-RBUZZER PIEZO 12V 43MM PNL MNT |
16 |
|
Datasheet |
AI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 1.2 PPS | 88dB @ 12V, 10cm | 6mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.693" Dia (43.00mm) |
|
|
X-5328-P-C-LW165-RBUZZER PIEZO 6V 53MM PNL MNT |
94 |
|
Datasheet |
X | Tray | Active | Indicator, Internally Driven | DC | 6 V | 3 ~ 12V | 2.8kHz | Piezo | Single Tone | - | 100dB @ 6V, 10cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Wire Leads | 2.087" Dia (53.00mm) |
|
IP432912-1BUZZER PIEZO 12V 43MM PNL MNT |
19 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | - | 100dB @ 12V, 10cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.693" Dia (43.00mm) |
|

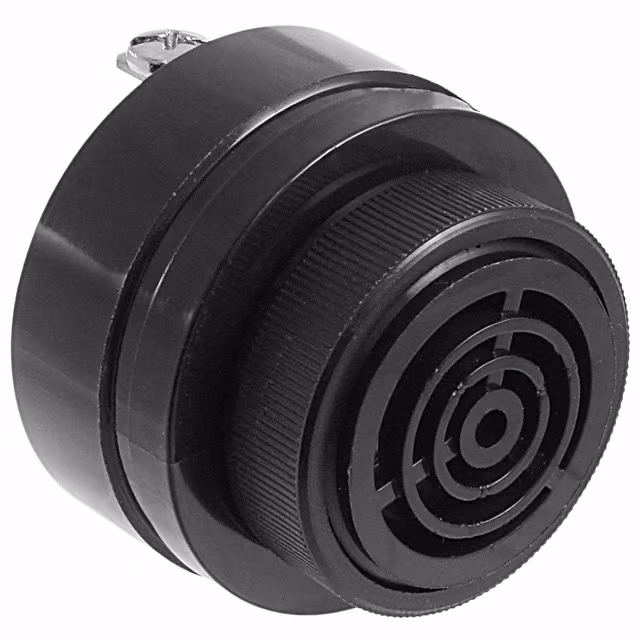

SC628FRBUZZER PIEZO 42.98MM PNL MNT |
32 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 55dB @ 6V, 61cm | 2 ~ 4mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC628NRBUZZER PIEZO 42.98MM PNL MNT |
50 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
