Sanken Electric USA Inc. SJPB-H9VL

Q: Does Raywise Technologies Co.,Limited support BOM sourcing?

Yes. Raywise Technologies Co.,Limited supports BOM sourcing, component matching and RFQ service for electronic and communication components.

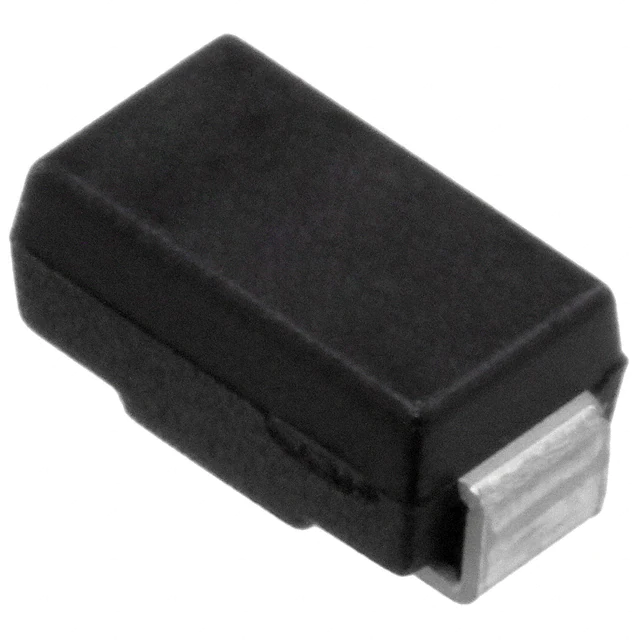

SJPB-H9VL Sanken Electric USA Inc. electronic component

Compare

Part No.:: SJPB-H9VL

Manufacturer:: Sanken Electric USA Inc.

Category:: Single Diodes

Package:: 2-SMD, J-Lead

Datasheet:: SJPB-H9VL.pdf

Description:: DIODE SCHOTTKY 90V 2A SJP

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Inventory:43

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Product Details

SJPB-H9VL is an electronic component from Sanken Electric USA Inc.. Raywise Technologies Co.,Limited provides inventory inquiry, datasheet reference, RFQ support, BOM sourcing and component procurement service for this part number.

For the latest stock, lead time, price and alternative solutions of SJPB-H9VL, please submit your inquiry with required quantity and target price. Our sourcing team will help confirm availability and provide quotation support.

SJPB-H9VL Specifications

Product attributes: Attribute value

Part Number:: SJPB-H9VL

Manufacturer:: Sanken Electric USA Inc.

Category:: Single Diodes

Package:: 2-SMD, J-Lead

Stock:: 43

Series:: -

Package/Case:: 2-SMD, J-Lead

Packaging:: Tape & Reel (TR)

Product Status:: Active

Technology:: Schottky

Voltage - DC Reverse (Vr) (Max):: 90 V

Current - Average Rectified (Io):: 2A

Voltage - Forward (Vf) (Max) @ If:: 850 mV @ 2 A

Speed:: Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr):: -

Current - Reverse Leakage @ Vr:: 200 µA @ 90 V

Capacitance @ Vr, F:: -

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: SJP

Operating Temperature - Junction:: -40°C ~ 150°C
