Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZMMSZ5266BT1GDIODE ZENER 68V 500MW SOD123 |
13,972 |
|
Datasheet |
SZMMSZ52xxxT1G | SOD-123 | Tape & Reel (TR) | Active | 68 V | ±5% | 500 mW | 230 Ohms | 100 nA @ 52 V | 900 mV @ 10 mA | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-123 |
|

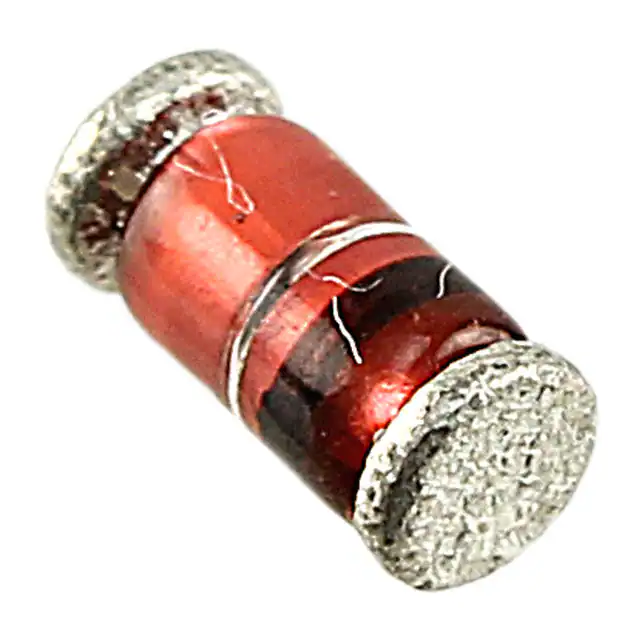

ZM4744A-GS08DIODE ZENER 15V 1W DO213AB |
13,277 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Active | 15 V | ±5% | 1 W | 14 Ohms | 5 µA @ 11.4 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
EDZVFHT2R3.6BDIODE ZENER 3.6V 150MW EMD2 |
9,164 |
|
Datasheet |
- | SC-79, SOD-523 | Tape & Reel (TR) | Active | 3.6 V | ±3.4% | 150 mW | 100 Ohms | 10 µA @ 1 V | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | EMD2 |
|
1N5377BRLGDIODE ZENER 91V 5W AXIAL |
9,063 |
|
Datasheet |
- | T-18, Axial | Tape & Reel (TR) | Active | 91 V | ±5% | 5 W | 75 Ohms | 500 nA @ 69.2 V | 1.2 V @ 1 A | -65°C ~ 200°C | - | - | Through Hole | Axial |
|
PZ1AL5V6B_R1_00001DIODE ZENER 5.6V 1W SOD123FL |
7,047 |
|
Datasheet |
- | SOD-123F | Tape & Reel (TR) | Active | 5.6 V | ±5% | 1 W | 4 Ohms | 10 µA @ 2 V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
2EZ15D5-TPDIODE ZENER 15V 2W DO41 |
4,809 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | 15 V | ±5% | 2 W | 7 Ohms | 500 nA @ 11.4 V | 1.2 V @ 200 mA | -55°C ~ 150°C | - | - | Through Hole | DO-41 |
|
|
PZ1AL5V1B_R1_00001DIODE ZENER 5.1V 1W SOD123FL |
2,485 |
|
Datasheet |
- | SOD-123F | Tape & Reel (TR) | Active | 5.1 V | ±5% | 1 W | 6 Ohms | 5 µA @ 1 V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
3SMAJ5947B-TPDIODE ZENER 82V 3W DO214AC |
143,929 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 82 V | ±5% | 3 W | 160 Ohms | 1 µA @ 62.2 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMA) |
|
SZMM3Z12VST1GDIODE ZENER 12V 300MW SOD323 |
50,243 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | 12 V | ±2% | 300 mW | 25 Ohms | 100 nA @ 8 V | 900 mV @ 10 mA | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
BZD27C5V6P-E3-08DIODE ZENER 5.6V 800MW DO219AB |
47,536 |
|
Datasheet |
BZD27C | DO-219AB | Tape & Reel (TR) | Active | 5.6 V | - | 800 mW | 4 Ohms | 10 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-219AB (SMF) |
|
|
SZMM3Z5V1ST1GDIODE ZENER 5.1V 300MW SOD323 |
39,064 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | 5.1 V | ±2% | 300 mW | 60 Ohms | 2 µA @ 2 V | 900 mV @ 10 mA | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
BZD27C130P-E3-08DIODE ZENER 130V 800MW DO219AB |
35,174 |
|
Datasheet |
BZD27C | DO-219AB | Tape & Reel (TR) | Active | 130 V | - | 800 mW | 300 Ohms | 1 µA @ 100 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-219AB (SMF) |
|
SMAZ6V8-13-FDIODE ZENER 6.8V 1W SMA |
32,858 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 6.8 V | ±5% | 1 W | 2 Ohms | 5 µA @ 4 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
1N4742A-T50ADIODE ZENER 12V 1W DO41 |
30,799 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | 12 V | ±5% | 1 W | 9 Ohms | 5 µA @ 9.1 V | - | -65°C ~ 200°C | - | - | Through Hole | DO-41 |
|
|
SZMMSZ5235BT1GDIODE ZENER 6.8V 500MW SOD123 |
28,926 |
|
Datasheet |
SZMMSZ52xxxT1G | SOD-123 | Tape & Reel (TR) | Active | 6.8 V | ±5% | 500 mW | 5 Ohms | 3 µA @ 5 V | 900 mV @ 10 mA | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-123 |
|
|
SZMM3Z5V6ST1GDIODE ZENER 5.6V 300MW SOD323 |
24,566 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | 5.6 V | ±2% | 300 mW | 40 Ohms | 1 µA @ 2 V | 900 mV @ 10 mA | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
BZD27C12P-E3-08DIODE ZENER 12V 800MW DO219AB |
24,330 |
|
Datasheet |
BZD27C | DO-219AB | Tape & Reel (TR) | Active | 12 V | - | 800 mW | 7 Ohms | 3 µA @ 9.1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-219AB (SMF) |
|
|
BZD27C36P-E3-08DIODE ZENER 36V 800MW DO219AB |
23,791 |
|
Datasheet |
BZD27C | DO-219AB | Tape & Reel (TR) | Active | 36 V | - | 800 mW | 40 Ohms | 1 µA @ 27 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-219AB (SMF) |
|
SZMM5Z3V3T1GDIODE ZENER 3.3V 500MW SOD523 |
23,620 |
|
Datasheet |
- | SC-79, SOD-523 | Tape & Reel (TR) | Active | 3.3 V | ±6.1% | 500 mW | 95 Ohms | 5 µA @ 1 V | 900 mV @ 100 mA | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
3SMAJ5935B-TPDIODE ZENER 27V 3W DO214AC |
17,755 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 27 V | ±5% | 3 W | 23 Ohms | 1 µA @ 20.6 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMA) |
Single Zener Diodes Electronic Components
Explore Single Zener Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
