Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

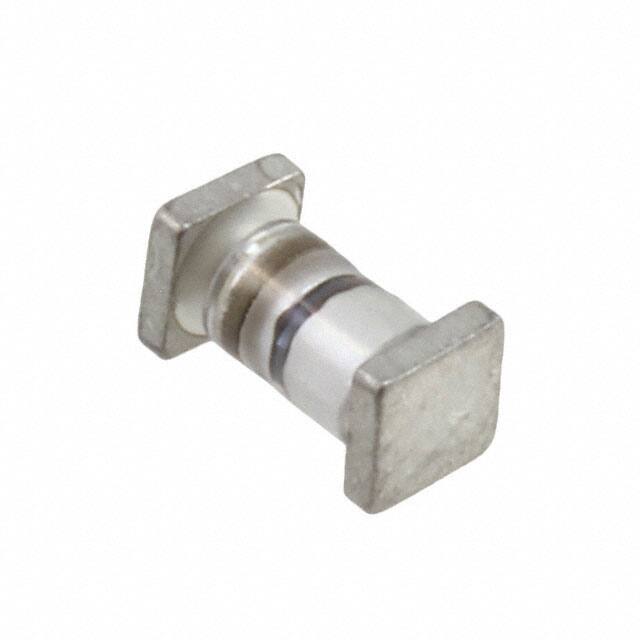

1N4481USDIODE ZENER 47V 1.5W D5A |
90 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 47 V | ±5% | 1.5 W | 50 Ohms | 50 nA @ 37.6 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5A |
|
1N4476USDIODE ZENER 30V 1.5W SQ-MELF |
57 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 30 V | ±5% | 1.5 W | 20 Ohms | 50 nA @ 24 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
JANTX1N749AUR-1DIODE ZENER 4.3V 500MW DO213AA |
43 |
|
Datasheet |
- | DO-213AA (Glass) | Bulk | Discontinued at Digi-Key | 4.3 V | ±5% | 500 mW | 500 Ohms | 50 nA @ 104 V | 1.4 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/533 | Surface Mount | DO-213AA |
|
JANTX1N4615-1DIODE ZENER 2V 500MW DO35 |
16 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Discontinued at Digi-Key | 2 V | ±5% | 500 mW | 1250 Ohms | 5 µA @ 1 V | - | - | Military | MIL-PRF-19500/435 | Through Hole | DO-35 |
|
|
JANTXV1N5529B-1DIODE ZENER 9.1V DO35 |
92 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Discontinued at Digi-Key | 9.1 V | ±5% | - | 45 Ohms | 100 nA @ 8.2 V | - | -65°C ~ 175°C | Military | MIL-PRF-19500/437 | Through Hole | DO-35 |
|
1N992ADIODE ZENER 200V 500MW DO7 |
41 |
|
Datasheet |
- | DO-204AA, DO-7, Axial | Bulk | Discontinued at Digi-Key | 200 V | ±10% | 500 mW | 2500 Ohms | 5 µA @ 152 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Through Hole | DO-7 |
|
|
JANTXV1N4572A-1DIODE ZENER 6.4V 500MW DO35 |
54 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Discontinued at Digi-Key | 6.4 V | ±5% | 500 mW | 100 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | Military | MIL-PRF-19500/452 | Through Hole | DO-35 |
|
|
JANTX1N4573A-1DIODE ZENER 6.4V 500MW DO35 |
57 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Discontinued at Digi-Key | 6.4 V | ±5% | 500 mW | 100 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | Military | MIL-PRF-19500/452 | Through Hole | DO-35 |
|
|
JANTX1N6326DIODE ZENER 11V 500MW DO35 |
100 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Discontinued at Digi-Key | 11 V | ±5% | 500 mW | 7 Ohms | 1 µA @ 11 V | 1.4 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/533 | Through Hole | DO-35 |
|
|
JANTXV1N5526BUR-1DIODE ZENER 6.8V DO213AA |
92 |
|
Datasheet |
- | DO-213AA (Glass) | Bulk | Discontinued at Digi-Key | 6.8 V | ±5% | - | 30 Ohms | 100 nA @ 6.8 V | - | -65°C ~ 175°C | Military | MIL-PRF-19500/437 | Surface Mount | DO-213AA |
|
|
1N5533CUR-1/TRDIODE ZENER 13V 500MW DO213AA |
100 |
|
Datasheet |
- | DO-213AA | Tape & Reel (TR) | Active | 13 V | ±2% | 500 mW | 90 Ohms | 10 nA @ 11.7 V | 1.1 V @ 200 mA | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DO-213AA |
|
|
1N4988US/TRDIODE ZENER 180V 5W E-MELF |
68 |
|
Datasheet |
- | SQ-MELF, E | Tape & Reel (TR) | Active | 180 V | ±5% | 5 W | 450 Ohms | 2 µA @ 136.8 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | E-MELF |
|
|
JANTX1N6326DIODE ZENER 12V 500MW DO204AH |
48 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 12 V | ±5% | 500 mW | 7 Ohms | 1 µA @ 9 V | 1.4 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/533 | Through Hole | DO-204AH (DO-35) |
|
|
JANTX1N6324DIODE ZENER 10V 500MW DO204AH |
6 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 10 V | ±5% | 500 mW | 6 Ohms | 1 µA @ 8 V | 1.4 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/533 | Through Hole | DO-204AH (DO-35) |
|
|
JANTXV1N4572AUR-1DIODE ZENER 6.4V 500MW DO213AA |
74 |
|
Datasheet |
- | DO-213AA (Glass) | Bulk | Discontinued at Digi-Key | 6.4 V | ±5% | 500 mW | 100 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | Military | MIL-PRF-19500/452 | Surface Mount | DO-213AA |
|
JANTX1N4625UR-1DIODE ZENER 5.1V 500MW DO213AA |
23 |
|
Datasheet |
- | DO-213AA | Bulk | Discontinued at Digi-Key | 5.1 V | ±5% | 500 mW | 1500 Ohms | 10 µA @ 3 V | - | - | Military | MIL-PRF-19500/435 | Surface Mount | DO-213AA |
|
|
JANTX1N4477USDIODE ZENER 33V 1.5W SQ-MELF |
81 |
|
- |
- | SQ-MELF, A | Bulk | Active | 33 V | ±5% | 1.5 W | 25 Ohms | 50 nA @ 26.4 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | A, SQ-MELF |
|
JANTX1N4461USDIODE ZENER 6.8V 1.5W D5A |
56 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 6.8 V | ±5% | 1.5 W | 200 Ohms | 5 µA @ 4.08 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Surface Mount | D-5A |
|
|
JANTX1N4473USDIODE ZENER 22V 1.5W D5A |
100 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 22 V | ±5% | 1.5 W | 14 Ohms | 50 nA @ 17.6 V | 1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Surface Mount | D-5A |
|
|
JANTX1N4472USDIODE ZENER 20V 1.5W D5A |
67 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 20 V | ±5% | 1.5 W | 650 Ohms | 50 nA @ 16 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Surface Mount | D-5A |
Single Zener Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Zener Diodes?
This category includes related Single Zener Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Zener Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Zener Diodes and other electronic components.
