Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZT52H-A22-QXDIODE ZENER 22V 375MW SOD123F |
139 |
|
Datasheet |
BZT52H-Q | SOD-123F | Tape & Reel (TR) | Active | 22 V | ±1% | 375 mW | 25 Ohms | 50 nA @ 15.4 V | 900 mV @ 10 mA | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
BZX384-A4V7-QXDIODE ZENER 4.7V 300MW SOD323 |
108 |
|
Datasheet |
BZX384-Q | SC-76, SOD-323 | Tape & Reel (TR) | Active | 4.7 V | ±1% | 300 mW | 80 Ohms | 3 µA @ 2 V | 1.1 V @ 100 mA | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SZ1SMB5934BT3GDIODE ZENER 24V 3W SMB |
711 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | 24 V | ±5% | 3 W | 19 Ohms | 1 µA @ 18.2 V | 1.5 V @ 200 mA | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SMB |
|
CMZ5928B TR13 PBFREEDIODE ZENER 13V 500MW SMA |
394 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 13 V | ±5% | 500 mW | 7 Ohms | 1 µA @ 9.9 V | 1.5 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
1N754ADIODE ZENER 6.8V 500MW DO7 |
42 |
|
Datasheet |
- | DO-204AA, DO-7, Axial | Bulk | Active | 6.8 V | ±5% | 500 mW | 5 Ohms | 2 µA @ 4 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Through Hole | DO-7 (DO-204AA) |
|
CDLL4689DIODE ZENER 5.1V 500MW DO213AA |
49 |
|
Datasheet |
- | DO-213AA | Bulk | Active | 5.1 V | ±5% | 500 mW | - | 10 µA @ 3 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AA |
|
|
1N935BDIODE ZENER 9V 500MW DO7 |
53 |
|
Datasheet |
- | DO-204AA, DO-7, Axial | Bulk | Active | 9 V | ±5% | 500 mW | 20 Ohms | - | - | -65°C ~ 175°C | - | - | Through Hole | DO-7 |
|
1N4568A-1DIODE ZENER 6.4V 500MW DO204AH |
69 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 6.4 V | ±5% | 500 mW | 200 Ohms | 2 mA @ 3 V | - | -65°C ~ 175°C | - | - | Through Hole | DO-204AH (DO-35) |
|
|
1N936BDIODE ZENER 9V 500MW DO204AH |
47 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 9 V | - | 500 mW | 20 Ohms | 10 µA @ 6 V | - | -65°C ~ 175°C | - | - | Through Hole | DO-204AH (DO-35) |
|
JANTX1N4471DIODE ZENER 18V 1.5W DO204AL |
91 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Active | 18 V | ±5% | 1.5 W | 650 Ohms | 50 nA @ 14.4 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Through Hole | DO-204AL (DO-41) |
|
|
1N6328USDIODE ZENER 15V 500MW SQ-MELF |
57 |
|
Datasheet |
- | SQ-MELF, B | Bulk | Active | 15 V | ±5% | 500 mW | 10 Ohms | 50 nA @ 11 V | 1.4 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | B, SQ-MELF |
|
|
JANTXV1N4461US/TRDIODE ZENER 6.8V 1.5W D5A |
119 |
|
Datasheet |
- | SQ-MELF, A | Tape & Reel (TR) | Active | 6.8 V | ±5% | 1.5 W | 2.5 Ohms | 5 µA @ 4.08 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | D-5A |
|
|
1N6317USDIODE ZENER 5.1V 500MW SQ-MELF |
94 |
|
Datasheet |
- | SQ-MELF, B | Bulk | Active | 5.1 V | ±5% | 500 mW | 14 Ohms | 5 µA @ 2 V | 1.4 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | B, SQ-MELF |
|

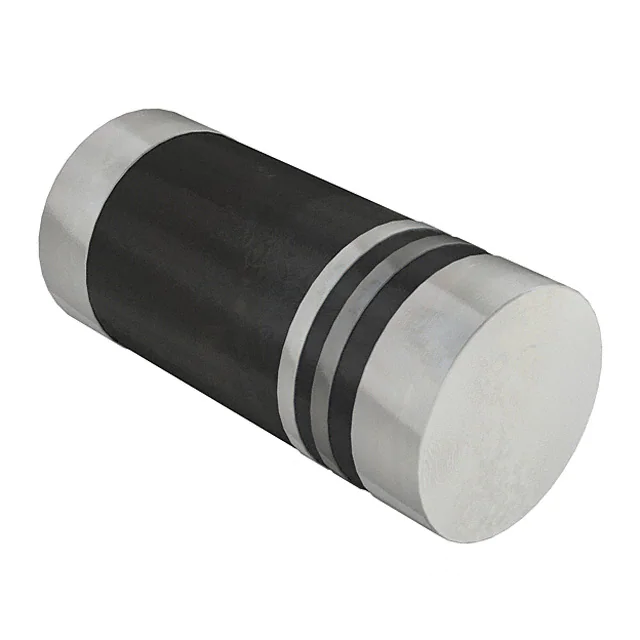

1N829UR-1DIODE ZENER 6.2V 500MW DO213AA |
28 |
|
Datasheet |
- | DO-213AA | Bulk | Active | 6.2 V | ±5% | 500 mW | 15 Ohms | 2 µA @ 3 V | - | -55°C ~ 175°C | - | - | Surface Mount | DO-213AA |
|
1N2976BDIODE ZENER 12V 10W DO213AA |
39 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | 12 V | ±5% | 10 W | 3 Ohms | 10 µA @ 9.1 V | 1.5 V @ 2 A | -65°C ~ 175°C | - | - | Chassis, Stud Mount | DO-213AA |
|
JANS1N6326USDIODE ZENER 12V 500MW SQ-MELF |
15 |
|
Datasheet |
- | SQ-MELF, B | Bulk | Active | 12 V | ±5% | 500 mW | 7 Ohms | 1 µA @ 9 V | 1.4 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/533 | Surface Mount | B, SQ-MELF |
|
BZX55B13-TAPDIODE ZENER 13V 500MW DO204AH |
994 |
|
Datasheet |
BZX55 | DO-204AH, DO-35, Axial | Cut Tape (CT) | Active | 13 V | ±2% | 500 mW | 26 Ohms | 100 nA @ 10 V | 1.5 V @ 200 mA | -65°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AH (DO-35) |
|
BZT52C39-TPDIODE ZENER 39V 500MW SOD123 |
966 |
|
Datasheet |
- | SOD-123 | Tape & Reel (TR) | Active | 39 V | ±5% | 500 mW | 130 Ohms | 100 nA @ 27.3 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOD-123 |
|
BZX79-C24,143DIODE ZENER 24V 400MW ALF2 |
892 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Cut Tape (CT) | Active | 24 V | ±5% | 400 mW | 70 Ohms | 50 nA @ 16.8 V | 900 mV @ 10 mA | -65°C ~ 200°C | - | - | Through Hole | ALF2 |
|
|
BZX79-C13,133DIODE ZENER 13V 400MW ALF2 |
738 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Cut Tape (CT) | Active | 13 V | ±5% | 400 mW | 30 Ohms | 100 nA @ 8 V | 900 mV @ 10 mA | -65°C ~ 200°C | - | - | Through Hole | ALF2 |
Single Zener Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Zener Diodes?
This category includes related Single Zener Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Zener Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Zener Diodes and other electronic components.
