Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

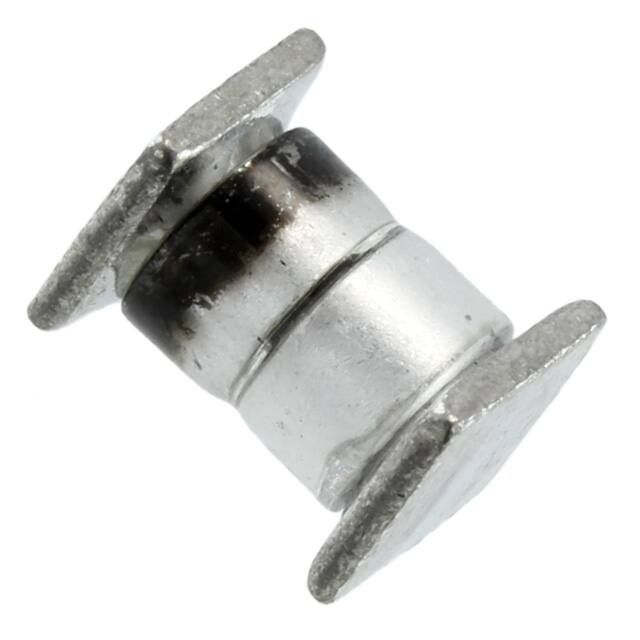

JANTX1N6633USDIODE ZENER 3.6V 5W D5B |
5,855 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | 3.6 V | ±5% | 5 W | 2.5 Ohms | 250 µA @ 1 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
JANTXV1N4995DIODE ZENER 360V 5W E-AXIAL |
4,854 |
|
Datasheet |
- | E, Axial | Bulk | Active | 360 V | ±5% | 5 W | 1400 Ohms | 2 µA @ 274 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Through Hole | E, Axial |
|
ZPY100-TAPDIODE ZENER 100V 1.3W DO204AL |
4,707 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Box (TB) | Obsolete | 100 V | ±5% | 1.3 W | 130 Ohms | 500 nA @ 75 V | - | 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AL (DO-41) |
|
|
ZPY82-TAPDIODE ZENER 82V 1.3W DO204AL |
6,972 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Box (TB) | Obsolete | 82 V | ±5% | 1.3 W | 1 Ohms | 500 nA @ 6 V | - | 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AL (DO-41) |
|
|
ZPY91-TAPDIODE ZENER 91V 1.3W DO204AL |
2,739 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Cut Tape (CT) | Obsolete | 91 V | ±5% | 1.3 W | 120 Ohms | 500 nA @ 68 V | - | 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AL (DO-41) |
|
ZM4762A-GS18DIODE ZENER 82V 1W DO213AB |
6,780 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Obsolete | 82 V | ±5% | 1 W | 200 Ohms | 5 µA @ 62.2 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
|
ZM4763A-GS18DIODE ZENER 91V 1W DO213AB |
7,686 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Obsolete | 91 V | ±5% | 1 W | 250 Ohms | 5 µA @ 69.2 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
|
ZM4764A-GS18DIODE ZENER 100V 1W DO213AB |
8,088 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Obsolete | 100 V | ±5% | 1 W | 350 Ohms | 5 µA @ 76 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
ZMY100-GS18DIODE ZENER 100V 1W DO213AB |
7,382 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Obsolete | 100 V | ±5% | 1 W | 250 Ohms | 50 µA @ 75 V | - | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
|
ZMY82-GS18DIODE ZENER 82V 1W DO213AB |
2,649 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Obsolete | 82 V | ±5% | 1 W | 160 Ohms | 500 nA @ 61 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
|
ZMYB8V2-GS18DIODE ZENER 8.2V 1W DO213AB |
5,097 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Active | 8.2 V | ±5% | 1 W | 2 Ohms | 500 nA @ 6 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
|
ZPY100-TRDIODE ZENER 100V 1.3W DO204AL |
7,539 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | 100 V | ±5% | 1.3 W | 130 Ohms | 500 nA @ 75 V | - | 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AL (DO-41) |
|
|
ZPY82-TRDIODE ZENER 82V 1.3W DO204AL |
4,405 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | 82 V | ±5% | 1.3 W | 1 Ohms | 500 nA @ 6 V | - | 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AL (DO-41) |
|
|
ZPY91-TRDIODE ZENER 120V 1.3W DO204AL |
5,407 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | 120 V | ±5% | 1.3 W | 120 Ohms | 500 nA @ 68 V | - | 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AL (DO-41) |
|
|
ZM4762A-GS08DIODE ZENER 82V 1W DO213AB |
3,823 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Obsolete | 82 V | ±5% | 1 W | 200 Ohms | 5 µA @ 62.2 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
|
ZM4763A-GS08DIODE ZENER 91V 1W DO213AB |
8,892 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Obsolete | 91 V | ±5% | 1 W | 250 Ohms | 5 µA @ 69.2 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
|
ZMY100-GS08DIODE ZENER 100V 1W DO213AB |
6,993 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Obsolete | 100 V | ±5% | 1 W | 250 Ohms | 500 nA @ 75 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
|
ZMY82-GS08DIODE ZENER 82V 1W DO213AB |
6,291 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Obsolete | 82 V | ±5% | 1 W | 160 Ohms | 500 nA @ 61 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
|
ZMY91-GS08DIODE ZENER 91V 1W DO213AB |
8,476 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Obsolete | 91 V | ±5% | 1 W | 250 Ohms | 500 nA @ 68 V | - | 175°C | Automotive | AEC-Q101 | Surface Mount | DO-213AB |
|
CMKTC825A TR PBFREEDIODE ZENER 6.2V 325MW SOT363 |
5,505 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 6.2 V | ±5% | 325 mW | 20 Ohms | - | - | -65°C ~ 150°C | - | - | Surface Mount | SOT-363 |
