Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANS1N4982US/TRVOLTAGE REGULATOR |
3,219 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | Military | MIL-PRF-19500/356 | - | - |
|
JANS1N4469USDIODE ZENER 15V 1.5W D5A |
6,572 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Discontinued at Digi-Key | 15 V | ±5% | 1.5 W | 600 Ohms | 50 nA @ 12 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Surface Mount | D-5A |
|
|
JANS1N4474USDIODE ZENER 24V 1.5W SQ-MELF |
5,200 |
|
- |
- | SQ-MELF, A | Bulk | Active | 24 V | ±5% | 1.5 W | 16 Ohms | 50 nA @ 19.2 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | A, SQ-MELF |
|
|
JANS1N4478USDIODE ZENER 36V 1.5W SQ-MELF |
4,285 |
|
- |
- | SQ-MELF, A | Bulk | Active | 36 V | ±5% | 1.5 W | 27 Ohms | 50 nA @ 28.8 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | A, SQ-MELF |
|
|
JANS1N4461USDIODE ZENER 6.8V 1.5W SQ-MELF |
3,825 |
|
- |
- | SQ-MELF, A | Bulk | Active | 6.8 V | ±5% | 1.5 W | 2.5 Ohms | 5 µA @ 4.08 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | A, SQ-MELF |
|
|
JANS1N4463USDIODE ZENER 8.2V 1.5W SQ-MELF |
4,273 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 8.2 V | ±5% | 1.5 W | 3 Ohms | 500 nA @ 4.92 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | A, SQ-MELF |
|

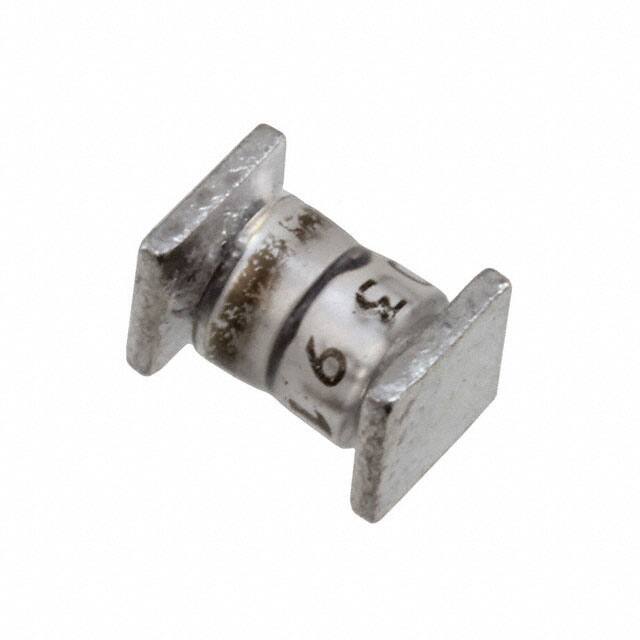

JANS1N4962USDIODE ZENER 15V 5W D5B |
7,888 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | 15 V | ±5% | 5 W | 3.5 Ohms | 5 µA @ 11.4 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|

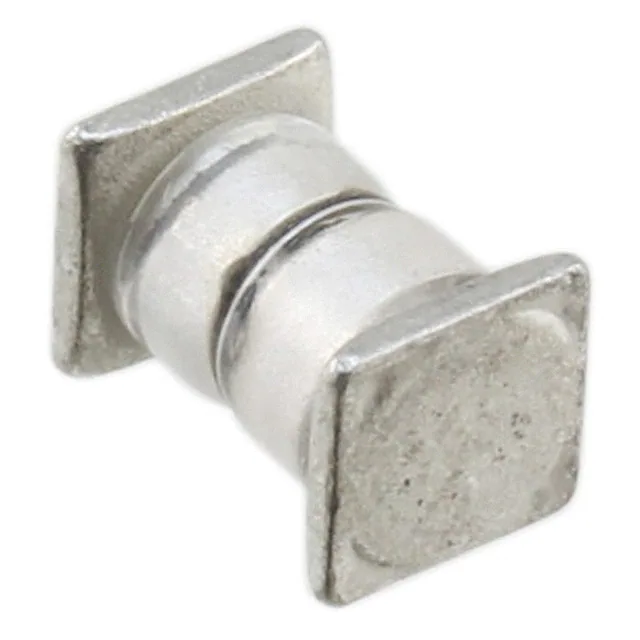

JANS1N4965USDIODE ZENER 20V 5W D5B |
8,623 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | 20 V | ±5% | 5 W | 4.5 Ohms | 2 µA @ 15.2 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
JANS1N4971USDIODE ZENER 36V 5W D5B |
9,450 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | 36 V | ±5% | 5 W | 11 Ohms | 2 µA @ 27.4 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
|
JANS1N4963USDIODE ZENER 16V 5W D5B |
3,383 |
|
- |
- | SQ-MELF, E | Bulk | Active | 16 V | ±5% | 5 W | 3.5 Ohms | 5 µA @ 12.2 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
|
JANS1N4967USDIODE ZENER 24V 5W D5B |
2,566 |
|
- |
- | SQ-MELF, E | Bulk | Active | 24 V | ±5% | 5 W | 5 Ohms | 2 µA @ 18.2 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
|
JANS1N4964USDIODE ZENER 18V 5W D5B |
8,680 |
|
- |
- | SQ-MELF, E | Bulk | Active | 18 V | ±5% | 5 W | 4 Ohms | 5 µA @ 13.7 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
JANS1N4469US/TRDIODE ZENER 15V 1.5W D5A |
9,705 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | 15 V | ±5% | 1.5 W | 600 Ohms | 50 nA @ 12 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Surface Mount | D-5A |
|
JANS1N4462US/TRDIODE ZENER 7.5V 1.5W SQ-MELF |
4,484 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | 7.5 V | ±5% | 1.5 W | 2.5 Ohms | 1 µA @ 4.5 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | A, SQ-MELF |
|
|
JANS1N4460US/TRDIODE ZENER 6.2V 1.5W SQ-MELF |
7,308 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | 6.2 V | ±5% | 1.5 W | 4 Ohms | 10 µA @ 3.72 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | A, SQ-MELF |
|
|
JANS1N4468US/TRDIODE ZENER 13V 1.5W D5A |
5,085 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | 13 V | ±5% | 1.5 W | 8 Ohms | 50 nA @ 10.4 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Surface Mount | D-5A |
|
|
JANS1N4465US/TRDIODE ZENER 10V 1.5W SQ-MELF |
9,503 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | 10 V | ±5% | 1.5 W | 5 Ohms | 300 nA @ 8 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | A, SQ-MELF |
|
|
JANS1N4480US/TRDIODE ZENER 43V 1.5W SQ-MELF |
6,262 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | 43 V | ±5% | 1.5 W | 40 Ohms | 50 nA @ 34.4 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | A, SQ-MELF |
|
|
JANS1N4467US/TRDIODE ZENER 12V 1.5W D5A |
8,799 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | 12 V | ±5% | 1.5 W | 7 Ohms | 200 nA @ 9.6 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Surface Mount | D-5A |
|
|
JANS1N4475US/TRDIODE ZENER 27V 1.5W SQ-MELF |
7,212 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | 27 V | ±5% | 1.5 W | 18 Ohms | 50 nA @ 21.6 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/406 | Surface Mount | A, SQ-MELF |
Single Zener Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Zener Diodes?
This category includes related Single Zener Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Zener Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Zener Diodes and other electronic components.
