Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

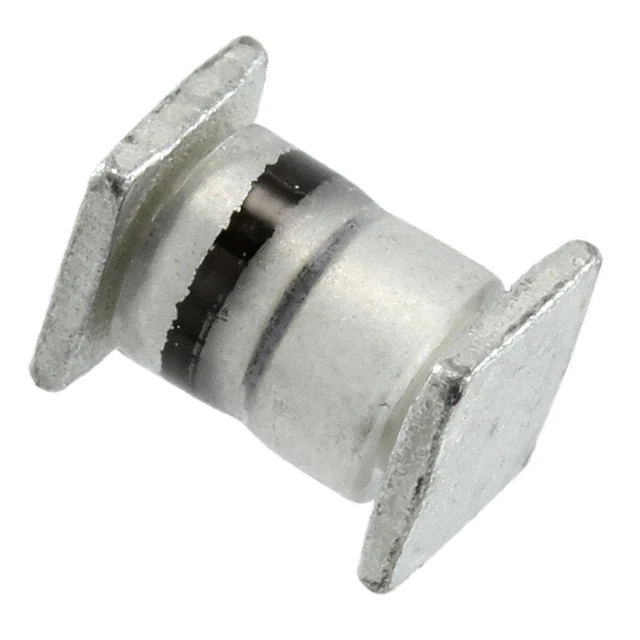

1N4980USDIODE ZENER 82V 5W D5B |
7,610 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | 82 V | ±5% | 5 W | 80 Ohms | 2 µA @ 62.2 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
|
1N4981USDIODE ZENER 91V 5W D5B |
8,368 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | 91 V | ±5% | 5 W | 90 Ohms | 2 µA @ 69.2 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
JANTX1N3827A-1DIODE ZENER 5.6V 1W DO41 |
9,010 |
|
- |
- | DO-204AL, DO-41, Axial | Bulk | Active | 5.6 V | ±5% | 1 W | 5 Ohms | 3 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 175°C (TA) | Military | MIL-PRF-19500/115 | Through Hole | DO-41 |
|
1N4471DIODE ZENER 18V 1.5W DO204AL |
9,949 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Active | 18 V | ±5% | 1.5 W | 11 Ohms | 50 nA @ 14.4 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
1N4975US/TRDIODE ZENER 51V 5W D5B |
4,713 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | 51 V | ±5% | 5 W | 27 Ohms | 2 µA @ 38.8 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
JAN1N4099C-1/TRDIODE ZENER 6.8V DO204AH |
7,720 |
|
- |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | 6.8 V | ±2% | - | 200 Ohms | 1 µA @ 5.2 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/435 | Through Hole | DO-204AH (DO-35) |
|
|
1N4964US/TRDIODE ZENER 18V 5W D5B |
6,463 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | 18 V | ±5% | 5 W | 4 Ohms | 5 µA @ 13.7 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
JANTX1N4370AUR-1/TRDIODE ZENER 2.4V 500MW DO213AA |
7,153 |
|
- |
- | DO-213AA | Tape & Reel (TR) | Active | 2.4 V | ±5% | 500 mW | 30 Ohms | 100 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/127 | Surface Mount | DO-213AA |
|
|
1N4971US/TRDIODE ZENER 36V 5W D5B |
6,377 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | 36 V | ±5% | 5 W | 11 Ohms | 2 µA @ 27.4 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
|
1N4965US/TRDIODE ZENER 20V 5W D5B |
8,428 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | 20 V | ±5% | 5 W | 4.5 Ohms | 2 µA @ 15.2 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
JANTXV1N4371AUR-1/TRDIODE ZENER 2.7V 500MW DO213AA |
5,009 |
|
- |
- | DO-213AA | Tape & Reel (TR) | Active | 2.7 V | ±5% | 500 mW | 30 Ohms | 60 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/435 | Surface Mount | DO-213AA |
|
|
1N4972US/TRDIODE ZENER 39V 5W E-MELF |
5,761 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | 39 V | ±5% | 5 W | 14 Ohms | 2 µA @ 29.7 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Through Hole | E-MELF |
|
|
1N4970US/TRDIODE ZENER 33V 5W D5B |
3,779 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | 33 V | ±5% | 5 W | 10 Ohms | 2 µA @ 25.1 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
CDLL4582A/TRDIODE ZENER 500MW DO213AA |
7,612 |
|
Datasheet |
- | DO-213AA | Tape & Reel (TR) | Active | - | - | 500 mW | 25 Ohms | 2 µA @ 3 V | - | -55°C ~ 100°C | - | - | Surface Mount | DO-213AA |
|
|
1N4974US/TRDIODE ZENER 47V 5W D5B |
8,726 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | 47 V | ±5% | 5 W | 25 Ohms | 2 µA @ 35.8 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
CDLL5527B/TRDIODE ZENER 7.5V 500MW DO213AB |
2,791 |
|
- |
- | DO-213AB, MELF | Tape & Reel (TR) | Active | 7.5 V | ±5% | 500 mW | 35 Ohms | 500 nA @ 6.8 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AB |
|
|
1N4567AUR-1DIODE ZENER 500MW DO213AA |
9,780 |
|
Datasheet |
- | DO-213AA | Bulk | Active | - | - | 500 mW | 200 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | - | - | Surface Mount | DO-213AA |
|
|
CDLL4567DIODE ZENER 500MW DO213AA |
6,525 |
|
Datasheet |
- | DO-213AA | Bulk | Active | - | - | 500 mW | 200 Ohms | 2 µA @ 3 V | - | 0°C ~ 75°C | - | - | Surface Mount | DO-213AA |
|
|
JANTX1N4101-1/TRDIODE ZENER 8.2V 500MW DO204AH |
9,287 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | 8.2 V | ±5% | 500 mW | 200 Ohms | 500 nA @ 6.3 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/435 | Through Hole | DO-204AH (DO-35) |
|
JANTX1N4620UR-1/TRDIODE ZENER 3.3V 500MW DO213AA |
8,861 |
|
- |
- | DO-213AA | Tape & Reel (TR) | Active | 3.3 V | ±5% | 500 mW | 1650 Ohms | 7.5 µA @ 1.5 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/435 | Surface Mount | DO-213AA |
