Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZV55C22-TPDIODE ZENER 22V 500MW MINI MELF |
6,568 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 22 V | ±6% | 500 mW | 55 Ohms | 100 nA @ 16 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|

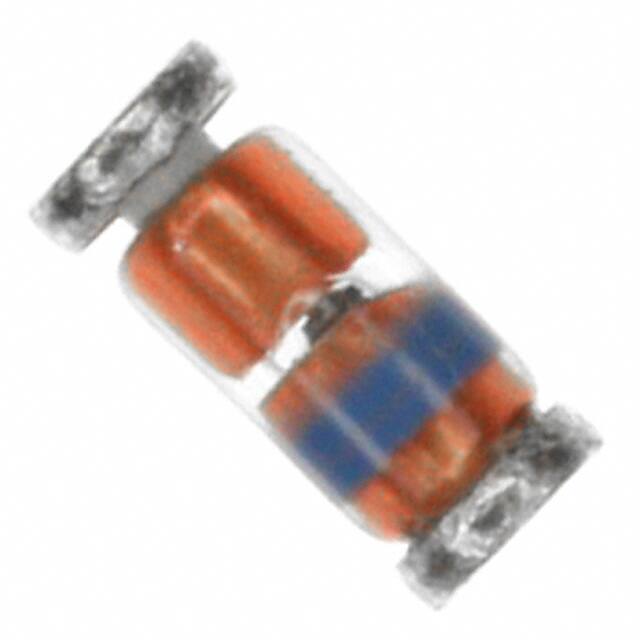

BZV55C27-TPDIODE ZENER 27V 500MW MINI MELF |
4,647 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 27 V | ±7% | 500 mW | 80 Ohms | 100 nA @ 20 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
BZV55C3V3-TPDIODE ZENER 3.3V 500MW MINI MELF |
9,534 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 3.3 V | ±6% | 500 mW | 85 Ohms | 2 µA @ 1 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
|
BZV55C3V6-TPDIODE ZENER 3.6V 500MW MINI MELF |
7,728 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 3.6 V | ±6% | 500 mW | 85 Ohms | 2 µA @ 1 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
BZV55C4V3-TPDIODE ZENER 4.3V 500MW MINI MELF |
8,041 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 4.3 V | ±7% | 500 mW | 75 Ohms | 1 µA @ 1 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
BZV55C4V7-TPDIODE ZENER 4.7V 500MW MINI MELF |
7,018 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 4.7 V | ±6% | 500 mW | 60 Ohms | 500 nA @ 1 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
|
BZV55C5V1-TPDIODE ZENER 5.1V 500MW MINI MELF |
8,969 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 5.1 V | ±6% | 500 mW | 35 Ohms | 100 nA @ 1 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
|
BZV55C5V6-TPDIODE ZENER 5.6V 500MW MINI MELF |
5,790 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 5.6 V | ±7% | 500 mW | 25 Ohms | 100 nA @ 1 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
|
BZV55C6V2-TPDIODE ZENER 6.2V 500MW MINI MELF |
8,045 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 6.2 V | ±6% | 500 mW | 10 Ohms | 100 nA @ 2 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
|
BZV55C8V2-TPDIODE ZENER 8.2V 500MW MINI MELF |
4,855 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 8.2 V | ±6% | 500 mW | 7 Ohms | 100 nA @ 6.2 V | 1.5 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | Mini MELF |
|
DL5226B-TPDIODE ZENER 3.3V 500MW MINI MELF |
6,141 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 3.3 V | ±5% | 500 mW | 28 Ohms | 25 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5230B-TPDIODE ZENER 4.7V 500MW MINI MELF |
6,140 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 4.7 V | ±5% | 500 mW | 19 Ohms | 5 µA @ 2 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5233B-TPDIODE ZENER 6V 500MW MINI MELF |
2,276 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 6 V | ±5% | 500 mW | 7 Ohms | 5 µA @ 3.5 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5239B-TPDIODE ZENER 9.1V 500MW MINI MELF |
6,960 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 9.1 V | ±5% | 500 mW | 10 Ohms | 3 µA @ 7 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5242B-TPDIODE ZENER 12V 500MW MINI MELF |
9,973 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 12 V | ±5% | 500 mW | 30 Ohms | 1 µA @ 9.1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5243B-TPDIODE ZENER 13V 500MW MINI MELF |
2,985 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 13 V | ±5% | 500 mW | 13 Ohms | 500 nA @ 9.9 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5248B-TPDIODE ZENER 18V 500MW MINI MELF |
7,008 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 18 V | ±5% | 500 mW | 21 Ohms | 100 nA @ 14 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5255B-TPDIODE ZENER 28V 500MW MINI MELF |
8,086 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 28 V | ±5% | 500 mW | 44 Ohms | 100 nA @ 21 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
1PMT4625CE3/TR7DIODE ZENER 5.1V 1W DO216 |
9,406 |
|
Datasheet |
POWERMITE® | DO-216AA | Tape & Reel (TR) | Active | 5.1 V | ±2% | 1 W | 1500 Ohms | 10 µA @ 3 V | 1.1 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | DO-216 |
|
|
1PMT4626CE3/TR13DIODE ZENER 5.6V 1W DO216 |
4,774 |
|
Datasheet |
POWERMITE® | DO-216AA | Tape & Reel (TR) | Active | 5.6 V | ±2% | 1 W | 1400 Ohms | 10 µA @ 4 V | 1.1 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | DO-216 |
Single Zener Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Zener Diodes?
This category includes related Single Zener Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Zener Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Zener Diodes and other electronic components.
