Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

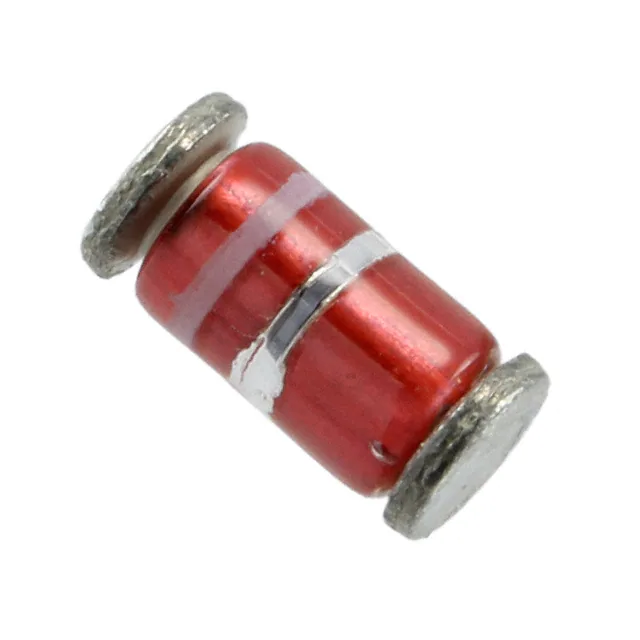

CDLL4614DIODE ZENER 1.8V 500MW DO213AA |
183 |
|
Datasheet |
- | DO-213AA | Bulk | Active | 1.8 V | ±5% | 500 mW | 1200 Ohms | 3.5 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AA |
|
1N823DIODE ZENER 6.2V 500MW DO204AH |
420 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 6.2 V | ±5% | 500 mW | 15 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | - | - | Through Hole | DO-204AH (DO-35) |
|
JANTX1N4616-1DIODE ZENER 2.2V 500MW DO204AH |
115 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 2.2 V | ±5% | 500 mW | 1300 Ohms | 2 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/435 | Through Hole | DO-204AH (DO-35) |
|
JANTX1N4970DIODE ZENER 33V 5W AXIAL |
352 |
|
Datasheet |
- | E, Axial | Bulk | Active | 33 V | ±5% | 5 W | 10 Ohms | 2 µA @ 25.1 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Through Hole | - |
|
1N4960DIODE ZENER 12V 5W AXIAL |
572 |
|
Datasheet |
- | E, Axial | Bulk | Active | 12 V | ±5% | 5 W | 2.5 Ohms | 10 µA @ 9.1 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Through Hole | - |
|
1N4972DIODE ZENER 39V 5W AXIAL |
102 |
|
Datasheet |
- | E, Axial | Bulk | Active | 39 V | ±5% | 5 W | 14 Ohms | 2 µA @ 29.7 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Through Hole | - |
|
JANTX1N4478DIODE ZENER 36V 1.5W DO204AL |
187 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Active | 36 V | ±5% | 1.5 W | 27 Ohms | 50 nA @ 28.8 V | 1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Through Hole | DO-204AL (DO-41) |
|
|
JANTX1N4975DIODE ZENER 51V 5W AXIAL |
228 |
|
Datasheet |
- | E, Axial | Bulk | Active | 51 V | ±5% | 5 W | 27 Ohms | 2 µA @ 38.8 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Through Hole | - |
|
JANTX1N827-1DIODE ZENER 6.2V 500MW DO204AH |
2,065 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 6.2 V | ±5% | 500 mW | 15 Ohms | 2 µA @ 3 V | - | -55°C ~ 175°C | Military | MIL-PRF-19500/159 | Through Hole | DO-204AH (DO-35) |
|
|
JANTX1N4625UR-1DIODE ZENER 5.1V 500MW DO213AA |
321 |
|
Datasheet |
- | DO-213AA | Bulk | Active | 5.1 V | ±5% | 500 mW | 1500 Ohms | 5 µA @ 3 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/435 | Surface Mount | DO-213AA |
|

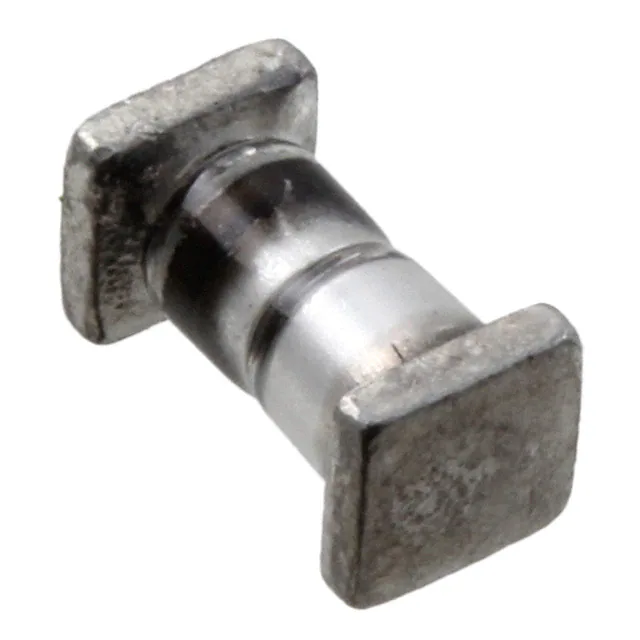

JANTX1N4465USDIODE ZENER 10V 1.5W MELF |
138 |
|
Datasheet |
- | DO-213AB, MELF (Glass) | Bulk | Active | 10 V | ±5% | 1.5 W | 5 Ohms | 300 nA @ 8 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Surface Mount | MELF, D5A |
|
1N6325USDIODE ZENER 11V 500MW SQ-MELF |
103 |
|
Datasheet |
- | SQ-MELF, B | Bulk | Active | 11 V | ±5% | 500 mW | 7 Ohms | 1 µA @ 8.5 V | 1.4 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | B, SQ-MELF |
|
|
JANTX1N6317USDIODE ZENER 5.1V 500MW SQ-MELF |
129 |
|
Datasheet |
- | SQ-MELF, B | Bulk | Active | 5.1 V | ±5% | 500 mW | 14 Ohms | 5 µA @ 2 V | 1.4 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/533 | Surface Mount | B, SQ-MELF |
|
MMBZ5260BLT1GDIODE ZENER 43V 225MW SOT23-3 |
181,703 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 43 V | ±5% | 225 mW | 93 Ohms | 100 nA @ 33 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
MMBZ5254B-7-FDIODE ZENER 27V 350MW SOT23-3 |
87,685 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 27 V | ±5% | 350 mW | 41 Ohms | 100 nA @ 21 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
1N5260B-TRDIODE ZENER 43V 500MW DO204AH |
69,748 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | 43 V | ±5% | 500 mW | 93 Ohms | 100 nA @ 33 V | 1.1 V @ 200 mA | 175°C | - | - | Through Hole | DO-204AH (DO-35) |
|
|
BZX55C18-TAPDIODE ZENER 18V 500MW DO204AH |
69,612 |
|
Datasheet |
BZX55 | DO-204AH, DO-35, Axial | Cut Tape (CT) | Active | 18 V | ±5% | 500 mW | 50 Ohms | 100 nA @ 13 V | 1.5 V @ 200 mA | -65°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AH (DO-35) |
|
|
SZBZX84C5V1LT3GDIODE ZENER 5.1V 250MW SOT23-3 |
62,246 |
|
Datasheet |
SZBZX84CxxxLT1G | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 5.1 V | ±6% | 250 mW | 60 Ohms | 2 µA @ 2 V | 900 mV @ 10 mA | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
1N5241B-TRDIODE ZENER 11V 500MW DO204AH |
62,212 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | 11 V | ±5% | 500 mW | 22 Ohms | 2 µA @ 8.4 V | 1.1 V @ 200 mA | 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AH (DO-35) |
|
|
1N5246B-TRDIODE ZENER 16V 500MW DO204AH |
60,332 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | 16 V | ±5% | 500 mW | 17 Ohms | 100 nA @ 12 V | 1.1 V @ 200 mA | - | - | - | Through Hole | DO-204AH (DO-35) |
