Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TZ03R121E169B00CAP TRIMMER 10-120PF 50V TH |
0 |
|
Datasheet |
TZ03 | Bulk | Obsolete | 10 ~ 120pF | Bottom | 50 V | Ceramic | 300 @ 1MHz | 0.236" Dia (6.00mm) | 0.209" (5.30mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|

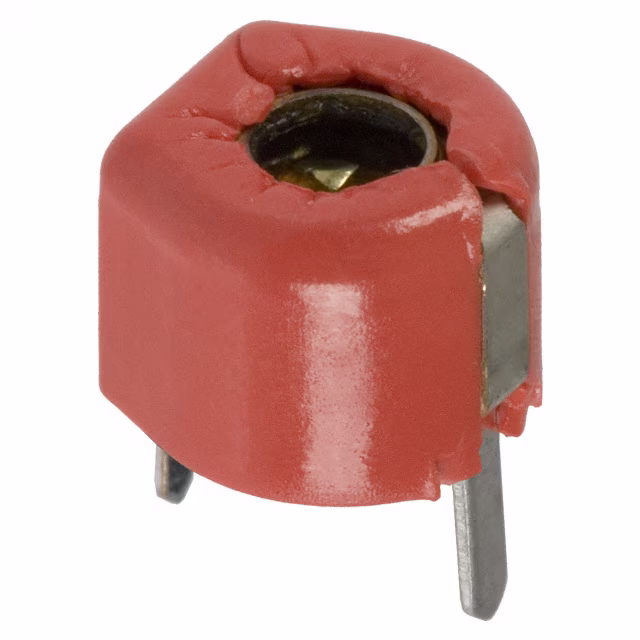

TZ03R200E169B00CAP TRIMMER 4.2-20PF 100V TH |
0 |
|
Datasheet |
TZ03 | Bulk | Obsolete | 4.2 ~ 20pF | Bottom | 100 V | Ceramic | 500 @ 1MHz | 0.236" Dia (6.00mm) | 0.209" (5.30mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|

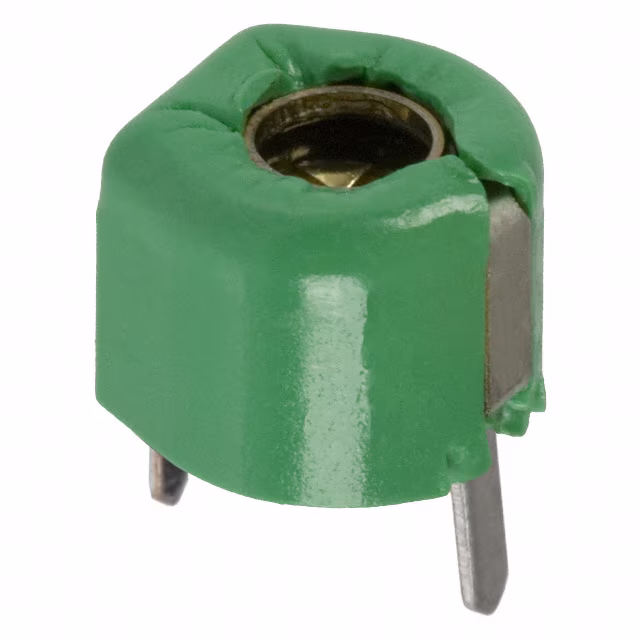

TZ03R300E169B00CAP TRIMMER 5.2-30PF 100V TH |
0 |
|
Datasheet |
TZ03 | Bulk | Obsolete | 5.2 ~ 30pF | Bottom | 100 V | Ceramic | 500 @ 1MHz | 0.236" Dia (6.00mm) | 0.209" (5.30mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|

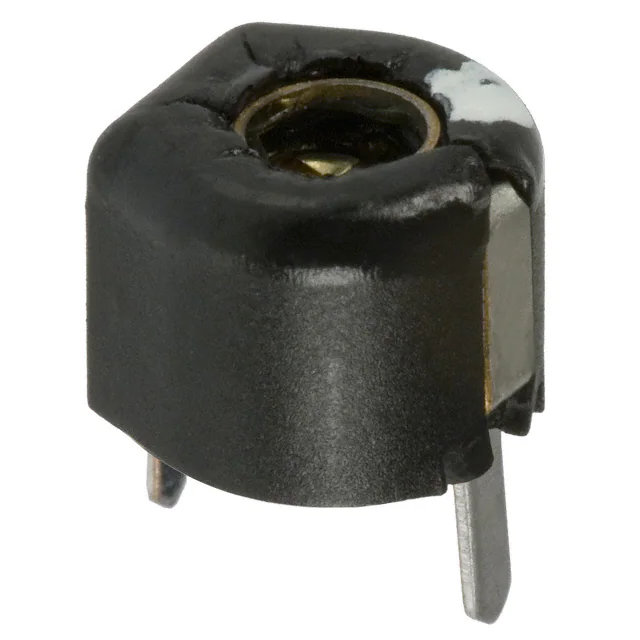

TZ03R900E169B00CAP TRIMMER 9-90PF 50V TH |
0 |
|
Datasheet |
TZ03 | Bulk | Obsolete | 9 ~ 90pF | Bottom | 50 V | Ceramic | 300 @ 1MHz | 0.236" Dia (6.00mm) | 0.209" (5.30mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|
TZ03T110E169B00CAP TRIMMER 3-11PF 100V TH |
0 |
|
Datasheet |
TZ03 | Bulk | Obsolete | 3 ~ 11pF | Bottom | 100 V | Ceramic | 500 @ 1MHz | 0.236" Dia (6.00mm) | 0.209" (5.30mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|
TZ03Z050E169B00CAP TRIMMER 1.5-5PF 100V TH |
0 |
|
Datasheet |
TZ03 | Bulk | Obsolete | 1.5 ~ 5pF | Bottom | 100 V | Ceramic | 500 @ 1MHz | 0.236" Dia (6.00mm) | 0.209" (5.30mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|
TZ03Z070E169B00CAP TRIMMER 2-7PF 100V TH |
0 |
|
Datasheet |
TZ03 | Bulk | Obsolete | 2 ~ 7pF | Bottom | 100 V | Ceramic | 500 @ 1MHz | 0.236" Dia (6.00mm) | 0.209" (5.30mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|

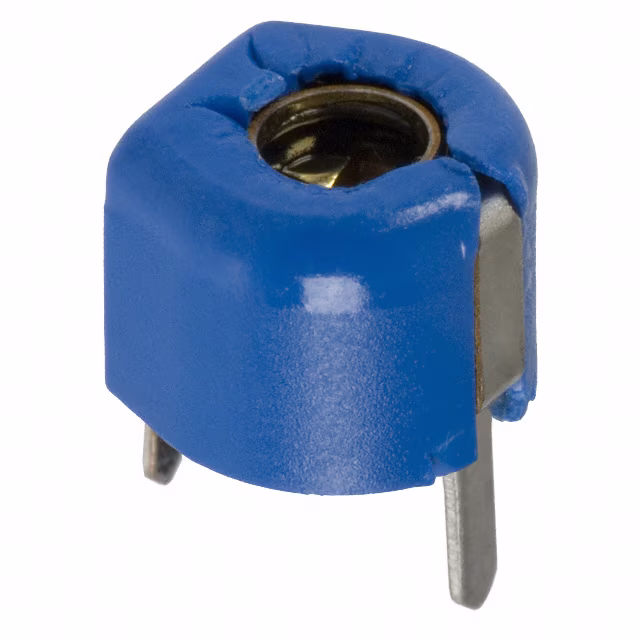

TZ03Z100E169B00CAP TRIMMER 2.7-10PF 100V TH |
0 |
|
Datasheet |
TZ03 | Bulk | Obsolete | 2.7 ~ 10pF | Bottom | 100 V | Ceramic | 500 @ 1MHz | 0.236" Dia (6.00mm) | 0.209" (5.30mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|
TZ03Z2R3E169B00CAP TRIMMER 1.25-2.3PF 100V TH |
0 |
|
Datasheet |
TZ03 | Bulk | Obsolete | 1.25 ~ 2.3pF | Bottom | 100 V | Ceramic | 300 @ 1MHz | 0.236" Dia (6.00mm) | 0.209" (5.30mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|

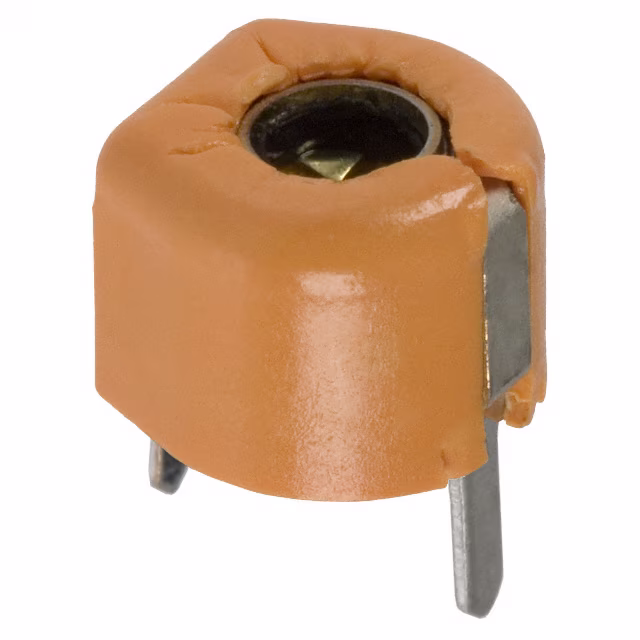

TZ03Z500E169B00CAP TRIMMER 6-50PF 50V TH |
0 |
|
Datasheet |
TZ03 | Bulk | Obsolete | 6 ~ 50pF | Bottom | 50 V | Ceramic | 300 @ 1MHz | 0.236" Dia (6.00mm) | 0.209" (5.30mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|

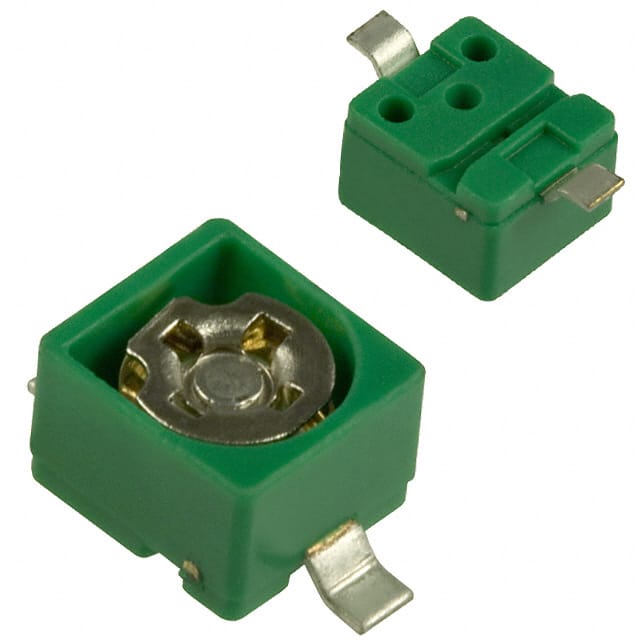

TZB4P300BA10R00CAP TRIMMER 6.5-30PF 100V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 6.5 ~ 30pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4P400BA10R00CAP TRIMMER 8.5-40PF 100V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 8.5 ~ 40pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4R500BA10R00CAP TRIMMER 7-50PF 50V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 7 ~ 50pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

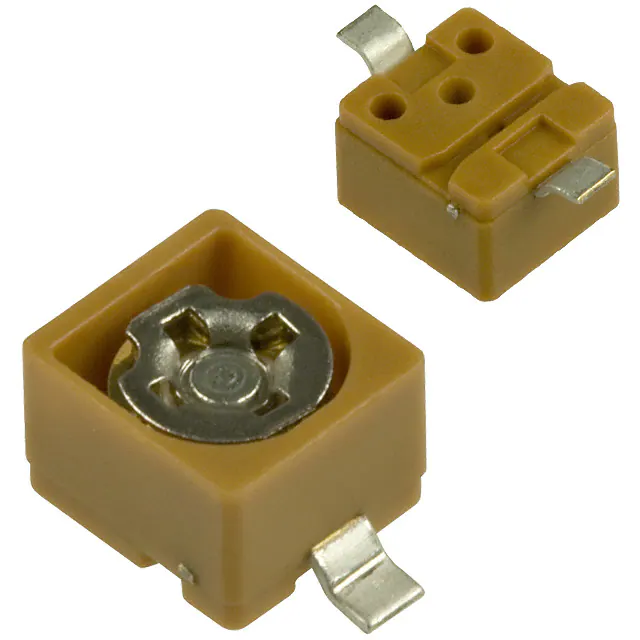

TZB4Z030BA10R00CAP TRIMMER 1.4-3PF 100V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 1.4 ~ 3pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z100BA10R00CAP TRIMMER 3-10PF 100V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 3 ~ 10pF | Top | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z250BA10R00CAP TRIMMER 4-25PF 50V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 4 ~ 25pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZR1Z040A001R00CAP TRIMMER 1.5-4PF 25V SMD |
0 |
|
Datasheet |
TZR1 | Tape & Reel (TR) | Obsolete | 1.5 ~ 4pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.067" L x 0.059" W (1.70mm x 1.50mm) | 0.035" (0.90mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZR1R080A001R00CAP TRIMMER 3-8PF 25V SMD |
0 |
|
Datasheet |
TZR1 | Tape & Reel (TR) | Obsolete | 3 ~ 8pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.067" L x 0.059" W (1.70mm x 1.50mm) | 0.035" (0.90mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZR1Z010A001R00CAP TRIMMER 0.55-1PF 25V SMD |
0 |
|
Datasheet |
TZR1 | Tape & Reel (TR) | Obsolete | 0.55 ~ 1pF | Top | 25 V | Ceramic | 200 @ 200MHz | 0.067" L x 0.059" W (1.70mm x 1.50mm) | 0.035" (0.90mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZR1Z1R5A001R00CAP TRIMMER 0.7-1.5PF 25V SMD |
0 |
|
Datasheet |
TZR1 | Tape & Reel (TR) | Obsolete | 0.7 ~ 1.5pF | Top | 25 V | Ceramic | 200 @ 200MHz | 0.067" L x 0.059" W (1.70mm x 1.50mm) | 0.035" (0.90mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
