Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM-43TW504TRIMMER 500KOHM 0.25W J LEAD TOP |
0 |
|
Datasheet |
SM43 | Tape & Reel (TR) | Active | 500 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 5.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
3009P-1-100ZTRIMMER 10 OHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3009 - Sealed | Tube | Active | 10 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm) |
|
|
3009P-1-103ZTRIMMER 10KOHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3009 - Sealed | Tube | Active | 10 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm) |
|
|
3009P-1-105ZTRIMMER 1M OHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3009 - Sealed | Tube | Active | 1 MOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm) |
|
|
3009P-1-203ZTRIMMER 20KOHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3009 - Sealed | Tube | Active | 20 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm) |
|
|
3009P-1-253ZTRIMMER 25KOHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3009 - Sealed | Tube | Active | 25 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm) |
|
|
3009P-1-501ZTRIMMER 500OHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3009 - Sealed | Tube | Active | 500 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm) |
|
|
3009Y-1-103ZTRIMMER 10KOHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3009 - Sealed | Tube | Active | 10 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm) |
|
3296X-OT1-201TRIMMER 200 OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Obsolete | 200 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) |
|

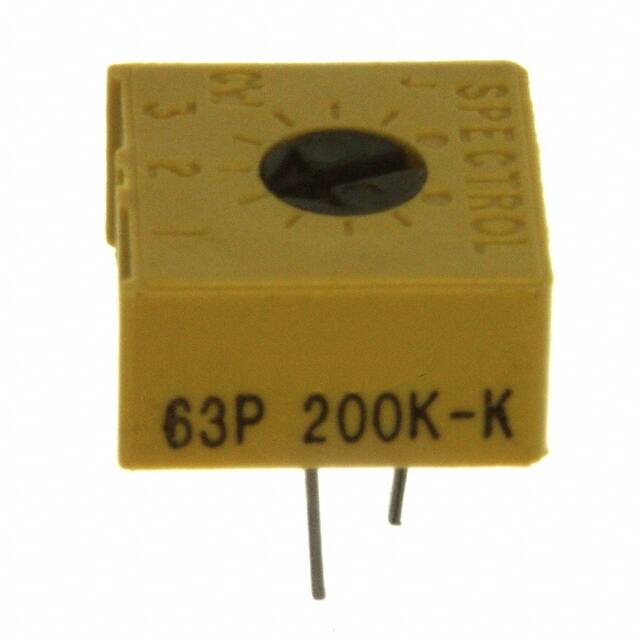

M63P204KB40TRIMMER 200KOHM 0.5W PC PIN SIDE |
0 |
|
Datasheet |
63 | Bulk | Active | 200 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
M63M205KB40TRIMMER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63M254KB40TRIMMER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63P254KB40TRIMMER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63P253KB40TRIMMER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63M504KB40TRIMMER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63M253KB40TRIMMER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63M204KB40TRIMMER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63P101KB40TRIMMER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63M503KB40TRIMMER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63P105KB40TRIMMER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
