Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3269W-1-100GLFTRIMMER 10 OHM 0.25W GW TOP ADJ |
13 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 10 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
3269X-1-502LFTRIMMER 5K OHM 0.25W GW SIDE ADJ |
9 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-202LFTRIMMER 2K OHM 0.25W GW TOP ADJ |
1 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-504LFTRIMMER 500K OHM 0.25W GW TOP |
0 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 500 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|

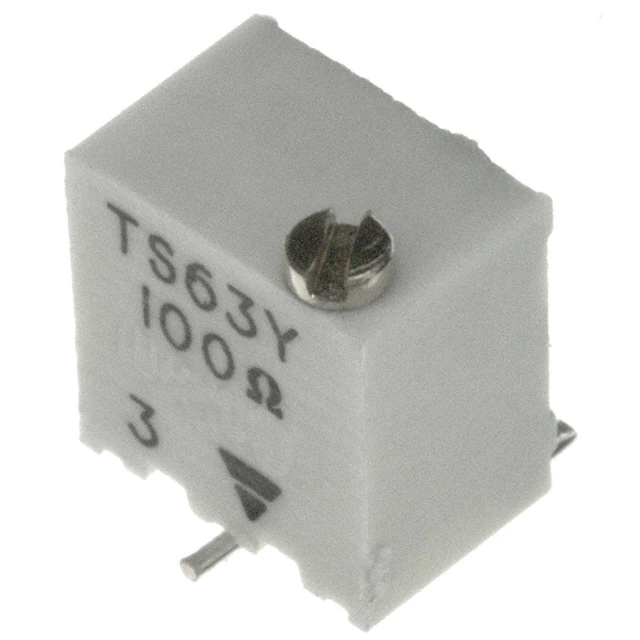

TS63Y101KR10TRIMMER 100 OHM 0.25W GW TOP ADJ |
0 |
|
Datasheet |
TS63 | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
M43P105KB40TRIMMER 1M OHM 0.16W PC PIN SIDE |
21 |
|
Datasheet |
43 | Box | Active | 1 MOhms | 0.16W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
3339H-1-101LFTRIMMER 100 OHM 0.5W PC PIN TOP |
25 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 100 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.300" Dia (7.62mm) |
|
|
3339H-1-503LFTRIMMER 50K OHM 0.5W PC PIN TOP |
24 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.300" Dia (7.62mm) |
|
|
3339H-1-104LFTRIMMER 100K OHM 0.5W PC PIN TOP |
16 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.300" Dia (7.62mm) |
|
78PR500LFTRIMMER 500 OHM 1W PC PIN SIDE |
23 |
|
Datasheet |
78 | Bulk | Active | 500 Ohms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 1.250" x 0.195" Face (31.75mm x 4.95mm) |
|
3006P-1-501ZLFTRIMMER 500OHM 0.75W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 500 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
TSM4YL103KB25TRIMMER 10K OHM 0.25W J LEAD TOP |
24 |
|
Datasheet |
TSM4 | Box | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
3059Y-1-501LFTRIMMER 500 OHM 1W PC PIN SIDE |
0 |
|
Datasheet |
Trimpot® 3059 - Sealed | Tube | Active | 500 Ohms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|
3292L-1-103LFTRIMMER 10K OHM 0.5W WIRE LEADS |
0 |
|
Datasheet |
Trimpot® 3292 - Sealed | Bulk | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Chassis Mount | Wire Leads | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|
3345P-1-103TRIMMER 10K OHM 1W PC PIN TOP |
0 |
|
Datasheet |
Trimpot® 3345 - Sealed | Bulk | Active | 10 kOhms | 1W | ±5% | ±50ppm/°C | 1.0 | Top Adjustment | Wirewound | Through Hole | PC Pins | Round - 0.450" Dia (11.43mm) |
|
|
3345P-1-503TRIMMER 50K OHM 1W PC PIN TOP |
0 |
|
Datasheet |
Trimpot® 3345 - Sealed | Bulk | Active | 50 kOhms | 1W | ±5% | ±50ppm/°C | 1.0 | Top Adjustment | Wirewound | Through Hole | PC Pins | Round - 0.450" Dia (11.43mm) |
|
Y0069500R000J9LTRIMMER 500 OHM 0.25W PC PIN TOP |
0 |
|
Datasheet |
Accutrim™1260W | Bulk | Active | 500 Ohms | 0.25W, 1/4W | ±5% | ±10ppm/°C | 21.0 | Top Adjustment | Metal Foil | Through Hole | PC Pins | Rectangular - 0.375" x 0.170" Face (9.53mm x 4.32mm) |
|
36WR10KLFTRIMMER 10K OHM 0.3W PC PIN SIDE |
0 |
|
Datasheet |
36 | Bulk | Active | 10 kOhms | 0.3W | ±20% | ±250ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
36PR100KLFTRIMMER 100K OHM 0.3W PC PIN TOP |
0 |
|
Datasheet |
36 | Bulk | Active | 100 kOhms | 0.3W | ±20% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
N6S25T0N-504TRIMMER 500KOHM 0.1W PC PIN SIDE |
10 |
|
Datasheet |
N6 | - | Active | 500 kOhms | 0.1W, 1/10W | ±30% | ±300ppm/°C | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.343" x 0.252" Face (8.70mm x 6.40mm) |
Trimmer Potentiometers Electronic Components
Explore Trimmer Potentiometers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
