Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3269X-1-202LFTRIMMER 2K OHM 0.25W GW SIDE ADJ |
29 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269X-1-503LFTRIMMER 50K OHM 0.25W GW SIDE |
27 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
3299P-1-502TRIMMER 5K OHM 0.5W PC PIN SIDE |
80 |
|
Datasheet |
Trimpot® 3299 - Sealed | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.240" x 0.375" Face (6.10mm x 9.53mm) |
|
M43P500KB40TRIMMER 50 OHM 0.75W PC PIN SIDE |
36 |
|
Datasheet |
43 | Box | Active | 50 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
3339P-1-204LFTRIMMER 200K OHM 0.5W PC PIN TOP |
100 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 200 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.300" Dia (7.62mm) |
|
3339H-1-504LFTRIMMER 500K OHM 0.5W PC PIN TOP |
91 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.300" Dia (7.62mm) |
|
|
3339H-1-204LFTRIMMER 200K OHM 0.5W PC PIN TOP |
39 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 200 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.300" Dia (7.62mm) |
|
3266X-1-502TRIMMER 5K OHM 0.25W PC PIN SIDE |
90 |
|
Datasheet |
Trimpot® 3266 - Sealed | Tube | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3266X-1-102TRIMMER 1K OHM 0.25W PC PIN SIDE |
27 |
|
Datasheet |
Trimpot® 3266 - Sealed | Tube | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
3339W-1-503LFTRIMMER 50K OHM 0.5W PC PIN SIDE |
45 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.320" Face (9.53mm x 8.13mm) |
|

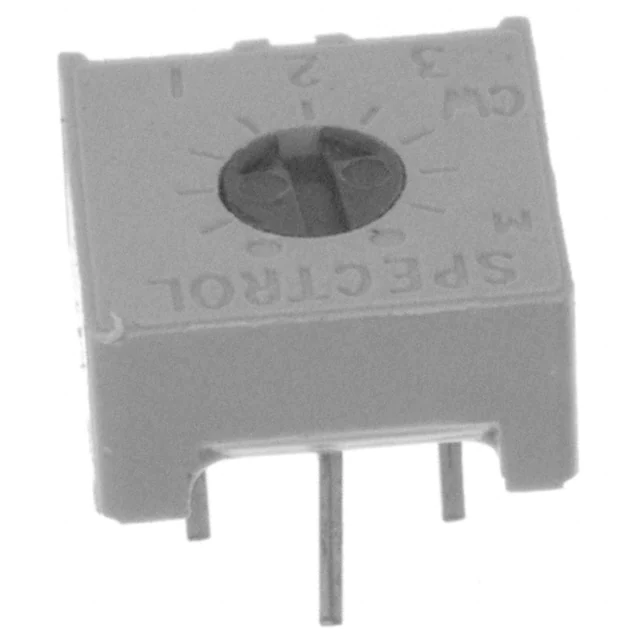

M63P502KB40TRIMMER 5K OHM 0.5W PC PIN SIDE |
55 |
|
Datasheet |
63 | Bulk | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|

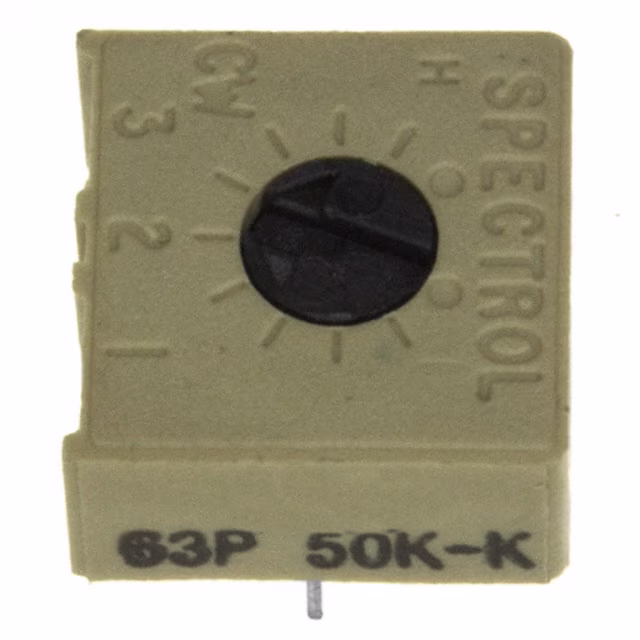

M63P503KB40TRIMMER 50K OHM 0.5W PC PIN SIDE |
39 |
|
Datasheet |
63 | Bulk | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
3269W-1-202TRIMMER 2K OHM 0.25W GW TOP ADJ |
100 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-102TRIMMER 1K OHM 0.25W GW TOP ADJ |
99 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-201TRIMMER 200 OHM 0.25W GW TOP ADJ |
54 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 200 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-101TRIMMER 100 OHM 0.25W GW TOP ADJ |
43 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
3339S-1-502LFTRIMMER 5K OHM 0.5W PC PIN SIDE |
93 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.320" Face (9.53mm x 8.13mm) |
|
|
3339W-1-501LFTRIMMER 500 OHM 0.5W PC PIN SIDE |
80 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 500 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.320" Face (9.53mm x 8.13mm) |
|
3059Y-1-500LFTRIMMER 50 OHM 1W PC PIN SIDE |
18 |
|
Datasheet |
Trimpot® 3059 - Sealed | Tube | Active | 50 Ohms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|
3059P-1-503LFTRIMMER 50K OHM 1W PC PIN SIDE |
39 |
|
Datasheet |
Trimpot® 3059 - Sealed | Tube | Active | 50 kOhms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
