Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3290H-1-103TRIMMER 10K OHM 1W PC PIN SIDE |
17 |
|
Datasheet |
Trimpot® 3290 - Sealed | Tube | Active | 10 kOhms | 1W | ±5% | ±50ppm/°C | 25.0 | Side Adjustment | Wirewound | Through Hole | PC Pins | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|
3260H-1-203TRIMMER 20KOHM 0.25W PC PIN SIDE |
81 |
|
Datasheet |
Trimpot® 3260 - Sealed | Tube | Active | 20 kOhms | 0.25W, 1/4W | ±5% | ±70ppm/°C | 11.0 | Side Adjustment | Wirewound | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3260H-1-103TRIMMER 10KOHM 0.25W PC PIN SIDE |
73 |
|
Datasheet |
Trimpot® 3260 - Sealed | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±5% | ±70ppm/°C | 11.0 | Side Adjustment | Wirewound | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3260H-1-102TRIMMER 1K OHM 0.25W PC PIN SIDE |
52 |
|
Datasheet |
Trimpot® 3260 - Sealed | Tube | Active | 1 kOhms | 0.25W, 1/4W | ±5% | ±70ppm/°C | 11.0 | Side Adjustment | Wirewound | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
3057L-1-103TRIMMER 10K OHM 1W WIRE LEADS |
16 |
|
Datasheet |
Trimpot® 3057 - Sealed | Bulk | Active | 10 kOhms | 1W | ±5% | ±50ppm/°C | 22.0 | Side Adjustment | Wirewound | Chassis Mount | Wire Leads | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|
PTN06-D50HB20-HTRIMMER 50K OHM 0.15W PC PIN TOP |
1,000 |
|
Datasheet |
PTN06 | Bag | Active | 50 kOhms | 0.15W | ±20% | - | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.248" Dia (6.30mm) |
|
|
PTN15-E25NB20TRIMMER 25K OHM 0.2W PC PIN TOP |
997 |
|
Datasheet |
PTN15 | Bag | Active | 25 kOhms | 0.2W, 1/5W | ±20% | - | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.591" Dia (15.00mm) |
|
|
PTN06-D100CC20TRIMMER 100KOHM 0.15W PC PIN TOP |
974 |
|
Datasheet |
PTN06 | Bag | Active | 100 kOhms | 0.15W | ±20% | - | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.248" Dia (6.30mm) |
|
|
PTN06-D10HB20TRIMMER 10K OHM 0.15W PC PIN TOP |
964 |
|
Datasheet |
PTN06 | Bag | Active | 10 kOhms | 0.15W | ±20% | - | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.248" Dia (6.30mm) |
|
|
PTN06-E500CB20-HTRIMMER 500KOHM 0.15W PC PIN TOP |
940 |
|
Datasheet |
PTN06 | Bag | Active | 500 kOhms | 0.15W | ±20% | - | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.248" Dia (6.30mm) |
|
PT10MH01-223A2020-STRIMMER 22KOHM 0.15W PC PIN SIDE |
604 |
|
Datasheet |
PT10 | Bulk | Active | 22 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
PT10MV10-204A2020-STRIMMER 200KOHM 0.15W PC PIN TOP |
545 |
|
Datasheet |
PT10 | Bulk | Active | 200 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
PT10MV10-223A2020-STRIMMER 22K OHM 0.15W PC PIN TOP |
47 |
|
Datasheet |
PT10 | Bulk | Active | 22 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
PT6KH-203A2020TRIMMER 20K OHM 0.1W PC PIN SIDE |
966 |
|
Datasheet |
PT-6 | Bulk | Active | 20 kOhms | 0.1W, 1/10W | ±20% | ±300ppm/°C | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | - |
|

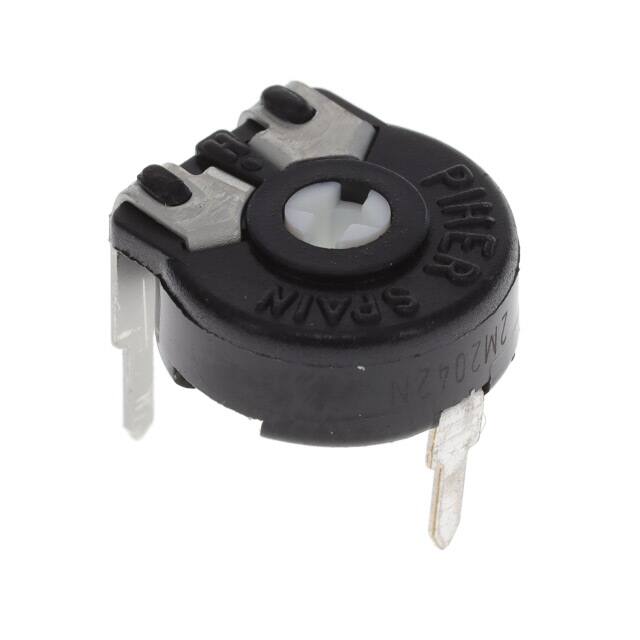

PT10LV10-225A3030-STRIMMER 2.2MOHM 0.15W PC PIN TOP |
850 |
|
Datasheet |
PT10 | Bulk | Active | 2.2 MOhms | 0.15W | ±30% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
|
PTN06-B20CC20-HTRIMMER 20KOHM 0.15W PC PIN SIDE |
1,000 |
|
Datasheet |
PTN06 | Bag | Active | 20 kOhms | 0.15W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.248" Dia (6.30mm) |
|
|
PTN06-B500HC20TRIMMER 500K OHM 0.15W PC PIN |
1,000 |
|
Datasheet |
PTN06 | Bag | Active | 500 kOhms | 0.15W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.248" Dia (6.30mm) |
|
|
PTN06-B11HC20-HTRIMMER 1M OHM 0.15W PC PIN SIDE |
1,000 |
|
Datasheet |
PTN06 | Bag | Active | 1 MOhms | 0.15W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.248" Dia (6.30mm) |
|
|
PTN06-B500HB20-HTRIMMER 500K OHM 0.15W PC PIN |
1,000 |
|
Datasheet |
PTN06 | Bag | Active | 500 kOhms | 0.15W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.248" Dia (6.30mm) |
|
|
PTN06-B20CC20TRIMMER 20KOHM 0.15W PC PIN SIDE |
1,000 |
|
Datasheet |
PTN06 | Bag | Active | 20 kOhms | 0.15W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.248" Dia (6.30mm) |
