Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT10WV10-104A2020-1-CRPM-STRIMMER 100KOHM 0.15W PC PIN TOP |
1,468 |
|
Datasheet |
PT10 | Bulk | Active | 100 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
PT10WV10-103A2020-3-NE-STRIMMER 10K OHM 0.15W PC PIN TOP |
1,353 |
|
Datasheet |
PT10 | Bulk | Active | 10 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
3204X504PTRIMMER 500K OHM 0.1W J LEAD TOP |
0 |
|
Datasheet |
3204, Citec | Tape & Reel (TR) | Obsolete | 500 kOhms | 0.1W, 1/10W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) |
|
PT15NV15-105A2020-I-STRIMMER 1M OHM 0.25W PC PIN TOP |
5,200 |
|
Datasheet |
PT15 | Bulk | Active | 1 MOhms | 0.25W, 1/4W | ±20% | - | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.591" Dia (15.00mm) |
|
|
PT15NH05-225A3030-I-PM-STRIMMER 2.2M OHM 0.25W PC PIN |
5,173 |
|
Datasheet |
PT15 | Bulk | Active | 2.2 MOhms | 0.25W, 1/4W | ±30% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.591" Dia (15.00mm) |
|
PT15LV15-202A2020TRIMMER 2K OHM 0.25W PC PIN TOP |
319 |
|
- |
PT-15 | Bulk | Active | 2 kOhms | 0.25W, 1/4W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.591" Dia (15.00mm) |
|
PT10WV10-103A2020-9-NEPM-STRIMMER 10K OHM 0.15W PC PIN TOP |
206 |
|
Datasheet |
PT10 | Bulk | Active | 10 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
PS15RV60-472A3030TRIMMER 4.7KOHM 0.25W J LEAD TOP |
1,978 |
|
Datasheet |
PS15 | Tape & Reel (TR) | Active | 4.7 kOhms | 0.25W, 1/4W | ±30% | ±1000ppm/°C | 1.0 | Top Adjustment | Carbon | Surface Mount | J Lead | Round - 0.591" Dia (15.00mm) |
|
PS15NV60-473A3030TRIMMER 47K OHM 0.25W J LEAD TOP |
1,970 |
|
Datasheet |
PS15 | Tape & Reel (TR) | Active | 47 kOhms | 0.25W, 1/4W | ±30% | ±1000ppm/°C | 1.0 | Top Adjustment | Carbon | Surface Mount | J Lead | Round - 0.591" Dia (15.00mm) |
|
PS15NV60-253A3030TRIMMER 25K OHM 0.25W J LEAD TOP |
1,879 |
|
Datasheet |
PS15 | Tape & Reel (TR) | Active | 25 kOhms | 0.25W, 1/4W | ±30% | ±1000ppm/°C | 1.0 | Top Adjustment | Carbon | Surface Mount | J Lead | Round - 0.591" Dia (15.00mm) |
|
PT15WH06-503A2020-1-NE-STRIMMER 50KOHM 0.25W PC PIN SIDE |
1,952 |
|
Datasheet |
PT15 | Bulk | Active | 50 kOhms | 0.25W, 1/4W | ±20% | ±300ppm/°C | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.591" Dia (15.00mm) |
|
|
3213X102MTRIMMER 1K OHM 0.125W J LEAD TOP |
0 |
|
Datasheet |
3213, Citec | Tape & Reel (TR) | Obsolete | 1 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Square - 0.134" x 0.134" Face (3.40mm x 3.40mm) |
|
PT15WV18-472A2020-2-NE-STRIMMER 4.7KOHM 0.25W PC PIN TOP |
1,994 |
|
Datasheet |
PT15 | Bulk | Active | 4.7 kOhms | 0.25W, 1/4W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.591" Dia (15.00mm) |
|
PT15WH06-103A2020-7-CR-STRIMMER 10KOHM 0.25W PC PIN SIDE |
1,923 |
|
Datasheet |
PT15 | Bulk | Active | 10 kOhms | 0.25W, 1/4W | ±20% | ±300ppm/°C | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.591" Dia (15.00mm) |
|

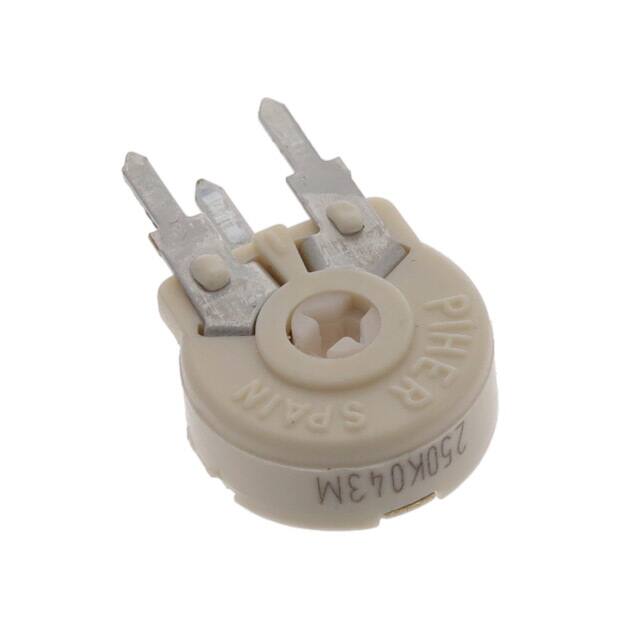

PTC10LH01-254A2020TRIMMER 250K OHM 0.33W PC PIN |
1,464 |
|
Datasheet |
PTC-10 | Bulk | Active | 250 kOhms | 0.33W | ±20% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|

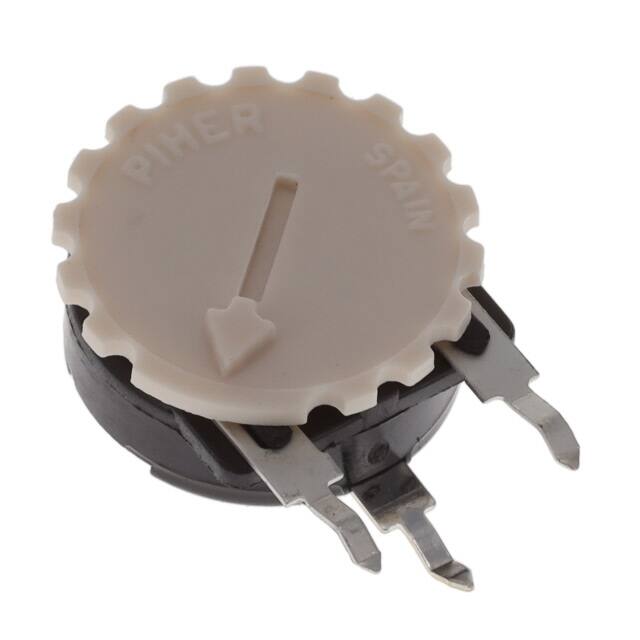

PT15YH06-152A2020-4-CR-STRIMMER 1.5K OHM 0.25W PC PIN |
1,937 |
|
Datasheet |
PT15 | Bulk | Active | 1.5 kOhms | 0.25W, 1/4W | ±20% | ±300ppm/°C | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.591" Dia (15.00mm) |
|
SMUB201PETTRIMMER 200 OHM 0.25W GW TOP ADJ |
436 |
|
Datasheet |
SMU | Tape & Reel (TR) | Obsolete | 200 Ohms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) |
|
|
SMUB504PETTRIMMER 500K OHM 0.25W GW TOP |
429 |
|
Datasheet |
SMU | Tape & Reel (TR) | Obsolete | 500 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) |
|
|
SMUB204PETTRIMMER 200K OHM 0.25W GW TOP |
361 |
|
Datasheet |
SMU | Tape & Reel (TR) | Obsolete | 200 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) |
|
3203X504PTRIMMER 500KOHM 0.05W J LEAD TOP |
0 |
|
Datasheet |
3203, Citec | Tape & Reel (TR) | Obsolete | 500 kOhms | 0.05W, 1/20W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Square - 0.134" x 0.134" Face (3.40mm x 3.40mm) |
