Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T63YA502KT20TRIMMER 5K OHM 0.25W PC PIN TOP |
475 |
|
Datasheet |
T63 | Tube | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YA102KT20TRIMMER 1K OHM 0.25W PC PIN TOP |
418 |
|
Datasheet |
T63 | Tube | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
3329H-1-101TRIMMER 100 OHM 0.5W PC PIN TOP |
200 |
|
Datasheet |
Trimpot® 3329 - Sealed | Tube | Active | 100 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.250" Dia (6.35mm) |
|
|
3329H-1-104TRIMMER 100K OHM 0.5W PC PIN TOP |
200 |
|
Datasheet |
Trimpot® 3329 - Sealed | Tube | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.250" Dia (6.35mm) |
|
|
TM-7ES105TRIMMER 1M OHM 0.5W PC PIN SIDE |
200 |
|
Datasheet |
TM-7 | Bulk | Active | 1 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 3.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.323" x 0.283" Face (8.20mm x 7.20mm) |
|
|
3329H-1-100TRIMMER 10 OHM 0.5W PC PIN TOP |
200 |
|
Datasheet |
Trimpot® 3329 - Sealed | Tube | Active | 10 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.250" Dia (6.35mm) |
|
3329P-1-202TRIMMER 2K OHM 0.5W PC PIN TOP |
198 |
|
Datasheet |
Trimpot® 3329 - Sealed | Tube | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.250" Dia (6.35mm) |
|
|
3329H-1-501TRIMMER 500 OHM 0.5W PC PIN TOP |
194 |
|
Datasheet |
Trimpot® 3329 - Sealed | Tube | Active | 500 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.250" Dia (6.35mm) |
|
|
3329P-1-504TRIMMER 500K OHM 0.5W PC PIN TOP |
188 |
|
Datasheet |
Trimpot® 3329 - Sealed | Tube | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.250" Dia (6.35mm) |
|
|
3329P-1-253TRIMMER 25K OHM 0.5W PC PIN TOP |
119 |
|
Datasheet |
Trimpot® 3329 - Sealed | Tube | Active | 25 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.250" Dia (6.35mm) |
|
3223W-1-201TRIMMER 200OHM 0.125W J LEAD TOP |
194 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tube | Active | 200 Ohms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
|
3223W-1-105TRIMMER 1M OHM 0.125W J LEAD TOP |
173 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tube | Active | 1 MOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|

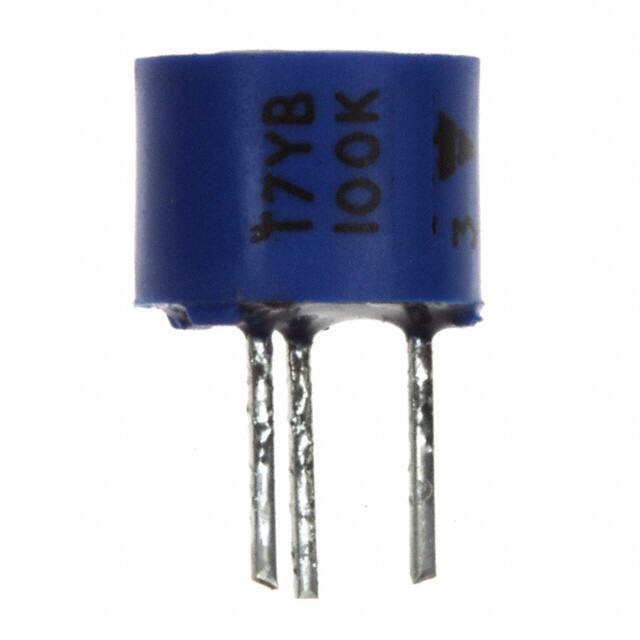

T7YB104MB40TRIMMER 100K OHM 0.5W PC PIN TOP |
200 |
|
Datasheet |
T7 | Bulk | Active | 100 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
T7YA474MB40TRIMMER 470K OHM 0.5W PC PIN TOP |
198 |
|
Datasheet |
T7 | Bulk | Active | 470 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
3009P-1-104TRIMMER 100K OHM 0.75W PC PIN |
288 |
|
Datasheet |
Trimpot® 3009 - Sealed | Tube | Active | 100 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm) |
|
|
3009P-1-502TRIMMER 5K OHM 0.75W PC PIN SIDE |
283 |
|
Datasheet |
Trimpot® 3009 - Sealed | Tube | Active | 5 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm) |
|
3224W-1-101GTRIMMER 100 OHM 0.25W J LEAD TOP |
1,990 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
3224X-1-253ETRIMMER 25K OHM 0.25W GW TOP ADJ |
1,662 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 25 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
3224W-1-105GTRIMMER 1M OHM 0.25W J LEAD TOP |
979 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 1 MOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
3224W-1-501GTRIMMER 500 OHM 0.25W J LEAD TOP |
899 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
