TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ4512-01FTVS DEVICE HIGH VOLTAGE 1-CH 12V |
3,000 |
|
Datasheet |
2-UDFN | - | Strip | Active | Zener | 1 | - | 12V (Max) | 13.3V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1610P2E |
|
AZ4718-01FTVS DEVICE 1-CHANNEL 18V |
3,000 |
|
Datasheet |
3-UDFN Exposed Pad | - | Strip | Active | Zener | 1 | - | 18V (Max) | 20V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN2020P3E |
|
AZ4612-01LTVS DEVICE HIGH VOLTAGE 1-CH 12V |
3,000 |
|
Datasheet |
SC-76, SOD-323 | - | Strip | Active | Zener | - | 1 | 12V (Max) | 13.5V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-323 |
|

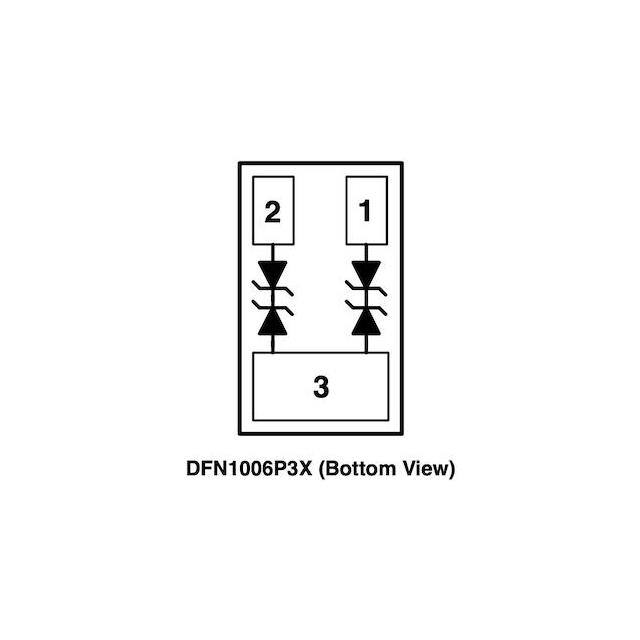

AZ5125-02FTVS DEVICE 2-CHANNEL 5V |
3,000 |
|
Datasheet |
3-UDFN | - | Strip | Active | Zener | - | 2 | 5V (Max) | 5.7V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P3X |
|
AZ4712-01FTVS DEVICE 1-CHANNEL 12V |
3,000 |
|
Datasheet |
3-UDFN Exposed Pad | - | Strip | Active | Zener | 1 | - | 12V (Max) | 13.3V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN2020P3E |
|
AZ2215-01LTVS DEVICE LOW SPEED 1-CH 5V |
3,000 |
|
Datasheet |
SC-76, SOD-323 | - | Strip | Active | Zener | 1 | - | 5V (Max) | 6.1V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-323 |
|

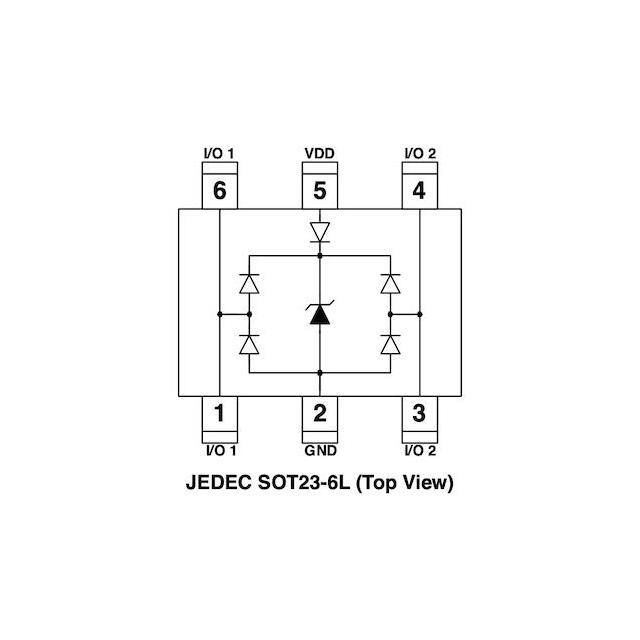

AZC299-02SLOW CAP ESD PROTECTION 2-CH 5V |
3,000 |
|
Datasheet |
SOT-23-6 | - | Strip | Active | Zener | 2 | - | 5V (Max) | 6V | - | - | - | No | USB | - | -40°C ~ 125°C (TC) | - | - | Surface Mount | SOT-23-6 |
|

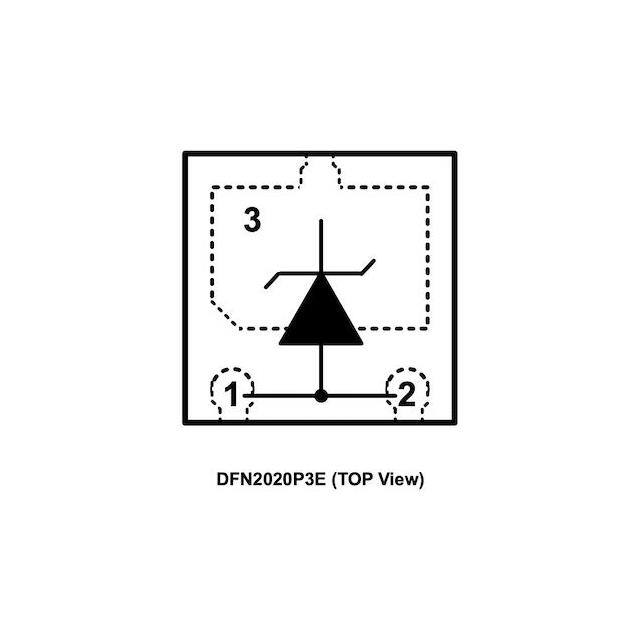

AZ4714-01FTVS DEVICE 1-CHANNEL 14V |
3,000 |
|
Datasheet |
3-UDFN Exposed Pad | - | Strip | Active | Zener | 1 | - | 14V (Max) | 15.5V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN2020P3E |
|
AZ5123-02FTVS DEVICE 2-CHANNEL 3.3V |
3,000 |
|
Datasheet |
3-UDFN | - | Strip | Active | Zener | - | 2 | 3.3V (Max) | 3.8V | - | - | - | No | General | - | -40°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P3X |
|
AZ4036-01GTVS DEVICE HIGH VOLTAGE 1-CH 36V |
3,000 |
|
Datasheet |
SOD-123 | - | Strip | Active | Zener | 1 | - | 36V (Max) | 40V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-123 |
|
AZ4715-01FTVS DEVICE 1-CHANNEL 15V |
3,000 |
|
Datasheet |
3-UDFN Exposed Pad | - | Strip | Active | Zener | 1 | - | 15V (Max) | 16.5V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN2020P3E |
|
AZ4020-01GTVS DEVICE HIGH VOLTAGE 1-CH 20V |
3,000 |
|
Datasheet |
SOD-123 | - | Strip | Active | Zener | 1 | - | 20V (Max) | 22.2V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-123 |
|
AZ5123-02STVS DEVICE 2-CHANNEL 3.3V |
3,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Strip | Active | Zener | - | 2 | 3.3V (Max) | 4V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOT23-3L |
|

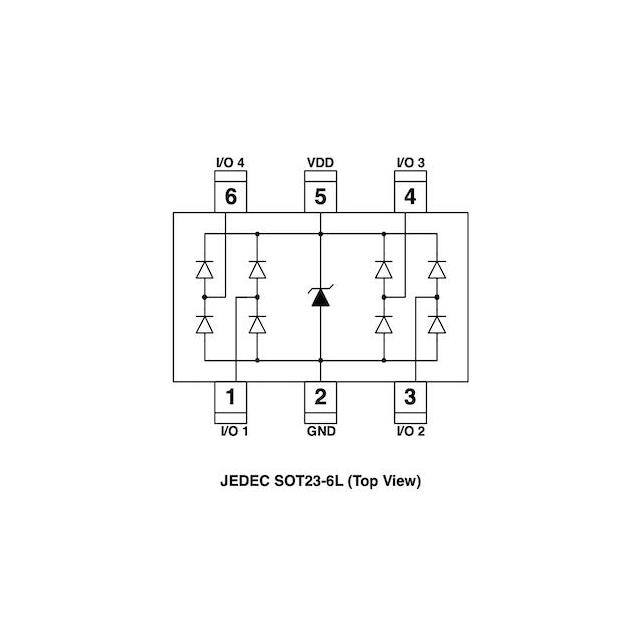

AZC399-04SLOW CAP ESD PROTECTION 4-CH 5V |
3,000 |
|
Datasheet |
SOT-23-6 | - | Strip | Active | Zener | 4 | - | 5V (Max) | 6V | - | - | - | No | USB | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOT-23-6 |
|
AZ9305-01GTVS DEVICE SOD123 1-CH 5V |
3,000 |
|
Datasheet |
SOD-123 | - | Strip | Active | Zener | 1 | - | 5V (Max) | 6V | - | - | - | Yes | - | - | -55°C ~ 125°C (TC) | Automotive | AEC-Q101 | Surface Mount | SOD-123 |
|
AZ4536-01FTVS DEVICE HIGH VOLTAGE 1-CH 36V |
3,000 |
|
Datasheet |
2-UDFN | - | Strip | Active | Zener | 1 | - | 36V (Max) | 40V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1610P2E |
|
AZ5925-01HTVS DEVICE 1-CHANNEL 5V |
3,000 |
|
Datasheet |
SC-79, SOD-523 | - | Strip | Active | Zener | - | 1 | 5V (Max) | 5.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-523 |
|
AZ4624-01LTVS DEVICE 1-CHANNEL 24V |
3,000 |
|
Datasheet |
SC-76, SOD-323 | - | Strip | Active | Zener | - | 1 | 24V (Max) | 26.5V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-323 |
|
AZ4724-01FTVS DEVICE 1-CHANNEL 24V |
3,000 |
|
Datasheet |
3-UDFN Exposed Pad | - | Strip | Active | Zener | 1 | - | 24V (Max) | 25.5V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN2020P3E |
|
SMB15J48CA-ATVS 1500W DIODE 48VWM Bi-Dir DO- |
3,000 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 19.38A | 1500W (1.5kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
