TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLD6S36AHTVS DIODE 36VWM 58.1VC DO218AB |
1,500 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 79A | 3600W (3.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
TLD6S24AHTVS DIODE 24VWM 38.9VC DO218AB |
1,450 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 118A | 3600W (3.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
SM8S30A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
1,200 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 136A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
SM8S26A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
590 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 157A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
SM8S22A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
505 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 186A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
20KPA44CA44V, 20000W,P-600, TRANSIENT VOL |
279 |
|
Datasheet |
P600, Axial | 20KPA | Cut Tape (CT) | Active | Zener | - | 1 | 44V | 49.1V | 72.7V | 277.9A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | P600 |
|
|
SM8S20A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
196 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 204A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
SLD6S30ATVS DIODE 30VWM 48.4VC SMTO-263 |
383 |
|
Datasheet |
Nonstandard SMD | SLD6S | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 95A | 1800W (1.8kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
|
SM8S48A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
251 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 80.6V | 82A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
5.0SMDJ30AHM6GTVS DIODE 30VWM 48.4VC DO214AB |
6,000 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ16AHM6GTVS DIODE 16VWM 26VC DO214AB |
779 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 193A | 5000W (5kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
15KPA24ATVS DIODE 24VWM 40.7VC P600 |
223 |
|
Datasheet |
P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.81V | 40.7V | 371A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
TLD8S10AHTVS DIODE 10VWM 17VC DO218AB |
1,475 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 388A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
TLD8S14AHTVS DIODE 14VWM 23.2VC DO218AB |
1,450 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 284A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
TLD8S12AHTVS DIODE 12VWM 19.9VC DO218AB |
1,304 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 332A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
SMDA05C/TR7TVS DIODE 5VWM 11VC 8-SO |
108 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 4 | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SM8S36A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
783 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 114A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
5KP210ATVS DIODE 210VWM 349.5VC P600 |
800 |
|
Datasheet |
P600, Axial | 5KP | Tape & Reel (TR) | Active | Zener | 1 | - | 210V | 233V | 349.5V | 14.6A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
xxVL.JPG)
|

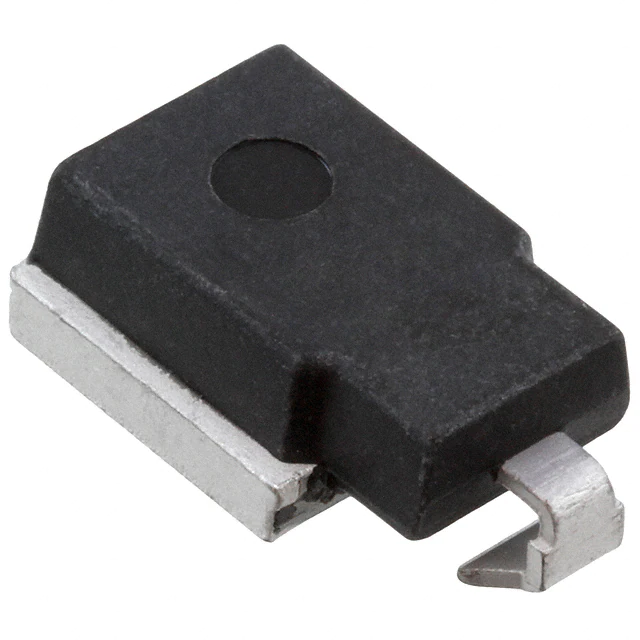

SZ-10NN27VLDIODE ZENER 27V 6W SZ10 |
286 |
|
Datasheet |
DO-218AB | SZ-10N | Tape & Reel (TR) | Active | Zener | 1 | - | 22V (Max) | 24V | - | - | - | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SZ-10 |
|
|
15KPA30ATVS, UNI-DIR, 15000W, 30V, P600 |
224 |
|
Datasheet |
P600, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 30V | 33.51V | 50.7V | 297.8A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | P-600 |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
