TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCLAMP2402B.TCTTVS DIODE 24VWM 55VC SC75 |
3,252 |
|
Datasheet |
SC-75, SOT-416 | RailClamp® | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 2 | - | 24V (Max) | 26.7V | 55V | 4A (8/20µs) | 200W | No | HDMI | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-75 (SOT523) |
|
3.0SMCJ28A-AU_R2_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
2,990 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 66A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
AOZ8318DITVS DIODE 2.5VWM 5VC 10DFN |
7,636 |
|
Datasheet |
10-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 2.5V (Max) | 2.8V | 5V | 25A (8/20µs) | 350W | Yes | Ethernet, Telecom | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (2.6x2.6) |
|
PSM712-LF-T7SOT23-3 |
4,885 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | UMW | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max), 7V (Max) | 13.3V, 7.5V | 25V, 15V | 7A (8/20µs) | 150W | No | General Purpose | 45pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
ATV30C400J-HFTVS DIODE 40VWM 64.5VC DO214AB |
2,990 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 46.51A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
TPSMC170ATVS 1.5KW 170V 5%UNI DO-214AB |
2,816 |
|
Datasheet |
DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | 1 | - | 145.35V | 161.5V | 234V | 6.5A | 1500W (1.5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
ATV30C360J-HFTVS DIODE 36VWM 58.1VC DO214AB |
2,755 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 51.64A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
ATV30C240J-HFTVS DIODE 24VWM 38.9VC DO214AB |
1,690 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 77.12A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
SMC30J20CATVS DIODE 20VWM 32.4VC SMC |
2,219 |
|
Datasheet |
DO-214AB, SMC | SMC30J | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 93A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|

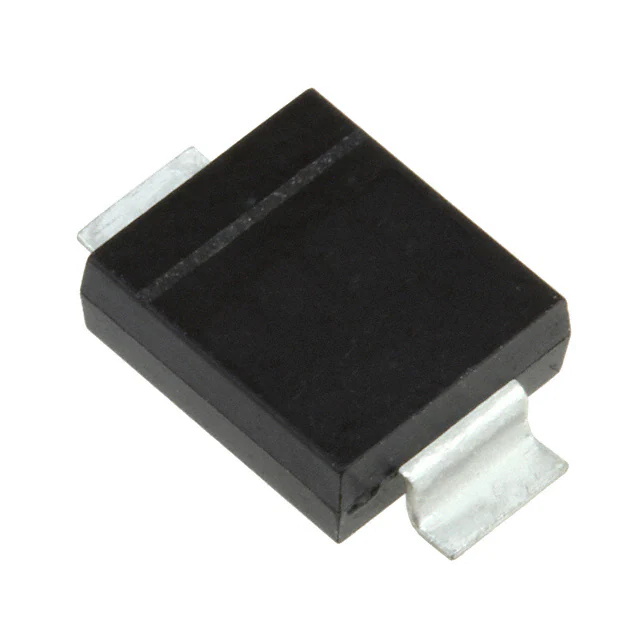

MSMCG170ATVS DIODE 170VWM 275VC SMCG |
200 |
|
Datasheet |
DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | 1 | - | 170V | 189V | 275V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MSMCG7.5ATVS DIODE 7.5VWM 12.9VC SMCG |
200 |
|
Datasheet |
DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
.jpg)
|
MSMCJ8.0CAE3TVS DIODE 8VWM 13.6VC DO214AB |
200 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 110.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|
|
MSMCG10ATVS DIODE 10VWM 17VC SMCG |
180 |
|
Datasheet |
DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | 1 | - | 10V | 11.1V | 17V | 88.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MSMCJ17CATVS DIODE 17VWM 27.6VC DO214AB |
170 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 53.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|
S16C24-8TVS DIODE 24VWM 43VC 16SO |
2,429 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | S16CXX-8 | Tape & Reel (TR) | Active | Zener | - | 8 | 24V (Max) | 26.7V | 43V | 1A | 300W | No | Ethernet, Telecom | 137pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | - | Surface Mount | 16-SO |
|
|
S16C05-8TVS DIODE 5VWM 9.8VC 16SO |
1,319 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | S16CXX-8 | Tape & Reel (TR) | Active | Zener | - | 8 | 5V (Max) | 6V | 9.8V | 1A | 300W | No | Ethernet, Telecom | 440pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | - | Surface Mount | 16-SO |
|
SMCJ9.0CA-13TVS DIODE 9V 15.4V SMC |
22,652 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 2 | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ24CA-13TVS DIODE 24VWM 38.9VC SMC |
12,000 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMCJ75CA-13TVS DIODE 75V 121V SMC |
6,121 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 75V | 83.3V | 121V | 12.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMCJ160CA-13-FTVS DIODE 160V 259V SMC |
5,900 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 160V | 178V | 259V | 5.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
