TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PACDN043Y4RTVS DIODE 5.5VWM 8VC SOT143-4 |
5,848 |
|
Datasheet |
TO-253-4, TO-253AA | - | Tape & Reel (TR) | Obsolete | Zener | 3 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-143-4 |
|

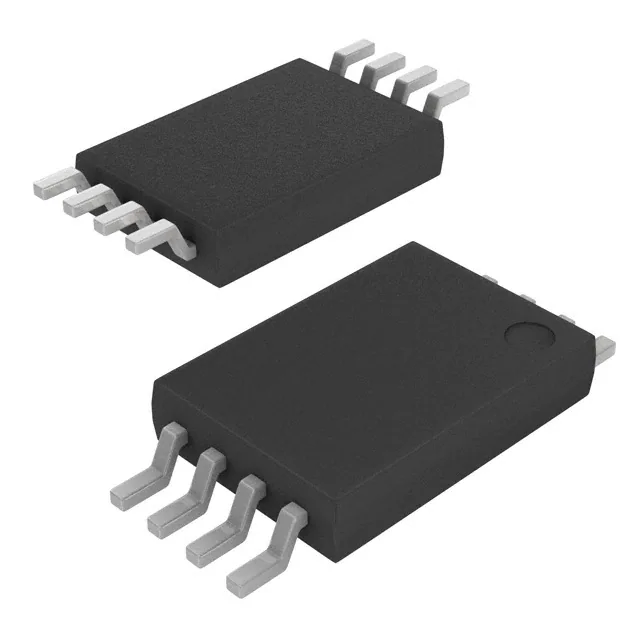

PACDN044TRTVS DIODE 5.5VWM 8VC 8-TSSOP |
9,519 |
|
Datasheet |
8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TSSOP |
|
SMCJ36CA1500W SURFACE MOUNT TRANSIENT VO |
28,662 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5KP6.5CATVS DIODE 6.5VWM 11.2VC D6 |
19,200 |
|
Datasheet |
D-6, Axial | - | Bag | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 447A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | D6 |
|
PACDN045Y6RTVS DIODE 5.5VWM 8VC SOT23-6 |
4,049 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
.jpg)
|
SZ1SMB7.5AT3GTVS DIODE 7.5VWM 12.9VC SMB |
9,708 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.5A | 600W | No | - | 1890pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMA6S15AHTVS DIODE 15VWM 24.4VC SOD128 |
9,195 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.8V | 24.4V | 24.6A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-128 |
|
RSBC6.8CST2RATVS DIODE 3.5VWM VMN2 |
6,964 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.5V | 6.62V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | VMN2 |
|
|
SMA6S18AHTVS DIODE 18VWM 29.2VC SOD128 |
6,931 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20.1V | 29.2V | 20.5A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-128 |
|
|
SMA6S36AHTVS DIODE 36VWM 58.4VC SOD128 |
6,353 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40.2V | 58.4V | 10.3A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-128 |
|
SMCJ13A1500W TRANSIENT VOLTAGE SUPPRESS |
5,392 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 69.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMA6S56AHTVS DIODE 56VWM 90.9VC SOD128 |
5,019 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 56V | 62.6V | 90.9V | 6.6A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-128 |
|
P4SMA11CATVS DIODE 9.4VWM 15.6VC DO214AC |
4,723 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 9.4V | 10.5V | 15.6V | 26.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P6KE250A_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
3,977 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 214V | 237V | 344V | 1.8A | 600W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
PE1805C4E6_R1_00001ULTRA LOW CAPACITANCE ESD PROTEC |
3,323 |
|
Datasheet |
SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 20V | 5A (8/20µs) | - | Yes | DVI, Ethernet, USB | 0.8pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
|
SMCJ15ATVS DIODE 15VWM 24.4VC SMC |
2,795 |
|
Datasheet |
DO-214AC, SMA | - | Cut Tape (CT) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 61.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMA6L14ATVS DIODE 14VWM 23.2VC DO221AC |
2,790 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
SMA6L150ATVS DIODE 150VWM 243VC DO221AC |
2,688 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 1.65A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
ESD5004MXTBGTVS DIODE 3.3VWM 9.1VC 4X3DFN |
2,501 |
|
Datasheet |
4-XFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3.3V (Max) | 3.9V | 9.1V | - | - | No | General Purpose | 3.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X3DFN (0.53x0.93) |
|
P6SMB160ATVS DIODE 136VWM 219VC DO214AA |
2,460 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 136V | 152V | 219V | 2.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
