TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMC5K13AHM3_A/HTVS DIODE 13VWM 21.5VC DO214AB |
1,163 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 233A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
5KP20A-TPTVS DIODE 20VWM 32.4VC R6 |
985 |
|
Datasheet |
R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
|
5KP26A-TPTVS DIODE 26VWM 42.1VC R6 |
379 |
|
Datasheet |
R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
SLD5S16ATVS DIODE 16VWM 26VC SMTO-263 |
278 |
|
Datasheet |
Nonstandard SMD | SLD5S | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 138A | 3600W (3.6kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
|
5KP5.0A-TPTVS DIODE 5VWM 9.2VC R6 |
209 |
|
Datasheet |
R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
5.0SMDJ51ASTVS DIODE 51VWM 82.4VC DO214AB |
5,969 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJxxS | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 60.7A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ43ASTVS DIODE 43VWM 69.4VC DO214AB |
5,719 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJxxS | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 72.1A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
DM6W22AQ-13TVS DIODE 22VWM 35.5VC DO218 |
550 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 130A | 4600W (4.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218 |
|

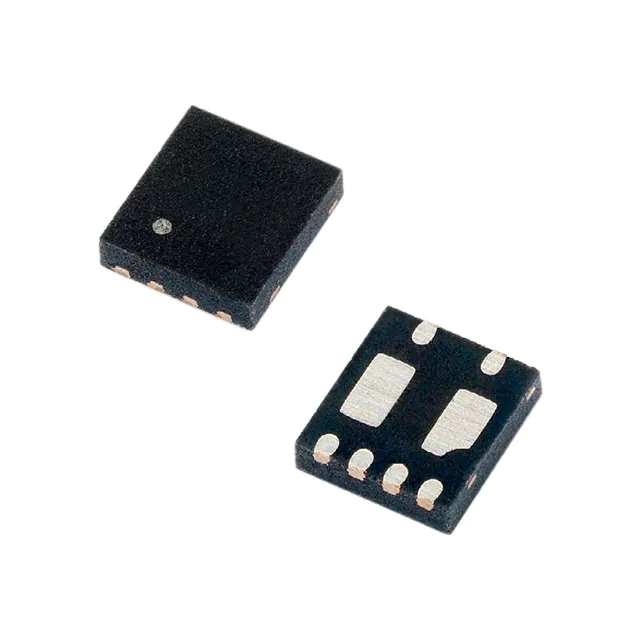

SMP1255PUTGTVS DIODE 4VWM 8.5VC 6UDFN |
2,954 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 4V (Max) | 4.5V | 8.5V | 4A (8/20µs) | - | Yes | USB OTG | 0.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-UDFN (1.8x2) |
|
ATV50C400JB-HFTVS DIODE 40VWM 64.5VC DO214AB |
1,746 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 77.5A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
5KP110A-E3/54TVS DIODE 110VWM 177VC P600 |
800 |
|
Datasheet |
P600, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 110V | 122V | 177V | 28.2A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
5KP110A-TPTVS DIODE 110VWM 177VC R6 |
500 |
|
Datasheet |
R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 110V | 122V | 177V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
5.0SMDJ40CA-T7TVS DIODE 40VWM 64.5VC DO214AB |
1,072 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 77.6A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ22CA-T7TVS DIODE 22VWM 35.5VC DO214AB |
640 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 141A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP4042-02UTGTVS DIODE 3.3VWM 22VC 10UDFN |
2,920 |
|
Datasheet |
10-UFDFN Exposed Pad | SP4042, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | 3.5V | 22V | 100A (2/10µs) | 2500W (2.5kW) | Yes | Ethernet | 11pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UDFN (2.6x2.6) |
|
SM5S28AHE3_A/ITVS DIODE 28VWM 45.4VC DO218AB |
730 |
|
Datasheet |
DO-218AB | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 79A | 3600W (3.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
BZW50-27RLTVS DIODE 27VWM 62VC R6 |
948 |
|
Datasheet |
R-6, Axial | BZW50, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 27V | 30V | 62V | 968A (8/20µs) | 5000W (5kW) | No | General Purpose | 7000pF @ 1MHz | - | - | - | Through Hole | R-6 |
|
|
BZW50-82RLTVS DIODE 82VWM 189VC R6 |
816 |
|
Datasheet |
R-6, Axial | BZW50, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 82V | 91V | 189V | 317A (8/20µs) | 5000W (5kW) | No | General Purpose | 2600pF @ 1MHz | - | - | - | Through Hole | R-6 |
|
|
BZW50-180RLTVS DIODE 180VWM 410VC R6 |
590 |
|
Datasheet |
R-6, Axial | BZW50, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 180V | 200V | 410V | 146A (8/20µs) | 5000W (5kW) | No | General Purpose | 1500pF @ 1MHz | - | - | - | Through Hole | R-6 |
|
SMDA05-6/TR7TVS DIODE 5VWM 11VC 8-SO |
413 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 6 | - | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 550pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
