TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

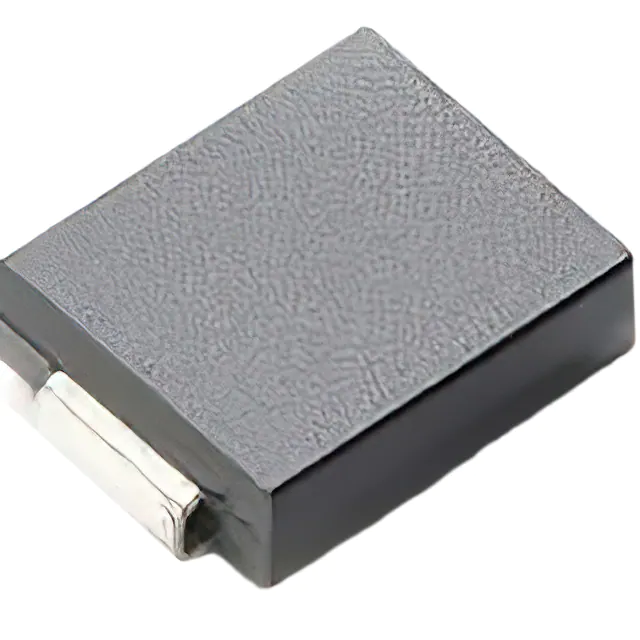

5.0SMLJ8.5CATVS DIODE UP 8.5VRWM 14.4VC |
2,719 |
|
Datasheet |
DO-214AB, SMC | 5.0SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 8.5V | 9.44V | 14.4V | 347.3A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMLJ7.0ATVS DIODE UP 7VRWM 12VC |
3,578 |
|
Datasheet |
DO-214AB, SMC | 5.0SMLJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 416.8A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
20KPA132ATVS DIODE UP 132VRWM 213VC |
7,736 |
|
Datasheet |
P600, Axial | 20KPA | Bulk | Active | Zener | 1 | - | 132V | 147.4V | 213V | 94.8A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
5.0SMDJ110CATVS DIODE UP 110VRWM 177VC |
9,943 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 110V | 122V | 177V | 28.3A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ22CATVS DIODE UP 22VRWM 35.5VC |
8,508 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 141A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
20KP80CATVS DIODE UP 80VRWM 130VC |
2,714 |
|
Datasheet |
P600, Axial | 20KP | Bulk | Active | Zener | - | 1 | 80V | 89.4V | 130V | 155.4A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
20KP68ATVS DIODE UP 68VRWM 110VC |
2,045 |
|
Datasheet |
P600, Axial | 20KP | Bulk | Active | Zener | 1 | - | 68V | 76V | 110V | 183.6A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
5.0SMDJ170ATVS DIODE UP 170VRWM 275VC |
8,083 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 18.2A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
20KPA26ATVS DIODE UP 26VRWM 44.7VC |
8,279 |
|
Datasheet |
P600, Axial | 20KPA | Bulk | Active | Zener | 1 | - | 26V | 29.04V | 44.7V | 451.9A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
20KP44CATVS DIODE UP 44VRWM 72.7VC |
7,149 |
|
Datasheet |
P600, Axial | 20KP | Bulk | Active | Zener | - | 1 | 44V | 49.1V | 72.7V | 277.9A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
20KPA96CATVS DIODE UP 96VRWM 155VC |
8,907 |
|
Datasheet |
P600, Axial | 20KPA | Bulk | Active | Zener | - | 1 | 96V | 107.2V | 155V | 130.3A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
5.0SMLJ48ATVS DIODE UP 48VRWM 77.4VC |
5,090 |
|
Datasheet |
DO-214AB, SMC | 5.0SMLJ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 64.7A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
20KP160ATVS DIODE UP 160VRWM 258VC |
4,727 |
|
Datasheet |
P600, Axial | 20KP | Bulk | Active | Zener | 1 | - | 160V | 178.7V | 258V | 78.3A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
20KPA300ATVS DIODE UP 300VC 483VC |
6,366 |
|
Datasheet |
P600, Axial | 20KPA | Bulk | Active | Zener | 1 | - | 300V | 335.1V | 483V | 41.8A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
5.0SMDJ70ATVS DIODE UP 70VRWM 113VC |
7,649 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 44.3A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
;;2.jpg)
|
5.0SMDJ54ATVS DIODE UP 54VRWM 87.1VC |
9,146 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60V | 87.1V | 57.5A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ11ATVS DIODE UP 11VRWM 18.2VC |
4,785 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 274.8A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMLJ33CATVS DIODE UP 33VRWM 53.3VC |
2,490 |
|
Datasheet |
DO-214AB, SMC | 5.0SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 93.9A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMLJ64ATVS DIODE UP 64VRWM 103VC |
4,092 |
|
Datasheet |
DO-214AB, SMC | 5.0SMLJ | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 48.6A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMLJ58CATVS DIODE UP 58VRWM 93.6VC |
2,992 |
|
Datasheet |
DO-214AB, SMC | 5.0SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 53.5A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
